Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G

Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G
Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G

Large Image :  Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6555G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable - Inquire Within
Packaging Details: 360*300*250
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G

Description
Brand: RUIDA Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis: 5 Y Axis Double Drive: Support Dual-drive Output And Have Synchronous Protection Function
Laser Channel: 1 Laser Control: Support PSO, PSV, PSP, FSP Laser Control Methods
Communication: Ethernet, USB Panel: 5” Color Screen + Keys And 7” Touch Screen Is Optional
Language: 12 Feeding: Upport Roll To Roll Cutting
Engraving: Support Cutting: Precision Cutting Of High Molecular Materials
Highlight:

CO2 Laser Cutting Machine Controller

,

5 Axis Laser Cutting Machine Controller

,

RUIDA RDC6555G

Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G
Product Description

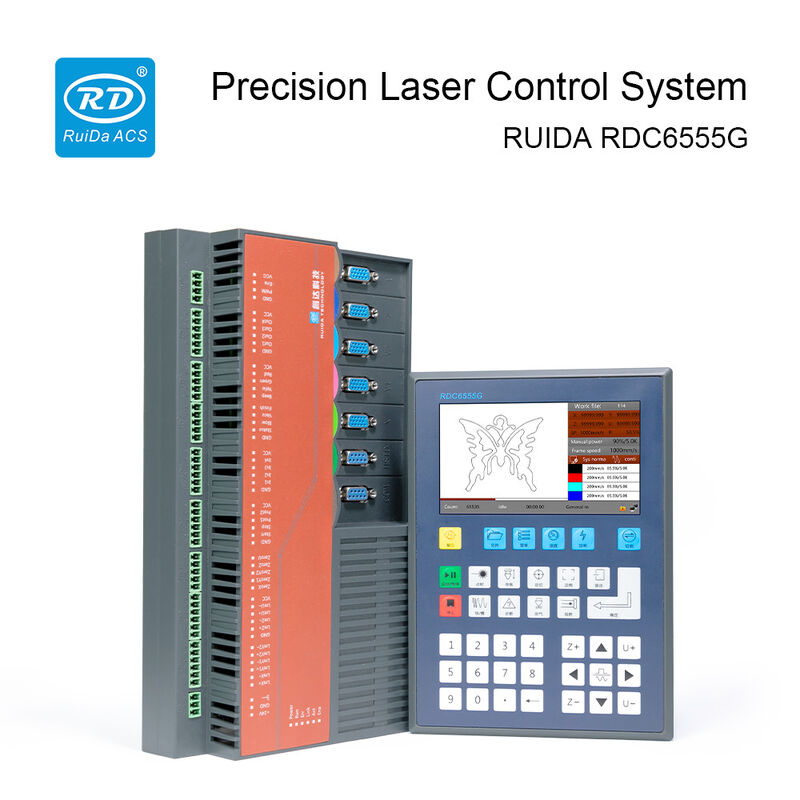

The RDC6555G precision cutting control system, independently developed by Ruida Technology, is designed for superior film cutting control. It boasts enhanced hardware stability, a wide array of motion control design schemes, and robust resistance to high voltage and electrostatic interference. This system features a user-friendly 5-inch LCD-based human-machine interface that offers intuitive operation and powerful functionality.
Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G 0
Key Product Features
  • Autonomous Dual-Drive Control: Capable of standalone operation with integrated motion control for dual drives
  • PSO Laser Control: Offers laser control with PSO (Phase-Locked Loop) function for stability
  • Advanced Laser Control Algorithm: Features high-precision algorithms for full and half-cut operations
  • Visual Positioning and Array Processing: Supports mark point visual positioning for cutting and array processing
  • Precision Cutting Applications: Ideal for precise cutting of non-metal thin films, ceramics, and high molecular weight materials
Software: LSWorks (Free)
Supports PLT, DXF, AI, DST and other file formats with display and edit functions. Includes image file import and processing capabilities.
Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G 1
Technical Parameters
Parameters RDC6555G
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive Support dual-drive output with synchronous protection function
Laser control Support PSO, PSV, PSP, FSP laser control methods
Axis 5
Laser channel 1
Communication Ethernet, USB
Panel 5" color screen + keys (7" touch screen optional)
Feeding Support roll to roll cutting
Cutting Precision cutting of high molecular materials
Encryption Supported
Onboard clock Supported
Firmware Support remote upgrade of mainboard and panel program
Software LSWorks
Language 13 languages including English, Chinese, Japanese, Russian, etc.

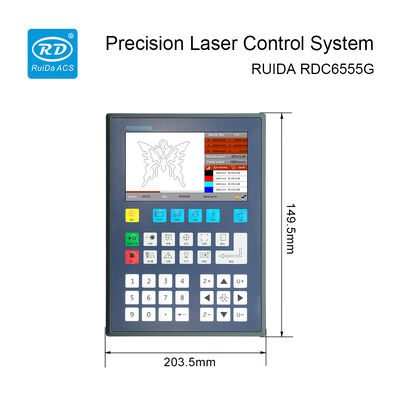

Size Panel: 202×145×42.1mm

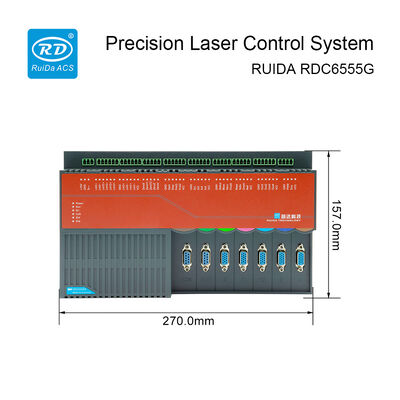

Mainboard: 270×157×55mm
Why Choose the RDC6555G
Advanced Dual-Drive Technology
Stability with PSO Function
High-Precision Cutting Capabilities
Versatility in Material Processing
Precision 5 Axis CO2 Laser Cutting Machine Controller RUIDA RDC6555G 2
