Two Channel CO2 Laser Controller Non Metal Cutting And Engraving Laser Controller

Large Image : Two Channel CO2 Laser Controller Non Metal Cutting And Engraving Laser Controller

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDC5445G

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD220/SET-USD280USD/SET
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Two Channel CO2 Laser Controller Non Metal Cutting And Engraving Laser Controller

Description

Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers	Axis:	Four
Laser Channel:	Two	Focusing:	Support Manual And Automatic
Communication:	Ethernet, USB And WIFI	Application:	Leather, Fabric. Sign, Craft Gift, Toy And 3C
Color:	Beige	Standalone Operation:	Support
U Disk Processing:	Support	Firmware:	Support The Remote Upgrade Of Mainboard And Panel Program
Highlight:	Two Channel CO2 Laser Controller , RDC6445G CO2 Laser Controller , Non Metal Engraving Laser Controller

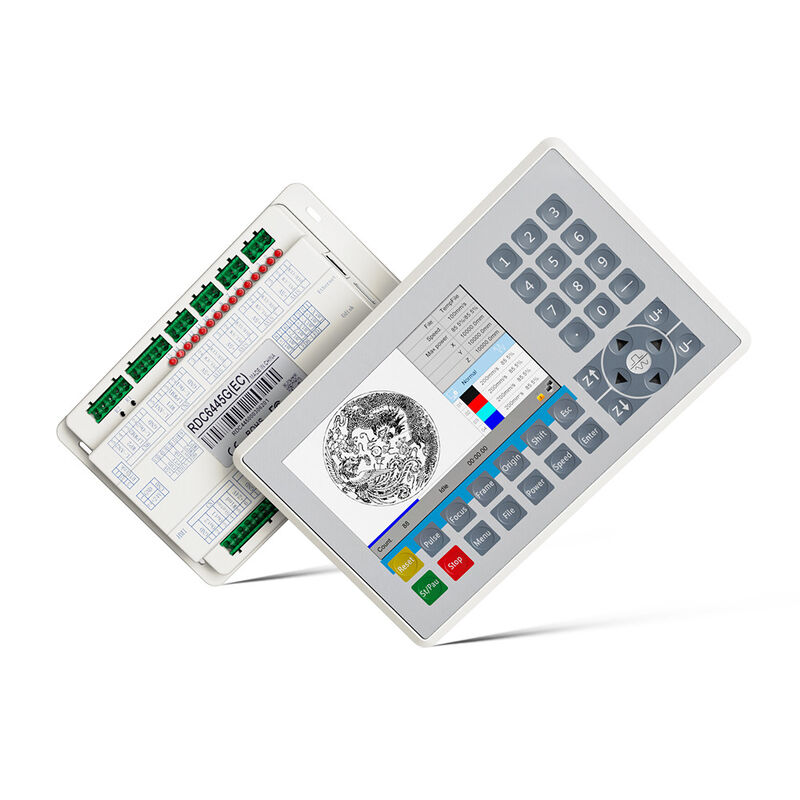

Ruida RDC6445G CO2 Laser Controller For Non-Metal Cutting And Engraving

Description Of Ruida RDC6445G CO2 Laser Controller

The RDC6445G system is the latest generation of laser cutting and engraving controller, featuring enhanced hardware stability and improved resistance to high voltage and static electricity. With a 5-inch color screen and intuitive interface, it offers versatile communication options including Ethernet, USB and WIFI. The controller supports advanced motion control, large file storage, and multiple processing options including fixed single/double laser head processing and ultra-wide segmentation cutting. Ideal for non-metal materials such as leather, fabric, signs, crafts, toys, and 3C products.

Parameter	RDC6445G
RDC5445G	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser channel	2
Double heads synchronous	Support
Communication	Ethernet, USB and WIFI
Panel	5-inch color+keys
Feeding	U axis feeding, Y and U axes feeding sychronously, sheeting feeding, large format segmentation feeding
Encryption	Support
Onboard clock	Not support
Firmware upgrade	Support the remote upgrade of mainboard and panel program
Rotary	Y or U axis rotation
Engraving function	Plane engraving, slope engraving and gray engraving
Resume processing after power failure	Support
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian and Japanese

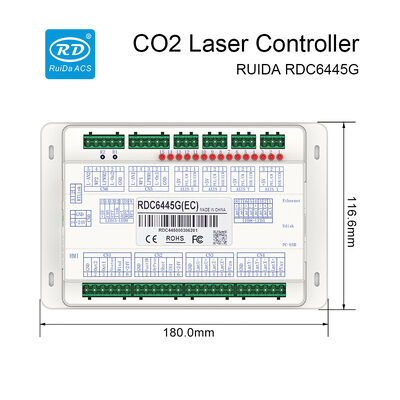

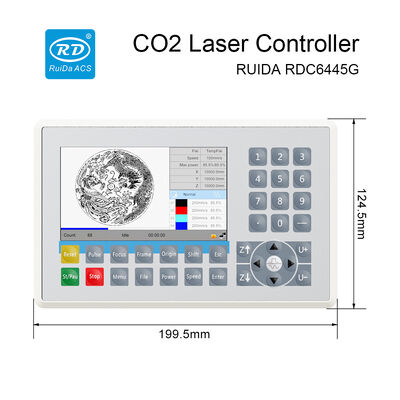

Size	Panel: L199.5mmW124.5mmH42.1mm Mainboard: L180mmW116.6mmH33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Key Functions

Support standalone operation and U disk processing
Support offline modification of file attributes, manufacturer and user parameters
Support working hours preview, accurate to millisecond
Real-time display of processing path, coordinate point and progress bar
Automatic focusing by panel, support manual and automatic focusing
Support manual input or automatic acquire the coordinate of docking point
Extended interface for external device is convenient to customize demand

Our Advantages

User-friendly interface

High control precision

Versatile compatibility

Robust performance

Strong communication support

Integration with software

Software RuidaV8 (Free)

Supported formats:
Vector: dxf, ai, plt, dst, dsb, etc.
Bitmap: bmp, jpg, gif, png, mng, etc.
Compatible with Windows XP and above operating systems (Windows XP recommended)
