RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller

RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller
RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller

Large Image :  RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6332G
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: 240*160*120
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller

Description
Axis: 3 Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Laser Channel: 2 Communication: Ethernet, USB And WIFI (optional)
Installment Encryption: Support Feeding: Z Axis Feeding, Sheet Feeding
Rotary: Y Axes Rotation Panel: 3.5''color Screen + Keys, Linux Operating System
Onboard Clock: Support Software: RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage
Highlight:

RDC6332G Control Panel

,

Laser Engraver Cutter Control Panel

,

Laser Engraver And Cutter Controller

RUIDA RDC6332G CO2 Laser Control Panel
Laser Engraver and Cutter Controller for CO2 Laser Cutting and Engraving Machines
The RDC6332G system represents the latest generation of laser engraving and cutting control technology from Ruida. This advanced controller offers superior hardware stability with enhanced resistance to high voltage and static electricity. Featuring a Linux-based human-machine operating system, it provides an intuitive interface with powerful functionality.
RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller 0
Key Features
  • Standalone operation with 256MB onboard memory
  • Supports USB, Ethernet communication and U flash disk
  • Color operation panel with push-button and touch screen support
  • Compatible with RDWorksV8 software including plug-in support and virtual printing

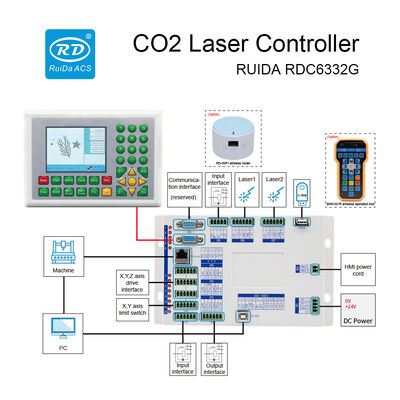

  • Three motion axes with comprehensive laser interfaces
  • Expandable with optional external accessories
Included Software: RDworks V8 (Free)
Supports PLT, DXF, AI, DST and other file formats with import, display and edit functions. Includes image file import and processing capabilities.
RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller 1
Technical Specifications
Parameter Specification
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 3
Laser channel 2
Communication Ethernet, USB and WIFI (optional)
Panel 3.5" color screen + keys, Linux operating system
Feeding Z axis feeding, sheet feeding
Installment encryption Supported
Onboard clock Supported
Firmware Remote upgrade of panel and mainboard program
Rotary processing Y axis rotation
Engraving function Plane engraving, slope engraving and gray engraving
Resume processing after power failure Supported
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Operating system WinXP, Win7, Win8, Win10 (32-bit or 64-bit)
Language 11 languages including English, Chinese, French, German, Spanish and more

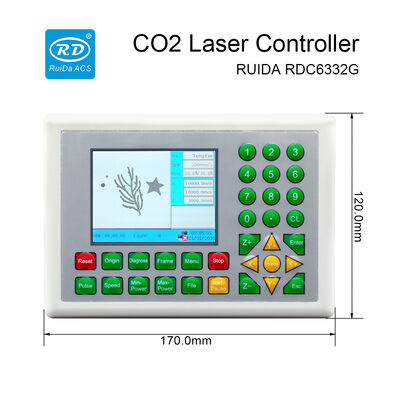

Dimensions Panel: 170×120×38.6mm

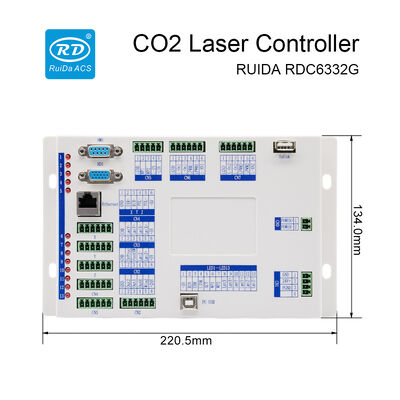

Mainboard: 220.5×134×29.6mm
Accessories Wireless handle box, RD-APP and RD-WIFI
Note: Virtual printing only supports Windows 10.
RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller 2
