RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System

RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System
RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System

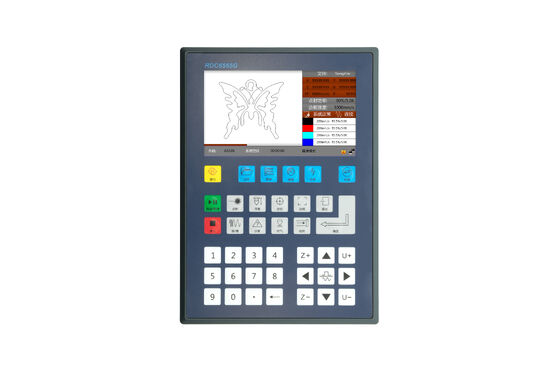

Large Image :  RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6555G
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: 360*300*250
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System

Description
Brand: RUIDA Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis: 5 Y Axis Double Drive: Support Dual-drive Output And Have Synchronous Protection Function
Laser Channel: 1 Laser Control: Support PSO, PSV, PSP, FSP Laser Control Methods
Language: 12 Panel: 5” Color Screen + Keys And 7” Touch Screen Is Optional
Software: LSWorks Firmware: Remote Upgrade Of Panel And Mainboard Program
Highlight:

RUIDA CO2 Laser Cutting Controller

,

Precision CO2 Laser Cutting Controller

,

CO2 Laser Cutting Control System

RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System
The RDC6555G from Ruida Technology is an advanced precision cutting controller designed specifically for CO2 laser cutting applications. This film cutting control system features superior hardware stability and offers multiple motion control schemes with enhanced resistance to high voltage and electrostatic interference.
Key Features
  • Autonomous Dual Drive Control: Integrated control for dual drive systems
  • High-Precision Pulse Width Control: Accuracy up to 0.1% for pulse width modulation
  • Synchronous Error Alarm: Supports gantry dual drive synchronization and servo driver following error alarms
  • Encoder Signal Detection: Real-time position and speed monitoring
  • Advanced Protection Functions: Includes absorption and blow functions, grating protection, and cover protection
RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System 0
Software: LSWorks (Free)
Supports PLT, DXF, AI, DST and other file formats with display and edit functions. Includes image file import and processing capabilities.
RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System 1
Technical Specifications
Parameter RDC6555G
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive Support dual-drive output with synchronous protection function
Laser control Support PSO, PSV, PSP, FSP laser control methods
Axis 5
Laser channel 1
Communication Ethernet, USB
Panel 5" color screen + keys (7" touch screen optional)
Feeding Support roll to roll cutting
Cutting Precision cutting of high molecular materials
Encryption Supported
Onboard clock Supported
Firmware Support remote upgrade of mainboard and panel program
Software LSWorks
Language support 13 languages including English, Chinese, Japanese, German, Spanish, etc.
Dimensions Panel: 202×145×42.1mm
Mainboard: 270×157×55mm
Applications
Ideal for precision cutting of non-metal thin film materials, ceramic and high molecular materials including GDF film, peep-proof protection film, lens film, handwriting film, polarizing film, touch screen and flexible OLED applications.
RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System 2

Tag:

Precision Cutting Controller,

CO2 Laser Cutting Control System,

CO2 Laser Cutting Controller
