Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel

Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel
Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel

Large Image :  Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: FC
Model Number: RDC6445-MOD5
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel

Description
Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers Axes: 4
Laser Channel: 2 Communication Interface: Ethernet, USB And WIFI (optional)
Double Heads Synchronous: Support Installment Encryption: Support
Onboard Clock: Not Support Engraving Function: Plane Engraving, Slope Engraving And Gray Engraving
Operating System: WinXP, Win7, Win8, Win10, 32-bit Or 64-bit Optional Accessories: Wireless Handheld Box, RD-APP And RD-WIFI
Highlight:

Ruida Controller RDC6445G-MOD5

,

Touch Screen Laser Control Panel

,

Laser Cutting And Engraving Control Panel

Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel
Product Description

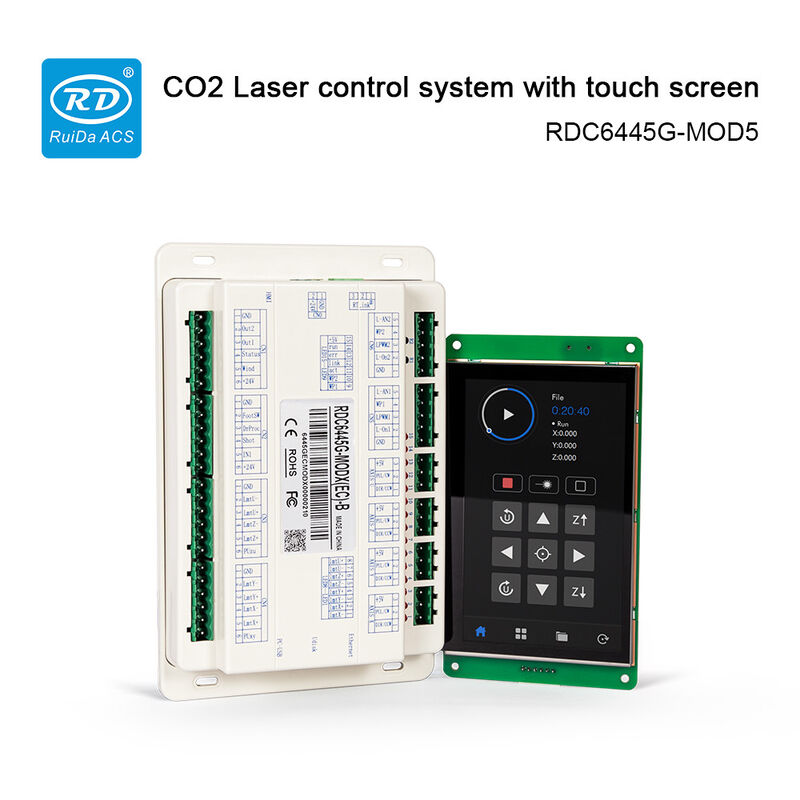

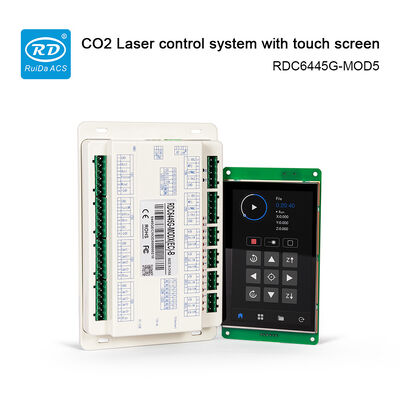

The Ruida Controller RDC6445G-MOD5 is a touch screen laser cutting and engraving controller featuring open-source HMI with customizable operation pages. Compatible with most MODBUS RTU protocol touch screens in the market.

Technical Specifications
Parameter RDC6445G-MOD5
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads asynchronous Support
Communication interface Ethernet, USB and WIFI (optional)
Feeding U axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Firmware upgrade Support the remote upgrade of mainboard and panel program
Rotary processing Y or U axis rotation mode is optional
Engraving function Plane engraving, slope engraving and gray engraving
Resume processing after power failure Support
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
Operating system WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language 16 languages including simplified Chinese, traditional Chinese, English, Japanese, German, Spanish, Russian, Portuguese, Korean, etc

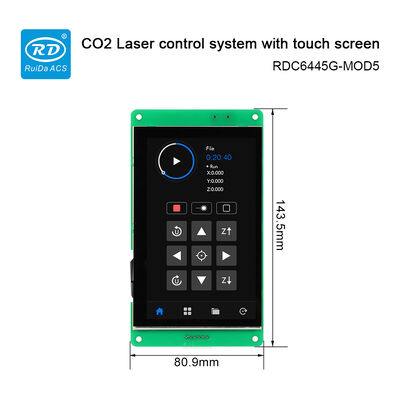

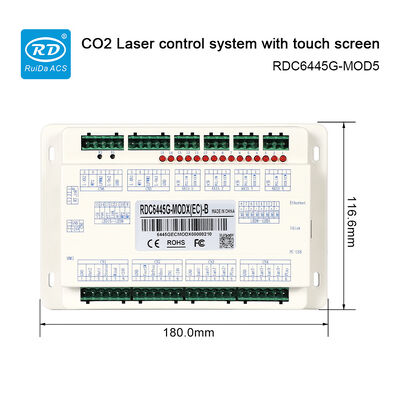

Size Panel: L81mm*W143.5mm*H16.6mm Mainboard: L180mm*W116.6mm*H33.1mm
Installment encryption Support
Onboard clock Not support
Optional Accessories Wireless handheld box, RD-APP and RD-WIFI
Key Features
  • Support standalone operation and U disk processing
  • Support offline modification of file attributes, manufacturer and user parameters
  • Support working hours preview, accurate to millisecond
  • Real-time display the processing path, coordinate point and progress bar
  • Automatic focusing by panel, support manual and automatic focusing
  • Support manual input or automatic acquire the coordinate of docking point
  • Abundant external auxiliary accessories are optional (wireless handheld box, RD-APP and RD-WIFI)
  • Extended interface for external device is convenient to customize demand
Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 0 Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 1
Applications

Mainly focusing on non-metal laser cutting and engraving, including fabric, leather, wood, paper, acrylic, PMMA, rubber & plastics, smart phone accessory, etc.

Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 2
Software - RDWorksV8
Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 3 Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 4 Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 5
Package Contents
Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 6
Product Certification
Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 7
Shipping and Payment
Ruida Controller RDC6445G-MOD5 Touch Screen Laser Cutting And Engraving Control Panel 8

Tag:

Laser Cutter Controller,

Laser Control System,

CO2 Control Panel
