RUIDA Non Metal CO2 Laser Controller With Sheet Feeding

Large Image : RUIDA Non Metal CO2 Laser Controller With Sheet Feeding

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6332NM

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA Non Metal CO2 Laser Controller With Sheet Feeding

Description

Axis:	3	Laser Source:	High-power CO2 Glass Tube And RF Lasers
Laser Channel:	2	Communication:	Ethernet, USB And WIFI (optional)
Encryption:	Support	Panel:	3.5”color Screen + Keys, Linux Operating System
Onboard Clock:	Support	Feeding:	Z Axis Feeding, Sheet Feeding
Maximum Pulse Frequency:	400KHZ	Software:	MetalCut
Highlight:	Sheet Feeding CO2 Laser Controller , Non Metal CO2 Laser Controller , ROHS Ruida Laser Controller

RUIDA RDC6332NM Non-Metal CO2 Laser Controller With Sheet Feeding And Non-Metal Height Control

The RDC6332NM is an advanced laser control system designed specifically for processing non-metal materials. It incorporates an innovative automatic height adjustment feature that enables it to handle uneven or varying working surfaces with ease. This sophisticated system offers automatic height adjustment, powerful CO2 laser technology, and auxiliary gas control, making it ideal for a wide range of cutting applications involving non-metal materials.

Key Features

High Precision: Displacement sensor with 0.005mm accuracy and servo precision of 0.01mm
Multi-Axis Control: Supports three motion axes and a dedicated height control axis
Optional Accessories: Range of accessories available to enhance functionality
Curved Cutting/Engraving: Specialized for non-metal curved surfaces, arcs, and cylinders

Software: MetalCut (Free)

Supports image and vector import with CAD tools, image and text processing tools. Includes CAM function for laser cutting and supports multiple languages.

Technical Specifications

Parameter	Specification
Laser source	High-power CO2 glass tube and RF lasers
Axis	3
Laser channel	2
Communication	Ethernet, USB and WIFI (optional)

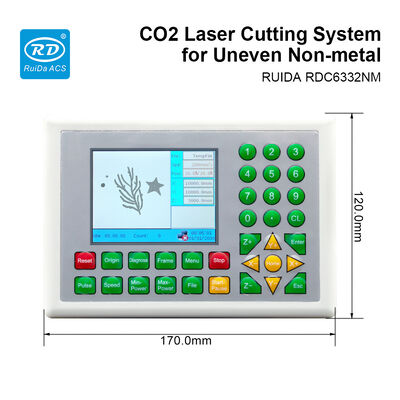

Panel	3.5" color screen + keys, Linux operating system
Feeding	Z axis feeding, sheet feeding
Height control	Non-metal servo control system with high response, integrated high precision laser displacement sensor (0.005mm accuracy), servo accuracy of 0.01mm, with collision alarm and limit functions
Encryption	Supported
Onboard clock	Supported
Firmware	Supports remote upgrade of mainboard and panel program
Cutting	Uneven non-metal cutting
Engraving	Plane engraving, slope engraving and gray engraving
Software	MetalCut, support perforation, lead, bridge and micro connection, RDWorksV8
Language	Simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean, Italian

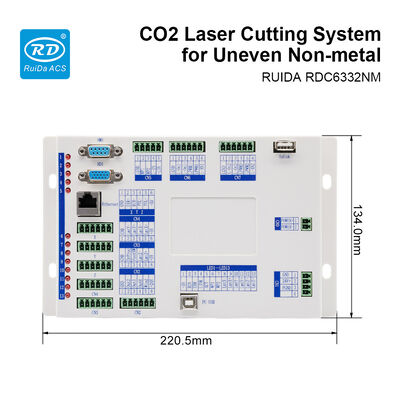

Size	Panel: L170mmW120mmH38.6mm Mainboard: L220.5mmW134mmH29.6mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note:
1. The system should work with LFS-ANM-T43-V2 height controller.
2. Due to laser wavelength limitations, this system is not suitable for processing highly reflective materials, transparent materials, or materials with strong laser absorption for this wave band.
