High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM

High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM
High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM

Large Image :  High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6332NM
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM

Description
Brand: RUIDA Laser Source: High-power CO2 Glass Tube And RF Lasers
Axis: 3 Panel: 3.5”color Screen + Keys, Linux Operating System
Laser Channel: 2 Non-metal Servo Control System: High Response, Integrated High Precision Laser Displacement Sensor
Encryption: Support Feeding: Z Axis Feeding, Sheet Feeding
Maximum Pulse Frequency: 400KHZ Firmware: Remote Upgrade Of Panel And Mainboard Program
Highlight:

High Precision CO2 Laser Controller

,

CO2 Laser Controller 400KHZ

,

Laser Non Metal Height Controller

RDC6332NM High-Precision Non-Metal Height Control CO2 Laser Controller
Advanced Laser Control System with 3.5" Color Screen and Linux OS

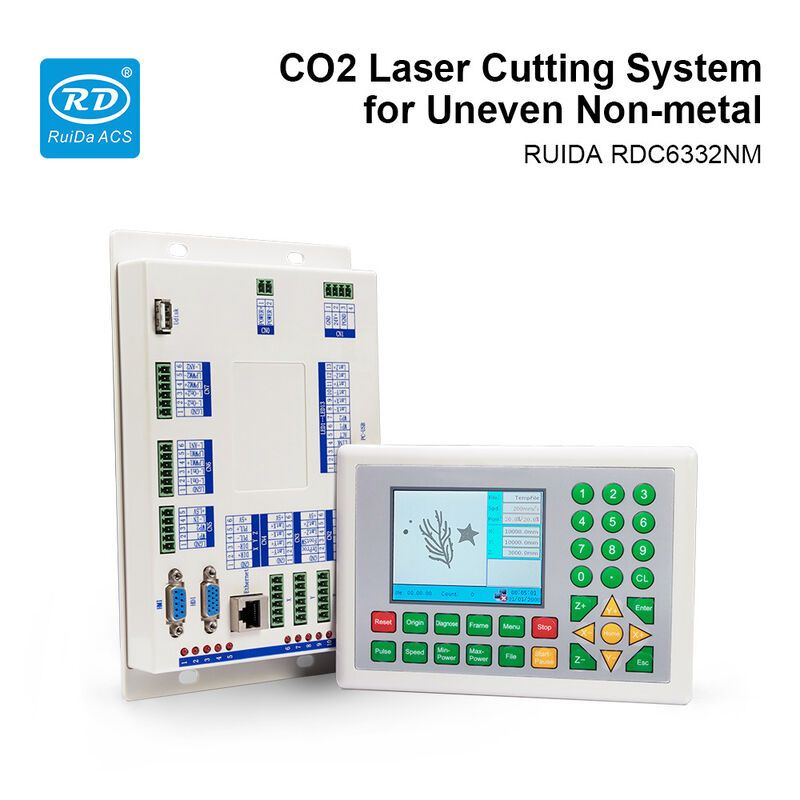

The RDC6332NM is a state-of-the-art non-metal automatic height adjustment laser control system featuring integrated height adjustment technology. Designed for high-power CO2 laser applications, it automatically adapts to uneven non-metal surfaces to ensure consistent processing quality. The system includes auxiliary gas control support to enhance cutting precision and efficiency.
Key Features
  • High-precision displacement sensor with 0.005mm detection accuracy and 0.01mm servo accuracy
  • Supports three motion axes plus dedicated non-metal height control axis
  • Compatible with various external auxiliary accessories
  • Specialized for non-metal curved cutting and engraving applications
  • Includes cylindrical and slope engraving capabilities
High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM 0
Software Compatibility
Includes MetalCut software (free) supporting image and vector import, CAD tools, image/text processing, and CAM functionality for laser cutting. Features multi-language support for global operation.
High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM 1
Technical Specifications
Parameter Specification
Laser Source High-power CO2 glass tube and RF lasers
Axis 3
Laser Channel 2
Communication Ethernet, USB and WIFI (optional)

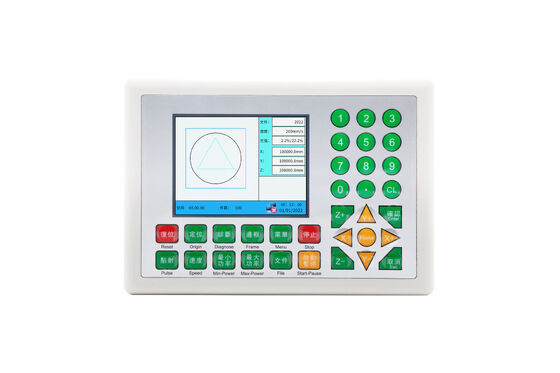

Panel 3.5" color screen + keys, Linux operating system
Height Control Non-metal servo control system with high response, integrated high precision laser displacement sensor (0.005mm detection accuracy, 0.01mm servo accuracy), with collision alarm and limit functions
Software MetalCut, RDWorksV8 (supports perforation, lead, bridge and micro connection)
Language Support 11 languages including English, Chinese, French, Russian, Spanish, German, and more
Dimensions Panel: 170×120×38.6mm

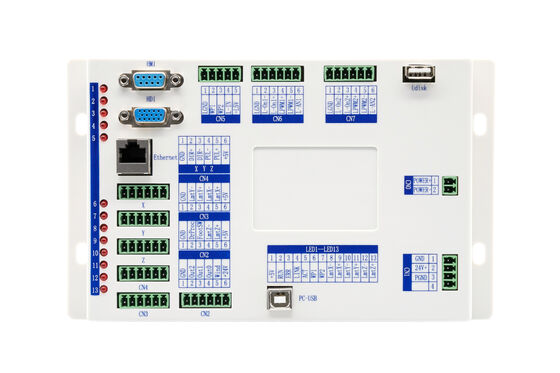

Mainboard: 220.5×134×29.6mm
Accessories Wireless handle, RD-APP and RD-WIFI
Note: System requires LFS-ANM-T43-V2 height controller. Due to laser wavelength limitations, not suitable for highly reflective, transparent, or strongly laser-absorbent materials in this wave band.
System Advantages
  • Advanced Height Adjustment: Precision servo control maintains optimal working distance
  • Versatile Processing: Handles both cutting and engraving of various non-metal materials
  • Enhanced Efficiency: Integrated auxiliary gas control improves cutting performance
  • Complete Solution: Includes hardware, software, and accessories for immediate operation
High Precision CO2 Laser Controller 400KHZ Non Metal Height Controller RDC6332NM 2
