High Precision Intelligent Control Board Ruida LFS-AP01-V3.0 Analog Signal Amplifier

Large Image : High Precision Intelligent Control Board Ruida LFS-AP01-V3.0 Analog Signal Amplifier

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	LFS-AP01-V3.0

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

High Precision Intelligent Control Board Ruida LFS-AP01-V3.0 Analog Signal Amplifier

Description

Model:	LFS-AP01-V3.0	Panel:	Digital Display, Support One Decimal Place
Communication Interface:	Analog Voltage Detection	Laser Cutting:	Metal And Non-metal Cutting
Sampling Frequency:	1000Hz	Detection Distance:	0-10mm
Highlight:	High Precision Intelligent Control Board , Ruida Analog Signal Amplifier , High Precision Analog Signal Amplifier

High Precision Intelligent Control Board Ruida LFS-AP01-V3.0 Analog Signal Amplifier

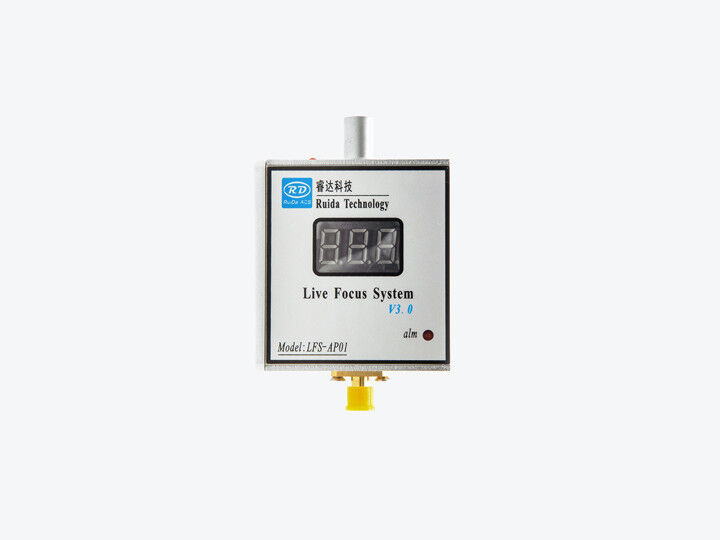

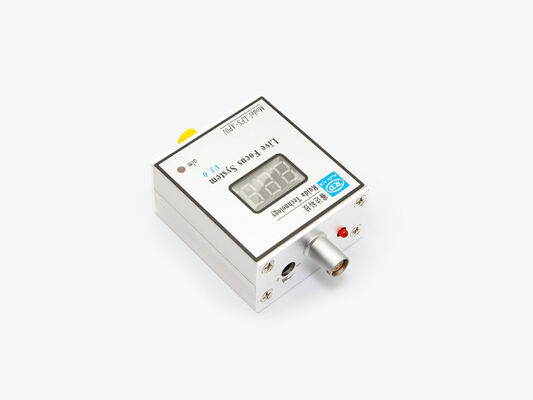

The LFS-AP01-V3.0 analog amplifier is a high-precision signal amplifier developed by Ruida Technology specifically for height control applications. It utilizes a high-performance capacitance sensor for real-time data collection, processes signals to provide nozzle height feedback, and works in conjunction with the LFS-AM-T43 height controller for precise control.

Key Features

Intelligent Calibration

One-button capacitance calibration for simplified operation
User-friendly interface for quick setup
Precise measurement adjustment capabilities

Real-Time Monitoring

Digital voltage display with one decimal place precision
Continuous live status updates
Clear parameter visibility for operational transparency
Instant feedback system for immediate response

Safety Features

Integrated collision alarm system
Protective monitoring for risk prevention
Equipment protection mechanisms
Emergency alert functionality

Technical Specifications

Model	LFS-AP01-V3.0
Panel	Digital display, supports one decimal place
Communication Interface	Analog voltage detection
Laser Cutting Compatibility	Metal and non-metal cutting
Sampling Frequency	1000Hz
Detection Distance	0-10mm
