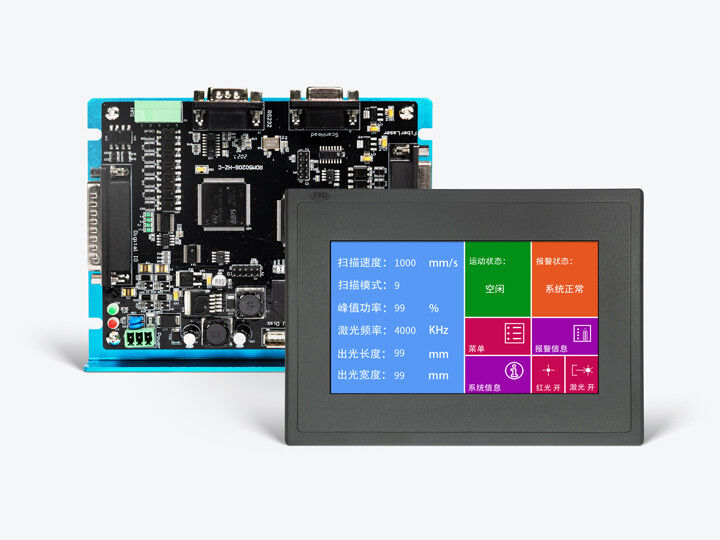

Ruida RDM5020CL-T70 Laser Cleaning Controller Industrial Handheld Laser Cleaner Controller

Ruida RDM5020CL-T70 Laser Cleaning Controller Industrial Handheld Laser Cleaner Controller
Ruida RDM5020CL-T70 Laser Cleaning Controller Industrial Handheld Laser Cleaner Controller Ruida RDM5020CL-T70 Laser Cleaning Controller Industrial Handheld Laser Cleaner Controller Ruida RDM5020CL-T70 Laser Cleaning Controller Industrial Handheld Laser Cleaner Controller

Large Image :  Ruida RDM5020CL-T70 Laser Cleaning Controller Industrial Handheld Laser Cleaner Controller

Product Details:
Place of Origin: China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDM5020CL-T70
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: USD500-600/Set
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

Ruida RDM5020CL-T70 Laser Cleaning Controller Industrial Handheld Laser Cleaner Controller

Description
Brand: RUIDA Laser Control: Handheld High Power Continuous Fiber Laser, Pulse Fiber Laser
Galvanometer Protocol: XY2-100 Communication Interface: RS232
Input And Output: Support Multi-channel General Input And Output External Protection: 3 Channels IO Input
Control Function: Support Online Power And Frequency Adjustment, Tri-color Light Control And External Start And Stop External Alarm Input: Support Laser Alarm, Cooling System Alarm And Other Protection Input
AD/DA: Support Analog Quantity Input And Output Function Installment Encryption: Support
Onboard Clock: Support Firmware Upgrade: Remote Upgrade Of Panel And Mainboard Program
Distance Induction: Support External Laser Displacement Sensor Input Size: Panel: L210mm*W150mm*H24mm Mainboard: L155mm*W120mm*H55mm
Highlight:

Ruida Laser Cleaning Controller

,

Industrial Laser Cleaning Controller

,

Handheld Laser Cleaner Controller

Ruida RDM5020CL-T70 Laser Cleaning Controller Industrial Handheld Laser Cleaner Controller
Ruida Laser Cleaning Controller RDM5020CL-T70 Handheld Industrial Cleaner Control Board
Product Specifications
Attribute Value
Brand RUIDA
Laser Control Handheld high power continuous fiber laser, pulse fiber laser
Galvanometer protocol XY2-100
Communication interface RS232
Input and output Support multi-channel general input and output
External protection 3 channels IO input
Control function Support online power and frequency adjustment, tri-color light control and external start and stop
External alarm input Support laser alarm, cooling system alarm and other protection input
AD/DA Support analog quantity input and output function
Installment encryption Support
Onboard clock Support
Firmware upgrade Remote upgrade of panel and mainboard program
Distance induction Support external laser displacement sensor input

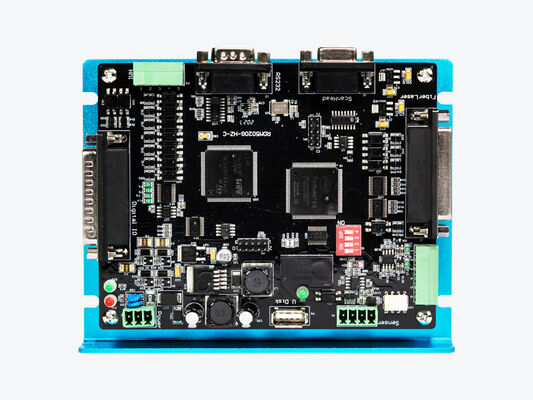

Size Panel: L210mm*W150mm*H24mm Mainboard: L155mm*W120mm*H55mm
Product Overview
The Ruida RDM5020CL-T70 is an embedded laser cleaning control system specially developed for industrial laser cleaning applications. This advanced controller supports both helical and linear scanning modes, with spiral scanning capability that eliminates the traditional zebra crossing phenomenon of linear filling scanning.
Key Features
  • Supports handheld high power continuous and pulse fiber lasers
  • XY2-100 galvanometer protocol for precise control
  • RS232 communication interface for reliable data transfer
  • 3-channel IO input for external protection
  • Analog input/output functionality (AD/DA)
  • Multi-channel general input/output support
  • External laser displacement sensor input capability
  • Multi tap screw cleaning technology
  • Online power and frequency adjustment
  • Tri-color light control and external start/stop functions
Our Advantages
Expertise in Laser Control
Ruida Technology specializes in advanced laser control systems for optimal performance and precision.
Innovative Scanning
Helical and linear scanning with unique spiral scanning that eliminates zebra crossing effects.
User-Friendly Interface

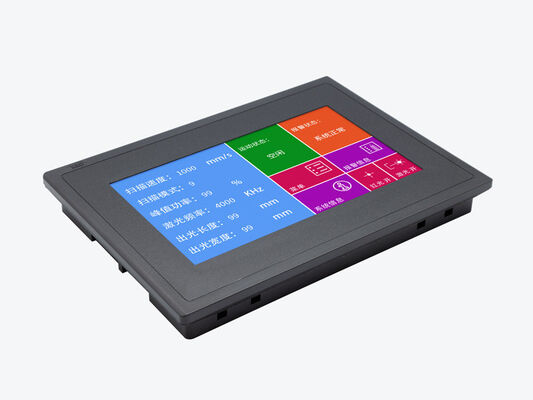

Real-time display of scanning parameters, alarms, and movement status.
Reliable Quality
Robust solutions designed for demanding industrial applications.
Custom Solutions
Tailored configurations to meet specific industry requirements.
Global Recognition
Category Achievement
Customer Satisfaction 98% Retention Rate
Technical Support 95% Response Rate
Product Rating 4.9/5 Average
Market Presence 50+ Countries
Enterprise Clients 10,000+ Active Users
Quality Certification ISO9001:2015
Custom Solutions
We offer comprehensive customization services for controller cards, adapting our proven technology to meet your specific industry demands. Our experienced R&D team collaborates closely with clients throughout the development process to deliver tailored solutions.
