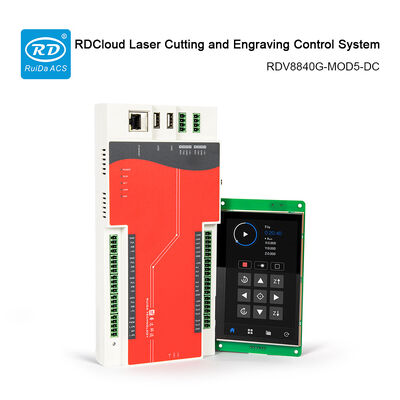

Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy

Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy
Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy

Large Image :  Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDV8840G-MOD5-DC
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy

Description
Brand: RUIDA Axis: 4,Pulse+Dir Signal
Laser Channel: 1 Laser Source: High Power CO2 Glass Tube Laser And RF Laser
Maximum Pulse Frequency: 400KHz Precision: +/ -0.5 Pulse
Rotation Axis: Support Camera: 3 And 5 Megapixels Are Available
Product Licensing: Support Software: RDWorksV8Lite
Highlight:

Controller RDV8840G-MOD5-DC

,

Dual Camera CO2 Laser Controller

,

Four Axis Laser Controller

Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy
Product Overview
The RDV8840G-MOD5-DC is a cutting-edge cloud laser cutting and engraving system from Ruida Technology featuring dual-camera interface for panoramic vision and MARK point accuracy. This advanced system integrates IoT functionality through the RDCloud system, enabling remote diagnostics, firmware upgrades, big data analysis, and comprehensive equipment monitoring.
Key Features
  • Integrated CCD vision system with dual-camera interface for panoramic vision and precise MARK point positioning
  • RDCloud IoT platform enables remote equipment management, maintenance, and alarm shutdown warnings
  • Cross-platform compatibility with PC, OS, and Android systems, plus integration with MES/ERP systems
  • Supports flexible LAN communication modes including one-to-many, many-to-one, and many-to-many configurations
  • Maintains all RDC644X series controller functionality while adding Wi-Fi communication support
  • Four-axis motor control with Z-axis lifting and U-axis feeding capability, configurable as rotary axis
Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy 0
RDWorksV8Lite Software (Free)
  • Supports import, display, and editing of PLT, DXF, AI, DST, and image file formats
  • Enables binding to RDCloud management system
  • Includes parameter library for direct selection of processing parameters
  • Supports online upgrades for continuous improvement
Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy 1
Technical Specifications
Parameter Specification
Laser source CO2 glass tube, CO2 RF tube, and UV lasers
Power control signal 0-5V, PWM frequency <100KHz, TTL level logic
Axis 4 axes, Pulse+Dir signal
Maximum pulse frequency 400KHz
Laser channel 1
Precision +/-0.5 pulse
Firmware Remote upgrade of mainboard program
Rotation axis Supported
Product licensing Supported
Engraving Plane engraving, slope engraving and gray engraving
Camera 3 and 5 megapixels available
Software RDWorksV8Lite
Language Chinese and English
Size Panel: L81*W143.5*H16.6mm
Mainboard: L228*W107*H36.6mm
Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy 2 Dual Camera Interface CO2 Laser Controller For Panoramic Vision And MARK Point Accuracy 3

Tag:

Laser Cutter Controller,

Laser Control System,

CO2 Control Panel
