Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller

Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller
Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller

Large Image :  Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: CE
Model Number: RDV6445G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable, contact us
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller

Description
Motion Axis: 4 Laser Interface: 2
Panel: 5''color Screen+keys Communication: Ethernet, USB And WIFI(optional）
Axis Control: Pulse+dir Or +/-pulse, Single-ended Output Feeding: U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Camera: Cameras Of 1.3, 3 And 5 Megapixels Are Available; Lens Of 8~12mm, 35mm And 50mm Are Available. Light Source System: LED Red And White Circular Light Source
Cutting Function: Feature Positioning, Mark Point Positioning Software: RDVision,RDCMarkVision ,RDWorksV8、RDImage
Highlight:

Engraving Laser Controller

,

Small Vision Laser Controller

,

RDV6445G Laser Controller

Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller
Product Description

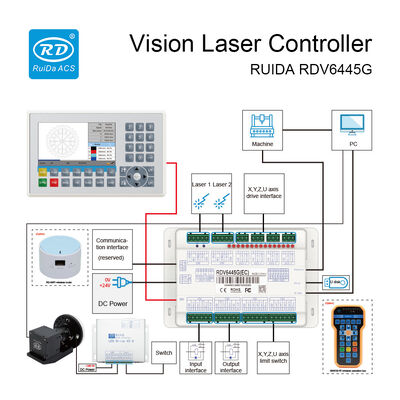

The Ruida Controller RDV6445G features enhanced hardware stability with superior resistance to high voltage and static electricity. Its 5-inch color touchscreen provides an intuitive interface with advanced functionality. This controller offers comprehensive motion control capabilities, large file storage capacity, dual-channel adjustable laser power control, USB flash drive compatibility, and multi-channel I/O control. Supports Ethernet and USB communication with PC, along with Mark point recognition for precise positioning.
Technical Specifications
Parameter RDV6445G
Adapted laser CO2 glass tube, CO2 RF tube and UV lasers
Motion axes 4
Laser channels 2
Encryption Support
Communication Ethernet, USB and WIFI(optional)
Panel 5-inch color screen+keys
Axis control interface Pulse + dir or +/- pulse, single-ended output
Feeding U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Firmware Support remote upgrade of panel and mainboard
Camera Cameras of 1.3, 3 and 5 megapixels available; lens of 8~12mm, 35mm and 50mm available
Light source system LED red and white circular light source
Cutting function Feature positioning, Mark point positioning
Engraving function Plane engraving, slope engraving and gray engraving
Resume processing after power failure Support
Software RDVision, RDCMarkVision, RDWorksV8, RDImage
Operating system WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language 13 languages supported

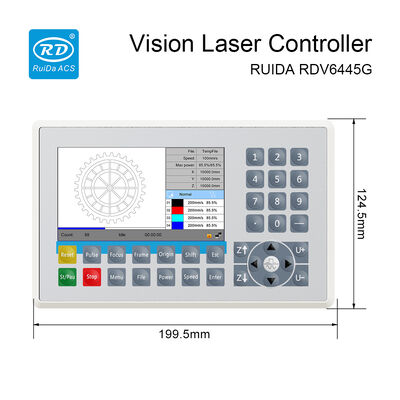

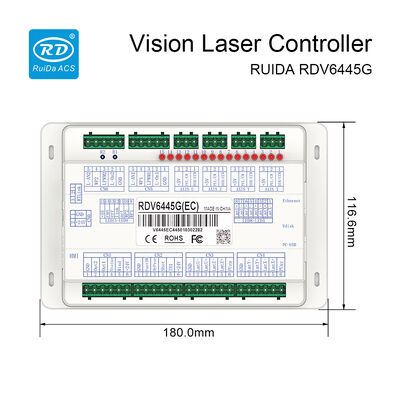

Size Panel: 199.5×124.5×42.1mm; Mainboard: 180×116.6×33.1mm
Key Features
  • Supports all standard controller functions
  • High precision positioning with feature recognition and Mark point auxiliary positioning
  • Supports Mark point vision cutting, irregular material matching-cutting, and projection cutting
Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 0 Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 1
Application Fields
Ideal for vision cutting applications in clothing, leather, digital cropping, advertising, printing, and 3C industries.
Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 2
Compatible Software
RDVision, RDCMarkVision, RDWorksV8, RDImage
Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 3 Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 4 Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 5
Product Certification
Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 6
Package Contents
Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 7
Shipping and Payment Information
Ruida Laser Controller RDV6445G Small Vision Cutting And Engraving Controller 8
