RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing

RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing
RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing

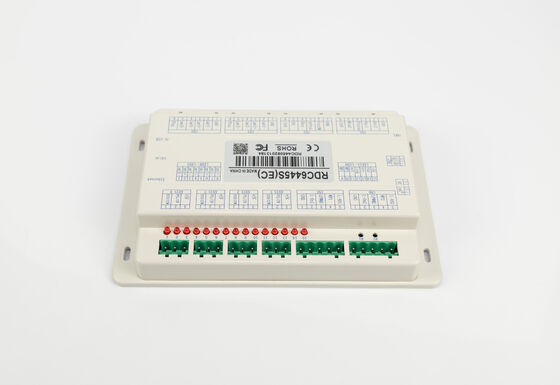

Large Image :  RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6445S
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing

Description
Brand: RUIDA ACS Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis: 4 Panel: 5˝ Color Screen + Keys
Laser Channel: 2 Communication: Ethernet, USB And WIFI (optional)
Double Heads Synchronous: Support Feeding: U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Onboard Clock: The System Time Can Be Modified Firmware: Support The Remote Upgrade Of Mainboard And Panel Program
Highlight:

Cutting Machinery CO2 Laser Controller

,

Engraving/Cutting CO2 Laser Controller

,

RDC6445S CO2 Laser Controller

RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing
The RDC6445S is a CO2 laser control system tailored for engraving and cutting machinery. It boasts a 5-inch TFT display for easy operation and supports a variety of materials. Compatible with RDWorks, LaserCut, and LightBurn, it offers features like path optimization and power adjustment. With 4-axis motion control and 2-channel laser management, the RDC6445S supports standalone operation via USB/Ethernet. It also includes manual/automatic focusing, synchronized feeding, and multiple cutting modes, making it a versatile solution for diverse laser machine applications.
Key Features
  • Customizable HMI: Open-source system for easy page customization
  • Broad Compatibility: MODBUS RTU protocol for various touch screens
  • Versatile Features: Supports 4 axes, 2 laser interfaces, and multiple IO channels
  • Advanced Processing: Single/double laser head, synchronous processing, ultra-wide segmentation cutting
  • Software Integration: With RDWorksV8 for seamless workflow
  • Added Functionality: Plug-in software and virtual printing support
RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing 0
Software RDworks V8 (Free)
Support PLT, DXF, AI, DST and other file formats import, display and edit functions, support image file import and processing.
RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing 1 RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing 2
Technical Specifications
Parameter RDC6445S
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads synchronous Support
Communication Ethernet, USB and WIFI (optional)
Panel 5˝color screen + keys
Laser cutting Single beam
Feeding U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption Support
Onboard clock Support (the system time can be modified.)
Firmware Support the remote upgrade of mainboard and panel program
Rotary Y or U axis rotation mode is optional
Engraving Plane engraving, slope engraving and gray engraving
Processing Support resume processing after power failure
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language Simplified Chinese, English
Size Panel: L199.5*W124.5*H42.1mm
Mainboard: L180*W116.6*H33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI
Note: Virtual printing only supports Win10.
Advantages
1. Intuitive Customization
2. Universal Compatibility
3. Versatile Capabilities
4. Efficient Processing
5. Seamless Workflow
6. Enhanced Functionality
RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing 3 RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing 4 RDC6445S CO2 Laser Controller For Engraving/Cutting Machinery With Double Heads Synchronous Processing 5
