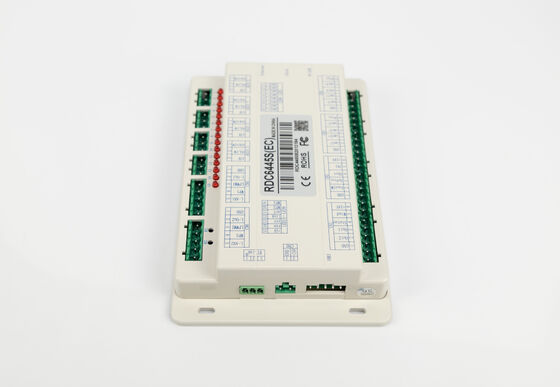

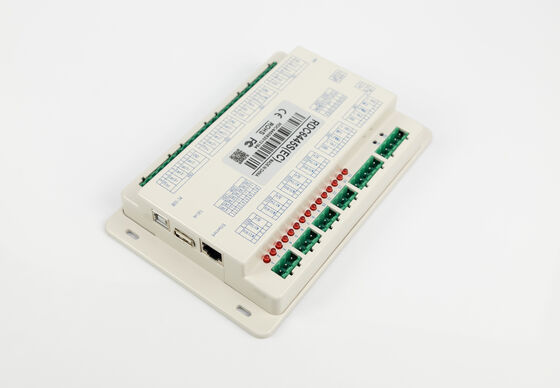

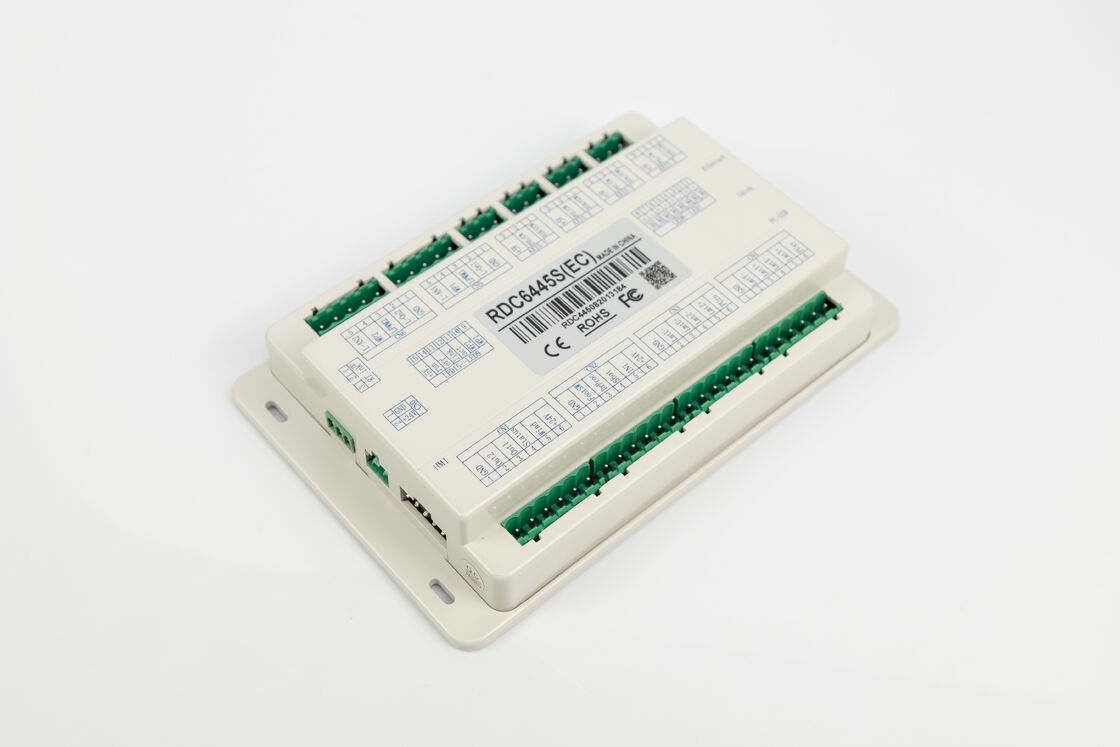

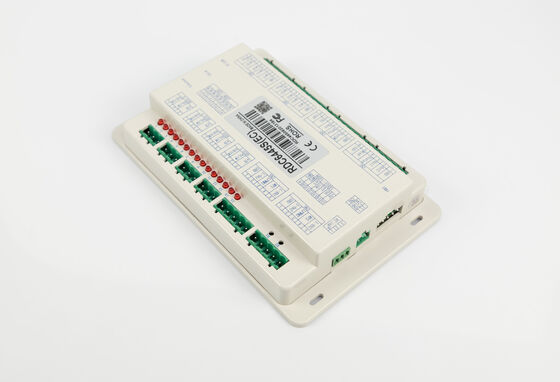

RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing

RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing
RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing

Large Image :  RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6445S
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing

Description
Brand: RUIDA Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis: 4 Panel: 5˝ Color Screen + Keys
Laser Channel: 2 Communication: Ethernet, USB And WIFI (optional)
Double Heads Synchronous: Support Feeding: U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Rotary: Y Or U Axis Rotation Mode Is Optional Firmware: Support The Remote Upgrade Of Mainboard And Panel Program
Highlight:

Double Laser Head Controller

,

CO2 Laser Controller RDC6445S

,

RUIDA Laser Controllers

RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing
The RDC6445S represents a CO2 laser management system, engineered specifically for engraving and cutting. This system features a durable 5-inch screen for straightforward navigation and control, and is versatile enough to accommodate a broad spectrum of materials. It integrates seamlessly with industry-standard software like RDWorks, plug-in software RDPlug, virtual printing and RDImage.
Boasting four-axis motion control and dual-channel laser management capabilities, the RDC6445S is built for independent operation and benefits from robust USB/Ethernet communication protocols. As a multifaceted solution, the RDC6445S enhances the capabilities and performance of laser machinery in a wide array of industrial applications.
Key Features:
  • HMI open-source system allows easy customization of operation pages within a configured development environment
  • Based on MODBUS RTU communication protocol, compatible with a wide range of touch screens
  • Supports up to 4 motion axes, two laser interfaces, and multiple general IO input/output channels
  • Capable of single/double laser head processing, double heads synchronous processing, and ultra-wide segmentation cutting
  • Integrates with the independent application software RDWorksV8
  • Supports plug-in software and virtual printing for added functionality
RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing 0
Software RDworks V8 (Free)
Supports PLT, DXF, AI, DST and other file formats import, display and edit functions. Includes image file import and processing capabilities.
RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing 1 RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing 2
Technical Specifications
Parameters RDC6445S
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads synchronous Support
Communication Ethernet, USB and WIFI (optional)
Panel 5˝color screen + keys
Laser cutting Single beam
Feeding U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption Support
Onboard clock Support, the system time can be modified
Firmware Support the remote upgrade of mainboard and panel program
Rotary Y or U axis rotation mode is optional
Engraving Plane engraving, slope engraving and gray engraving
Processing Support resume processing after power failure
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language Simplified Chinese, English
Size Panel: L199.5*W124.5*H42.1mm
Mainboard: L180*W116.6*H33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI
Note: Virtual printing only supports Win10.
RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing 3 RUIDA RDC6445S CO2 Laser Controller Supports Single And Double Laser Head Processing 4
