RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel

RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel
RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel

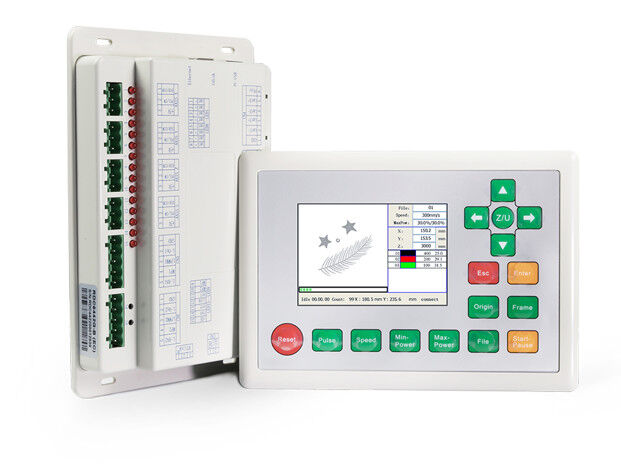

Large Image :  RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6442S
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: 240*160*120
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel

Description
Brand: RUIDA Axis: 4
Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers Laser Channel: 2
Communication: Ethernet, USB And WIFI (optional) Double Heads Asynchronous: Support
Feeding: U Axis Feeding, Sheet Feeding/large Format Segmentation Feeding Panel: 3.5'' Color Screen + Keys
Rotary: Y Axes Rotation Software: RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage
Highlight:

RDC6442S CO2 Laser Controller

,

ROHS CO2 Laser Controller

,

Non Metal CO2 Control Panel

RUIDA RDC6442S CO2 Laser Controller for Non-Metal Cutting Machines
The RDC6442S system, based on RDC6442G, features a 3.5-inch color screen for enhanced user experience and advanced functionality. This controller delivers comprehensive motion control with onboard file storage and versatile U flash disk support. With multi-channel IO control and both Ethernet/USB connectivity, it offers exceptional flexibility for device integration.
Key Features:
  • Dual communication options: USB and Ethernet with U flash disk support
  • Four motion axes with extensive laser interfaces
  • Independent color operation panel with push-button controls
  • Compatible with RDWorksV8 software including plug-in support and virtual printing
  • Wide range of optional external accessories
  • Optimized for non-metal materials: leather, fabric, signage, crafts, toys, and 3C applications
RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel 0

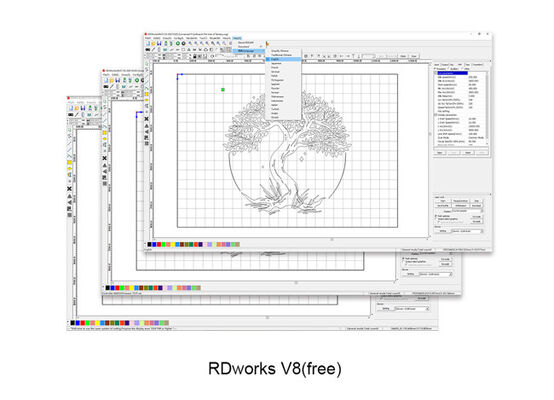

RDWorks V8 Software (Free)
Supports PLT, DXF, AI, DST and other file formats with import, display and edit functions. Includes image file processing capabilities.
RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel 1 RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel 2
Technical Specifications
Parameter RDC6442S
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads synchronous Supported
Communication Ethernet, USB and WIFI (optional)
Panel 3.5" color screen + keys
Feeding U axis feeding, sheet feeding/large format segmentation feeding
Encryption Supported
Firmware Remote upgrade supported
Rotary Y or U axis rotation mode optional
Engraving Plane, slope and gray engraving
Processing Resume after power failure supported
Software RDWorksV8, RDPlug, virtual printing and RDImage
Language 12 languages supported including English, Chinese, Spanish, etc.

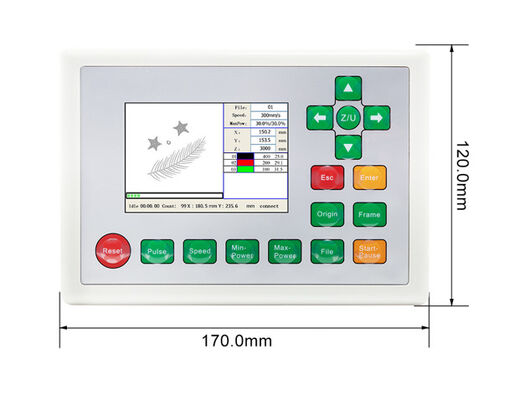

Size Panel: 170×120×30.5mm
Mainboard: 180×116.6×33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI
Note: Virtual printing only supports Windows 10.
Advantages of RDC6442S Controller
  • Intuitive Operation: 3.5-inch color screen for user-friendly control
  • Advanced Capabilities: Handles complex laser tasks with precision
  • Easy Integration: Multi-channel IO control for seamless equipment setup
  • Flexible Storage: Onboard file storage for autonomous operation
  • Reliable Connectivity: Ethernet and USB communication for efficient data transfer

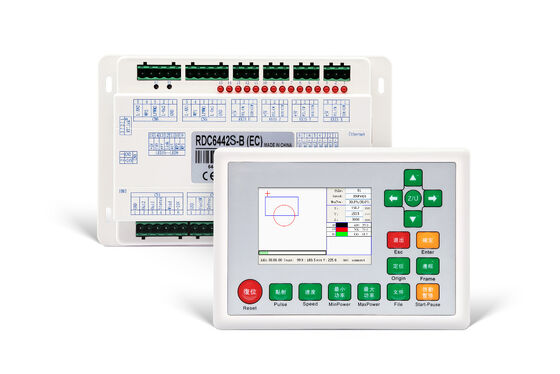

RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel 3 RUIDA RDC6442S CO2 Laser Controller Non Metal Cutting Machine CO2 Control Panel 4
