3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous

3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous
3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous 3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous 3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous 3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous

Large Image :  3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6442S
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: 240*160*120
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous

Description
Brand: RUIDA Communication: Ethernet, USB And WIFI (optional)
Axis: 4 Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Laser Channel: 2 Feeding: U Axis Feeding, Sheet Feeding/large Format Segmentation Feeding
Double Heads Asynchronous: Support Panel: 3.5'' Color Screen + Keys
Rotary: Y Axes Rotation Software: RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage
Highlight:

3.5 Inch CO2 Laser Controller

,

CO2 Laser Controller RDC6442S

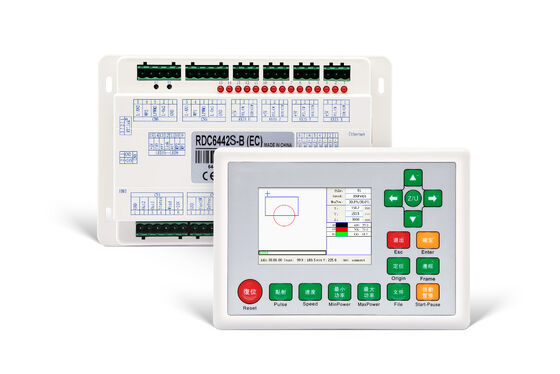

RDC6442S CO2 Laser Controller For Non-Metal Cutting With Double Heads Asynchronous
The RDC6442S system, an upgrade from the RDC6442G, is now equipped with a 3.5-inch color display for a more intuitive user experience and a richer feature set. With advanced motion control, this controller includes onboard file storage and an adaptable U flash disk driver. It boasts multi-channel general/special IO control for versatile device compatibility. Additionally, it enhances connectivity with support for both Ethernet and USB interfaces for PC communication.
Key Features
  • Dual Connectivity: Supports USB, Ethernet, and U flash disk for flexible data exchange.
  • Multi-Axis Motion: Four motion axes and diverse laser interfaces for intricate control.
  • Color Panel: An independent, color operation panel for easy, button-based control.
  • Software Compatibility: Compatible with RDWorksV8, supporting plug-ins and virtual printing.
  • Accessories: A selection of external auxiliary accessories for added functionality.
  • Cutting Specialization: Optimized for non-metal cutting in various industries such as leather, fabric, signage, and more.
3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous 0
Software RDworks V8 (Free)
Support PLT, DXF, AI, DST and other file formats import, display and edit functions, support image file import and processing.
3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous 1
Technical Parameters
Parameters RDC6442S
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads synchronous Support
Communication Ethernet, USB and WIFI (optional)

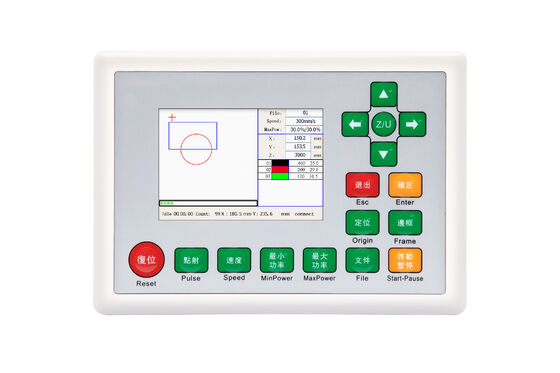

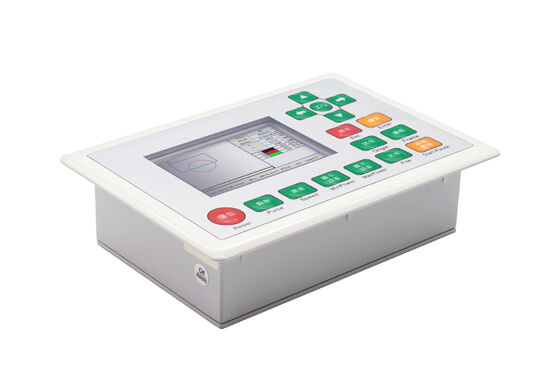

Panel 3.5" color screen + keys
Feeding U axis feeding, sheet feeding/large format segmentation feeding
Encryption Support
Firmware Support the remote upgrade of mainboard
Rotary Y or U axis rotation mode is optional
Engraving Plane engraving, slope engraving and gray engraving
Processing Support resume processing after power failure
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian
Size Panel:L170mm*W120mm*H30.5mm

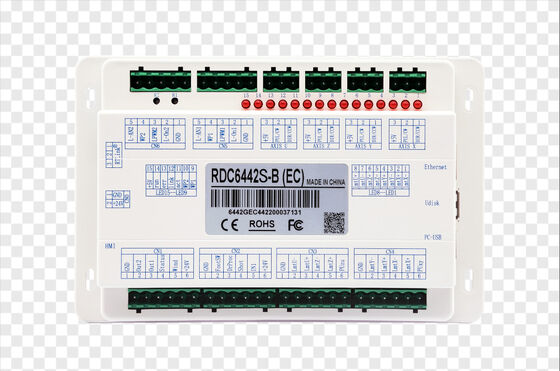

Mainboard:L180*W116.6*H33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI
Note Virtual printing only supports Win10.
Our Competitive Edge
  • Intuitive Design: Simplify operations with our 3.5-inch color screen for clear navigation.
  • Advanced Features: Deliver precision with advanced features tailored for complex laser jobs.
  • Easy Compatibility: Integrate effortlessly with existing setups through multi-channel IO control.
  • Onboard Storage: Enhance independence with onboard storage for your laser tasks.
  • Efficient Communication: Streamline PC interaction with both Ethernet and USB connectivity options.
3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous 2 3.5 Inch Color Display CO2 Laser Controller With Double Heads Asynchronous 3
