RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity

RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity
RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity

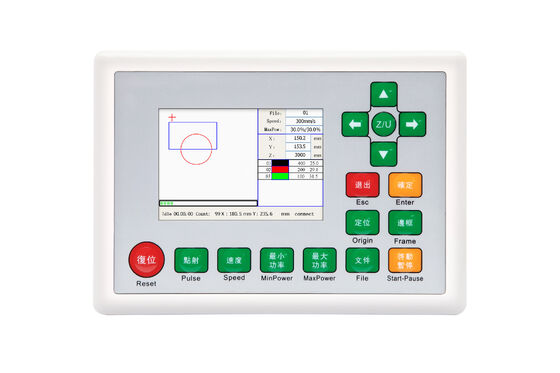

Large Image :  RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6442S
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: 240*160*120
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity

Description
Brand: RUIDA Axis: 4
Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers Laser Channel: 2
Communication: Ethernet, USB And WIFI (optional) Double Heads Asynchronous: Support
Feeding: U Axis Feeding, Sheet Feeding/large Format Segmentation Feeding Panel: 3.5'' Color Screen + Keys
Rotary: Y Axes Rotation Software: RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage
Highlight:

Double Heads CO2 Laser Controller

,

Ethernet CO2 Laser Controller

,

RUIDA 6442 Controller

RDC6442S Double Heads CO2 Laser Controller With Free RDworks V8 Software And Ethernet/USB Connectivity
The RDC6442S system, a step up from the RDC6442G, features a 3.5-inch color display for enhanced user interaction and a broader range of functionalities. This advanced controller offers onboard file storage and a flexible U flash disk driver, alongside comprehensive motion control.
Key Functions and Capacities:
  • Support USB and Ethernet communication and U flash disk
  • Four motion axes and rich laser interfaces
  • Independent color operation panel with push-button operation
  • Works with independent application software RDWorksV8, supporting plug-in software and virtual printing
  • Rich external auxiliary accessories are optional
  • Focus on non-metal cutting applications including leather, fabric, signage, craft gifts, toys, and 3C products
RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity 0
Software RDworks V8 (Free)
Supports PLT, DXF, AI, DST and other file formats import, display and edit functions. Includes image file import and processing capabilities.
RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity 1 RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity 2
Technical Parameters:
Parameters RDC6442S
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads synchronous Support
Communication Ethernet, USB and WIFI (optional)
Panel 3.5" color screen + keys
Feeding U axis feeding, sheet feeding/large format segmentation feeding
Encryption Support
Firmware Support the remote upgrade of mainboard
Rotary Y or U axis rotation mode is optional
Engraving Plane engraving, slope engraving and gray engraving
Processing Support resume processing after power failure
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language 13 languages including English, Chinese, Spanish, French, German, etc.
Size Panel: 170×120×30.5mm
Mainboard: 180×116.6×33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI
Note: Virtual printing only supports Win10.
Our Advantages:
  • Upgraded Display: 3.5-inch color display for intuitive operation
  • Advanced Motion Control: Sophisticated control for precise laser operations
  • Onboard Storage: Convenient file storage for efficient task management
  • Versatile Compatibility: Multi-channel IO control for wide device compatibility
  • Flexible Connectivity: Ethernet and USB interfaces for seamless PC communication
  • Feature-Rich: Comprehensive feature set for diverse laser processing needs
RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity 3 RUIDA RDC6442S Double Heads CO2 Laser Controller With Ethernet USB WIFI Connectivity 4
