RDC5121G Standalone CO2 Laser Cutting And Engraving Controller For Non Metal Processing

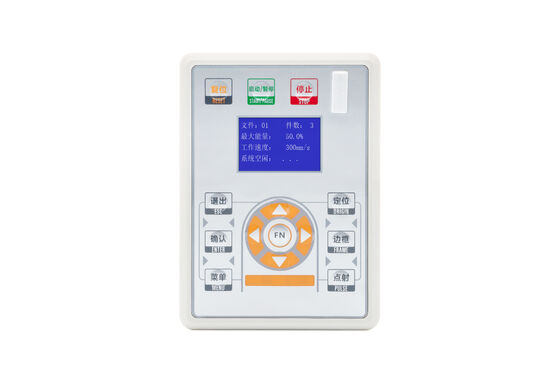

Large Image : RDC5121G Standalone CO2 Laser Cutting And Engraving Controller For Non Metal Processing

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC5121G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	240160120
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RDC5121G Standalone CO2 Laser Cutting And Engraving Controller For Non Metal Processing

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	2	Drive Mode:	External Servo/steeping Driver
Laser Channel:	1	Panel:	2''character Screen + Keys
Communication:	USB	Rotary:	Y Axis Rotation
Encryption:	Support	Software:	RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage
Highlight:	Standalone Laser Cutting And Engraving Controller , CO2 Laser Cutting And Engraving Controller , RDC5121G Laser Controller

RDC5121G Standalone CO2 Laser Cutting And Engraving Controller For Non Metal Processing

The Ruida RDC5121G is an economical standalone laser cutting and engraving control system designed for non-metal processing applications. This compact controller supports offline operation with a 2-inch character display and is compatible with various laser types.

Key Features

Standalone operation capability
USB communication and U flash disk support
Integrated panel and mainboard design for space efficiency
Supports two motion axes with comprehensive laser interfaces
Compatible with RDWorksV8 software including plug-in support and virtual printing
Ideal for leather, fabric, signage, crafts, toys, and 3C applications

Software: RDworks V8 (Free)

Supports PLT, DXF, AI, DST and other file formats with import, display and edit functions. Includes image file processing capabilities.

Technical Specifications

Parameter	RDC5121G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Drive mode	External servo/steeping driver
Axis	2
Laser channel	1
Double heads synchronous	Not Support
Communication	USB
Panel	2'' character screen + keys
Feeding	Not Support
Encryption	Support
Firmware	Remote upgrade mainboard and panel program
Rotary	Y axis rotation
Engraving	Plane engraving, slope engraving and gray engraving
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Including simplified Chinese, traditional Chinese, English and Japanese
Size	L110mmW150mmH25.5mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

Advantages

Cost-Effective: Economical yet powerful laser control solution
Offline Operation: Flexible operation without continuous computer connection
Versatility: Compatible with various laser types for diverse applications
Compact Design: Space-saving integrated panel and mainboard
User Interface: Clear 2-inch display for easy offline navigation
Software Integration: RDWorksV8 and virtual printing for advanced control
