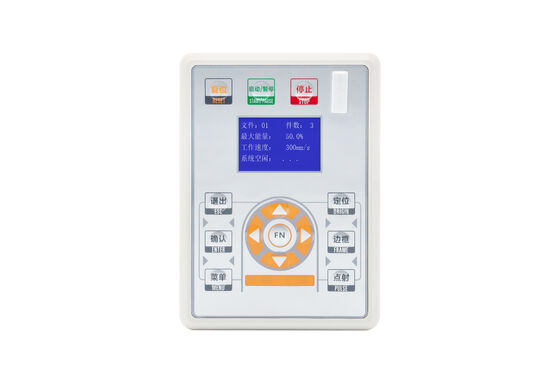

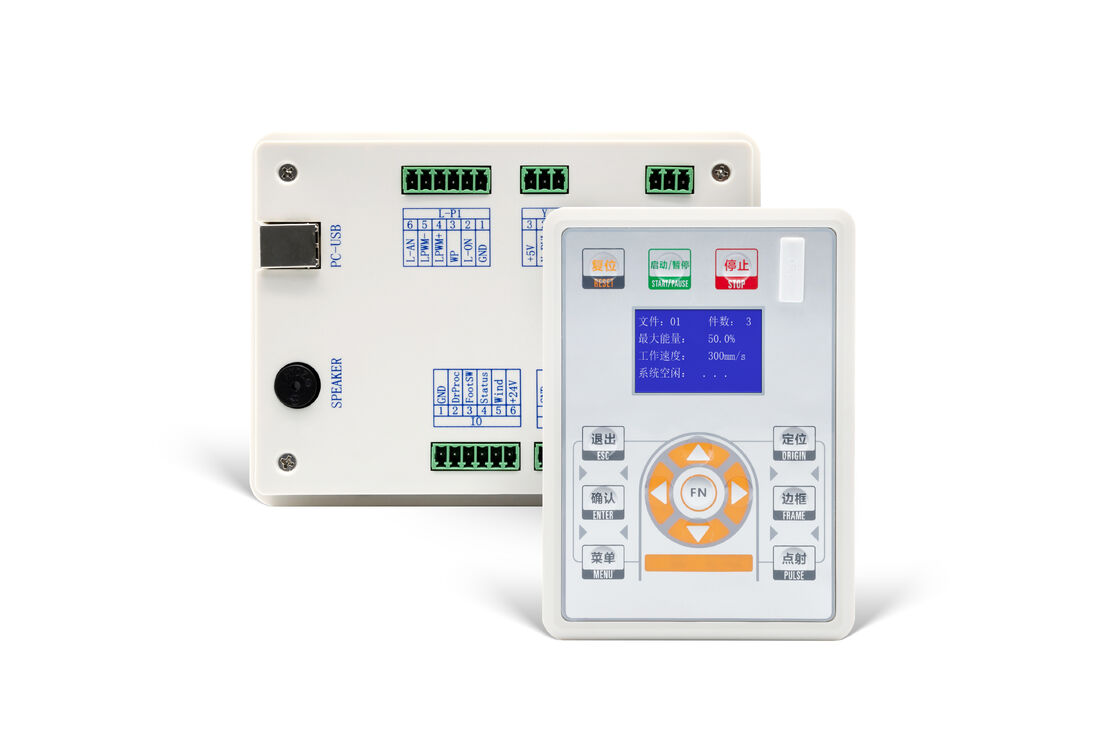

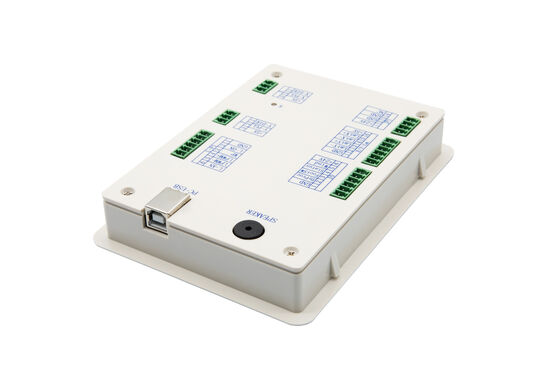

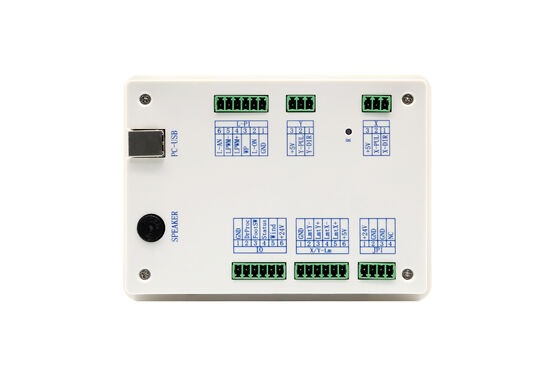

RUIDA RDC5121G Non Metal CO2 Laser Controller 2 Axis Control XY Interpolation

Large Image : RUIDA RDC5121G Non Metal CO2 Laser Controller 2 Axis Control XY Interpolation

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC5121G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	240160120
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDC5121G Non Metal CO2 Laser Controller 2 Axis Control XY Interpolation

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	2	Drive Mode:	External Servo/steeping Driver
Laser Channel:	1	Panel:	2''character Screen + Keys
Communication:	USB	Accessories:	Wireless Handle, RD-APP And RD-WIFI
Encryption:	Support	Software:	RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage
Highlight:	CO2 Laser Controller 2 Axis , CO2 Laser Controller XY Interpolation , RUIDA RDC5121G

RUIDA RDC5121G CO2 Laser Controller For Non-Metal Processing With 2-Axis Control And XY Interpolation

The RDC5121G is a budget-friendly control system for laser cutting and engraving, designed for offline functionality. It supports two-axis control and XY-axis interpolation, and is compatible with both CO2 glass tube and metal RF laser types, offering single laser control. Equipped with a 2-inch character display, it facilitates offline operations and finds broad application across various non-metal processing sectors.

Key Features

Standalone operation capability
Supports USB communication and U flash disk
Compact panel and mainboard integrated design
Supports two motion axes with multiple laser interfaces
Compatible with RDWorksV8 software including plug-in support and virtual printing
Ideal for non-metal cutting applications including leather, fabric, signage, crafts, toys, and 3C products

Software: RDworks V8 (Free)

Supports PLT, DXF, AI, DST and other file formats import with display and edit functions. Includes image file import and processing capabilities.

Technical Specifications

Parameter	RDC5121G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Drive mode	External servo/steeping driver
Axis	2
Laser channel	1
Double heads synchronous	Not Support
Communication	USB
Panel	2'' character screen + keys
Feeding	Not Support
Encryption	Support
Firmware	Remote upgrade mainboard and panel program
Rotary	Y axis rotation
Engraving	Plane engraving, slope engraving and gray engraving
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Including simplified Chinese, traditional Chinese, English and Japanese
Size	L110mmW150mmH25.5mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.
