CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine

CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine
CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine

Large Image :  CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC7132G
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: 240*160*120
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine

Description
Brand: RUIDA Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis: 3 Drive Mode: XY Axis Integrated Two-phase Stepping Driver
Laser Channel: 1 Communication: Ethernet, USB And WIFI (optional)
Panel: 3.5”color Screen + Keys Feeding: Z Axis Feeding, Sheet Feeding
Language: 12 Rotary: Y Axes Rotation
Highlight:

CNC Laser Controller RDC7132G

,

CO2 CNC Laser Controller

,

CO2 Ruida Control Panel

RUIDA RDC7132G CO2 Laser Controller CNC System
Laser Control Panel For CO2 Laser Engraving Cutting Machine ReplaceTrocen Leetro
Product Overview

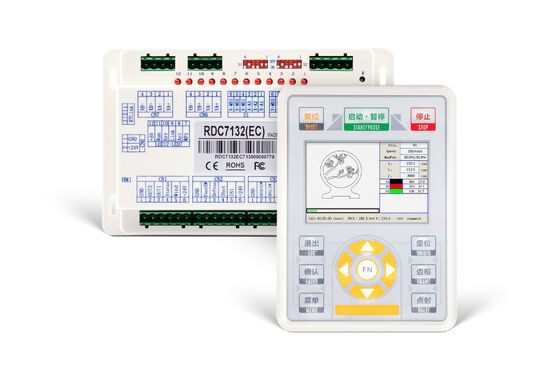

The RDC7132G laser cutting and engraving control system by Ruida Technology features an integrated XY-axis stepper motor driver. For Z-axis control, it requires external step drives. The system includes USB2.0 for PC communication and supports file transfer via USB flash drives.
Key Features
  • Autonomous Operation Capability
  • Compatible with USB and Ethernet interfaces, plus U flash drives

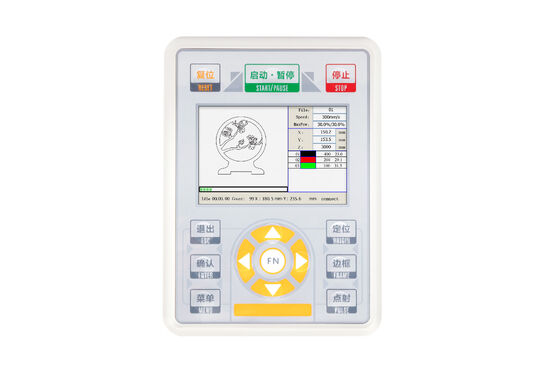

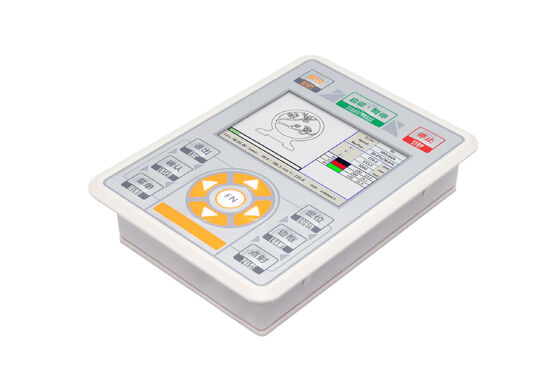

  • 3.5-inch color display with intuitive control buttons
  • Combined drive and control functionality with integrated XY-axis stepper motor driver
  • Multiple laser interfaces with optional external accessories
  • Compatible with RDWorksV8 software, supports add-on software and virtual printing
CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine 0
Software Compatibility
RDworks V8 (Free) supports PLT, DXF, AI, DST and other file formats import, display and edit functions. Includes image file import and processing capabilities.
CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine 1
Technical Specifications
Parameters RDC7132G
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 3
Laser channel 1
Drive mode XY axis integrated two-phase stepping driver
Double heads synchronous Not Support
Communication Ethernet, USB and WIFI (optional)
Panel 3.5" color character screen + keys
Feeding Z axis feeding + sheet feeding
Encryption Support
Onboard clock Not support
Firmware Support the remote upgrade of mainboard program
Rotary Y axis rotation
Engraving Plane engraving, slope engraving and gray engraving
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language 12 languages including English, Chinese, Spanish, German, etc.
Size Panel: 108×148×26.1mm
Mainboard: 180×116.5×33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI
Note Virtual printing only supports Win10
Advantages
  • Autonomous Operation: Standalone operation without continuous computer connection
  • Versatile Connectivity: Multiple communication options including USB, Ethernet, and U flash drives
  • User-Friendly Interface: 3.5-inch color screen with intuitive control keys
  • Integrated Drive and Control: All-in-one system with XY-axis stepper motor drivers
  • Flexible Laser Interfaces: Customizable with various laser interfaces and accessories
  • Advanced Software Support: RDWorksV8 software with virtual printing capabilities
CO2 CNC Laser Controller RDC7132G RUIDA Control Panel For Laser Engraving Cutting Machine 2
