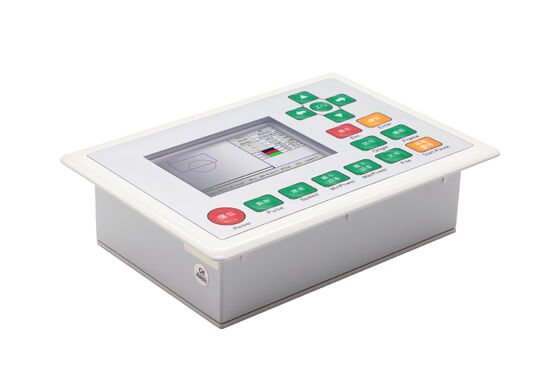

RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine

RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine
RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine

Large Image :  RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6582G
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine

Description
Brand: RUIDA Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis: 8 Communication: Ethernet, USB And WIFI (optional)
Laser Channel: 6 Feeding: U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Panel: 3.5'' Color Screen + Keys Multi-head Synchronous: Support Double, Three, Four, Five And Six Heads Synchronous
Rotary: Y Axes Rotation Engraving: Plane Engraving, Slope Engraving And Gray Engraving
Highlight:

Cutting And Engraving Machine Controller

,

Multi Head Synchronous Laser Controller

,

Co2 Laser Cutter Engraver Controller

RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine
The RDC6582G from Ruida Technology is a state-of-the-art multi-head synchronous laser control system featuring a compact 3.5-inch color touchscreen with intuitive operation. Equipped with versatile IO control interfaces, it supports multiple external interconnection options for seamless equipment integration. This system delivers top-tier motion control performance for both laser processing and adhesive spraying applications.
Key Features
  • Multi-head intelligent synchronous cutting control improves fabric utilization and cutting efficiency
  • 8-axis and 6 laser heads control with independent power adjustment
  • Supports hierarchical data output with separate power, speed and laser method definitions
  • Automatic feeding and lifting functionality
  • Real-time display of processing functions and paths
  • Automatic blow, focusing and security protection features

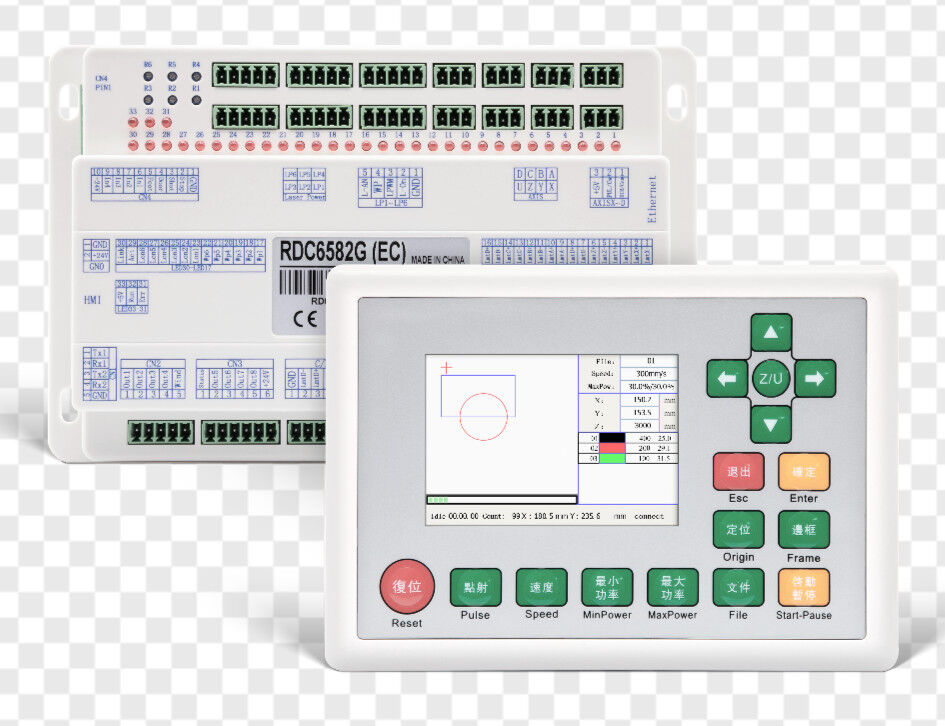

RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine 0
Software Compatibility
Includes RDworks V8 software (free) supporting PLT, DXF, AI, DST and other file formats with import, display and edit functions. Also supports image file import and processing.
RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine 1
Technical Specifications
Parameter RDC6582G
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 8
Laser channel 6
Communication Ethernet, USB and WIFI (optional)

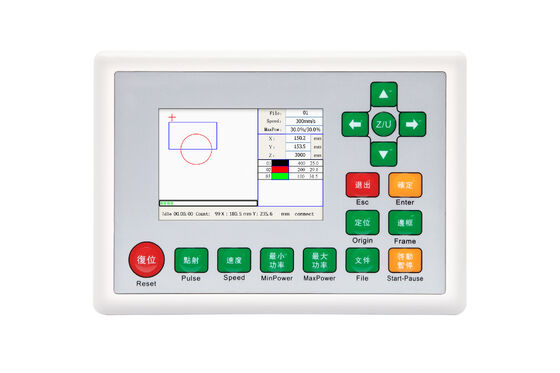

Panel 3.5" color screen + keys
Feeding U axis feeding/Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption Supported
Onboard clock Not Supported
Firmware Supports remote upgrade of mainboard and panel program
Multi-head synchronous Supports double, three, four, five and six heads synchronous
Rotary Y axis rotation
Engraving Plane engraving, slope engraving and gray engraving
Processing Supports resume processing after power failure
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language 12 languages including English, Chinese, Spanish, German, etc.
Size Panel: 170×120×46.8mm

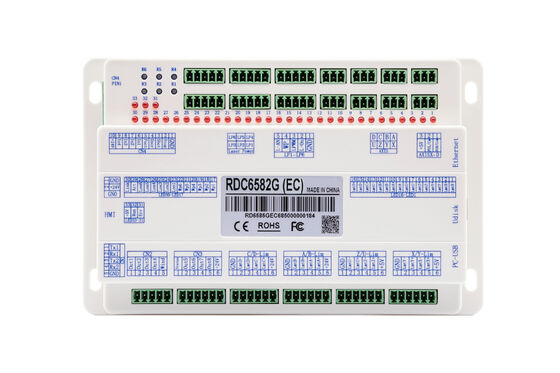

Mainboard: 211.3×136×33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI
Note: Virtual printing only supports Win10.
System Advantages
  • Versatile IO interfaces for broad compatibility
  • Seamless external interconnectivity for enhanced integration
  • Dual capability in laser processing and adhesive spraying
  • Precise motion control for high-accuracy manufacturing
RUIDA RDC6582G Multi Head Synchronous Laser Controller For Cutting And Engraving Machine 2
