RUIDA RDC6582G CO2 Laser Controller Supports Double Three Four Five Six Heads Synchronous

Large Image : RUIDA RDC6582G CO2 Laser Controller Supports Double Three Four Five Six Heads Synchronous

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6582G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDC6582G CO2 Laser Controller Supports Double Three Four Five Six Heads Synchronous

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	8	Communication:	Ethernet, USB And WIFI (optional)
Laser Channel:	6	Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Panel:	3.5'' Color Screen With Keys	Multi-head Synchronous:	Support Double, Three, Four, Five And Six Heads Synchronous
Rotary:	Y Axes Rotation	Engraving:	Plane Engraving, Slope Engraving And Gray Engraving
Highlight:	CO2 Laser Controller RUIDA , 8 Axis Ruida Laser Controller , Synchronous Laser Control System

RUIDA RDC6582G CO2 Laser Controller

Supports Double, Three, Four, Five And Six Heads Synchronous

The RDC6582G, Ruida Technology's sophisticated multi-head synchronous laser control system, boasts a compact 3.5-inch color touchscreen for an intuitive and streamlined operational interface. This advanced system comes with a comprehensive array of general and specialized IO control interfaces, along with multiple external connectivity options, guaranteeing high-level motion control performance. It efficiently handles both laser processing and adhesive spraying tasks, showcasing its versatility and precision in intricate manufacturing environments.

Key Features

Multi-Head Intelligent Synchronous Cutting Control: Enhances fabric utilization rate and raw material cutting efficiency significantly while reducing waste.
8-Axis and 6 Laser Heads Control: Supports single head, double heads, and multi-head control configurations with independent power adjustment for each laser head.
Hierarchical Data Output: Allows for layered data output with separate definition of output power, speed, and laser method for each layer.
Automated Feeding and Lifting: Simplifies the cutting process by automating material handling, reducing manual intervention.

Software Compatibility

RDworks V8 (Free) supports PLT, DXF, AI, DST and other file formats import, display and edit functions. Includes image file import and processing capabilities.

Technical Specifications

Parameter	RDC6582G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	8
Laser channel	6
Communication	Ethernet, USB and WIFI (optional)

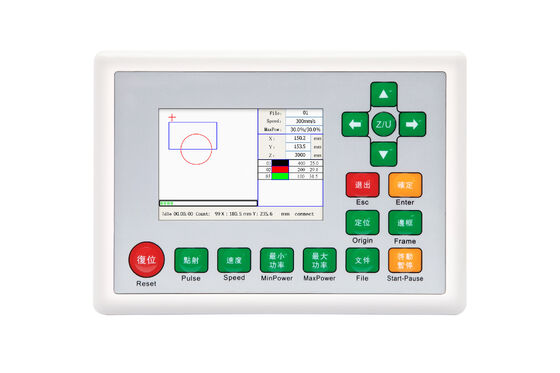

Panel	3.5" color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption	Supported
Firmware	Support the remote upgrade of mainboard and panel program
Multi-head synchronous	Support double, three, four, five and six heads synchronous
Rotary	Y axis rotation
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	13 languages including English, Chinese, French, Russian, etc.

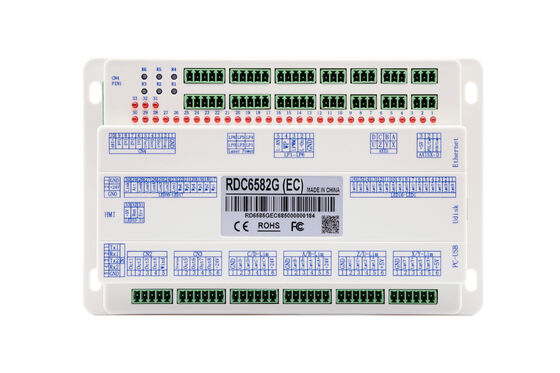

Size	Panel: 170×120×46.8mm Mainboard: 211.3×136×33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

System Advantages

Versatile IO interfaces for broad compatibility
Seamless external interconnectivity for enhanced integration
Dual capability in laser processing and adhesive spraying
Precise motion control for high-accuracy manufacturing
