Metal Height Control CO2 Laser Controller RDV6332M-NET Multi Channel Laser Gas Controller

Large Image : Metal Height Control CO2 Laser Controller RDV6332M-NET Multi Channel Laser Gas Controller

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6332M-NET

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

Metal Height Control CO2 Laser Controller RDV6332M-NET Multi Channel Laser Gas Controller

Description

Brand:	RUIDA	Laser Source:	High Power CO2 Glass Tube Laser And RF Laser
Axis:	3	Communication:	Ethernet, USB And WIFI (optional)
Laser Channel:	2	Panel:	3.5''color Screen + Keys, Linux Operating System
Feeding:	Z Axis Feeding, Sheet Feeding	Height Controller:	Metal Follow Height Control System
Encryption:	Support	Firmware Upgrade:	Panel And Mainboard Support Remote Upgrading
Highlight:	CO2 Laser Controller RDV6332M-NET , Multi Channel CO2 Laser Controller , Multi Channel Laser Gas Controller

RDV6332M-NET CO2 Laser Controller For Metal Height Control Multi Channel Gas Control

The RDV6332ANM-NET is a specialized non-metal visual image laser cutting control system that expands upon the capabilities of the RDC6332M. It offers support for standard CO2 laser cutting and engraving on non-metal materials, along with the ability to independently configure two laser channels. Additionally, it features a non-metal height controller and vision-guided marking for precise positioning.

Key Features

Hybrid Cutting Capability: Capable of mixed cutting for metals and non-metals with a high-power CO2 laser source
Height Control and Gas Management: Integrates with a metal height controller for multi-channel auxiliary gas control

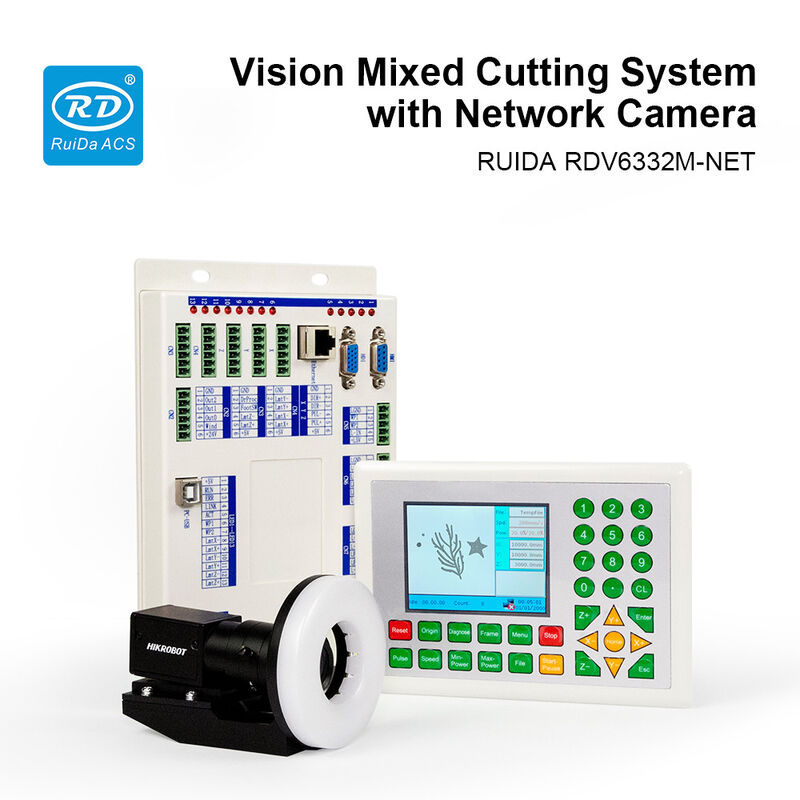

Network Camera for Precision: Equipped with an industrial camera on a network interface for accurate mark point cutting
Broad Industry Application: Extensively used in the advertising industry for mixed material cutting

Technical Specifications

Parameters	RDV6332M-NET
Laser source	High power CO2 glass tube laser and RF laser
Axis	3
Laser channel	2
Communication	Ethernet, USB and WIFI (optional)
Panel	3.5" color screen + keys, Linux operating system
Feeding	Z axis feeding, sheet feeding
Height controller	Metal follow height control system
Auxiliary gas	Support multi-channel auxiliary gas control
Encryption	Support
Onboard clock	Support
Firmware	Remote upgrade of mainboard and panel program
Camera	Cameras of 1.3 and 5 megapixels are available. Lens of 8~12 is available.
Light source	LED red and white circular light source
Cutting	Metal and non-metal mixed cutting; Mark point vision positioning cutting
Engraving	Plane engraving, slope engraving and gray engraving
Software	MetalCut, support punching, lead, bridge and micro connection, RDWorks V8
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean, Italian

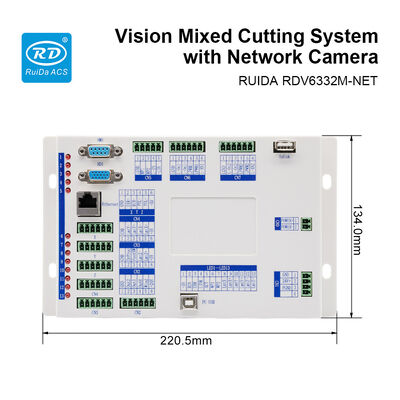

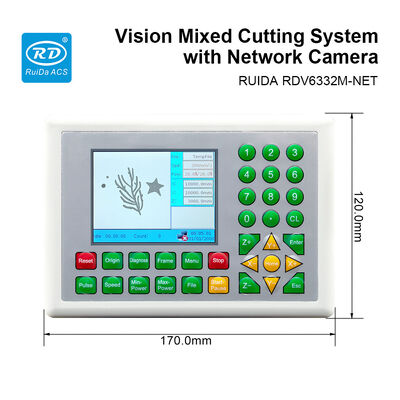

Size	Panel: L170mmW120mmH38.6mm Mainboard: L220.5mmW134mmH29.6mm
Accessories	Wireless handle, RD-APP and RD-WIFI
