RDV6332M-NET CO2 Laser Controller For Mixed Cutting Of Metals And Non Metals

Large Image : RDV6332M-NET CO2 Laser Controller For Mixed Cutting Of Metals And Non Metals

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDV6332M-NET

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RDV6332M-NET CO2 Laser Controller For Mixed Cutting Of Metals And Non Metals

Description

Brand:	RUIDA	Laser Source:	High Power CO2 Glass Tube Laser And RF Laser
Axis:	3	Panel:	3.5''color Screen + Keys, Linux Operating System
Laser Channel:	2	Feeding:	Z Axis Feeding, Sheet Feeding
Encryption:	Support	Light Source:	LED Red And White Circular Light Source
Onboard Clock:	Support	Firmware Upgrade:	Panel And Mainboard Support Remote Upgrading
Highlight:	Mixed CO2 Laser Controller , RDV6332M-NET CO2 Laser Controller

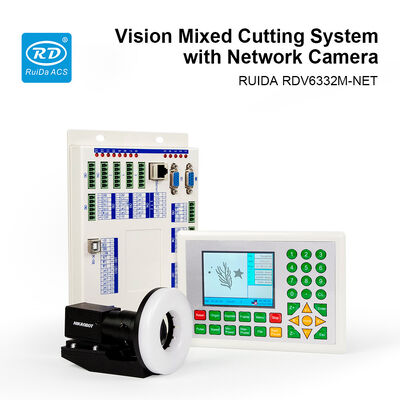

RDV6332M-NET CO2 Laser Controller For Mixed Cutting Of Metals And Non-Metals With Network Camera And Vision System

The RDV6332ANM-NET is an advanced non-metal visual imaging laser cutting control system, building on the strengths of the RDC6332M. It provides capabilities for standard CO2 laser cutting and engraving on non-metals, with dual laser channel configuration. It also includes a non-metal height controller and vision-assisted marking for accurate positioning.

Key Features

Hybrid Cutting Capability: Capable of mixed cutting for metals and non-metals with a high-power CO2 laser source.
Height Control and Gas Management: Integrates with a metal height controller for multi-channel auxiliary gas control.
Network Camera for Precision: Equipped with an industrial camera on a network interface for accurate mark point cutting.
Broad Industry Application: Extensively used in the advertising industry for mixed material cutting.

Technical Specifications

Parameters	RDV6332M-NET
Laser source	High power CO2 glass tube laser and RF laser
Axis	3
Laser channel	2
Communication	Ethernet, USB and WIFI (optional)

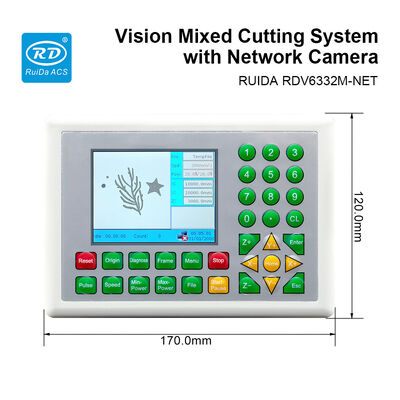

Panel	3.5" color screen + keys, Linux operating system
Feeding	Z axis feeding, sheet feeding
Height controller	Metal follow height control system
Auxiliary gas	Support multi-channel auxiliary gas control
Encryption	Support
Onboard clock	Support
Firmware	Remote upgrade of mainboard and panel program
Camera	Cameras of 1.3 and 5 megapixels are available. Lens of 8~12 is available.
Light source	LED red and white circular light source
Cutting	Metal and non-metal mixed cutting; Mark point vision positioning cutting
Engraving	Plane engraving, slope engraving and gray engraving
Software	MetalCut, support punching, lead, bridge and micro connection, RDWorks V8
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean, Italian
Size	Panel: L170mmW120mmH38.6mm Mainboard: L220.5mmW134mmH29.6mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Product Advantages

High-Power CO2 Laser: For versatile cutting of both metals and non-metals.
Metal Height Controller: Ensures optimal cutting precision with multi-channel gas control.
Network-Enabled Camera: Delivers accurate positioning for intricate mark point cutting.
Dual Laser Channel Configuration: Allows for independent operation of two laser channels.
Vision-Guided Marking: Enhances cutting accuracy with non-metal height control.
Industry-Specific Solutions: Tailored for the advertising industry's diverse material cutting needs.
