Ruida RDC6334G CO2 Laser Controller For Textile Engraving Cutting Machine

Large Image : Ruida RDC6334G CO2 Laser Controller For Textile Engraving Cutting Machine

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDC6334G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDC6334G CO2 Laser Controller For Textile Engraving Cutting Machine

Description

Brand:	RUIDA	Axis:	3
Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers	Feeding:	Z Axis Feeding
Touch Screen:	7'' Touch Screen +xy Arrow Key	Communication:	Ethernet, USB And WIFI (optional)
Operating System:	Linux	Engraving:	Plane Engraving, Slope Engraving And Gray Engraving
Rotary:	Y Or U Axis Rotation Mode Is Optional	Software:	RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDPlug
Highlight:	RDC6334G CO2 Controller , 3 Axis CO2 Laser Controller , Laser Engraving Cutting Machine Controller

Ruida RDC6334G CO2 Laser Controller For Textile Engraving Cutting Machine

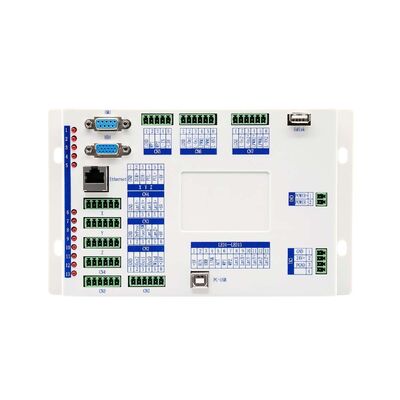

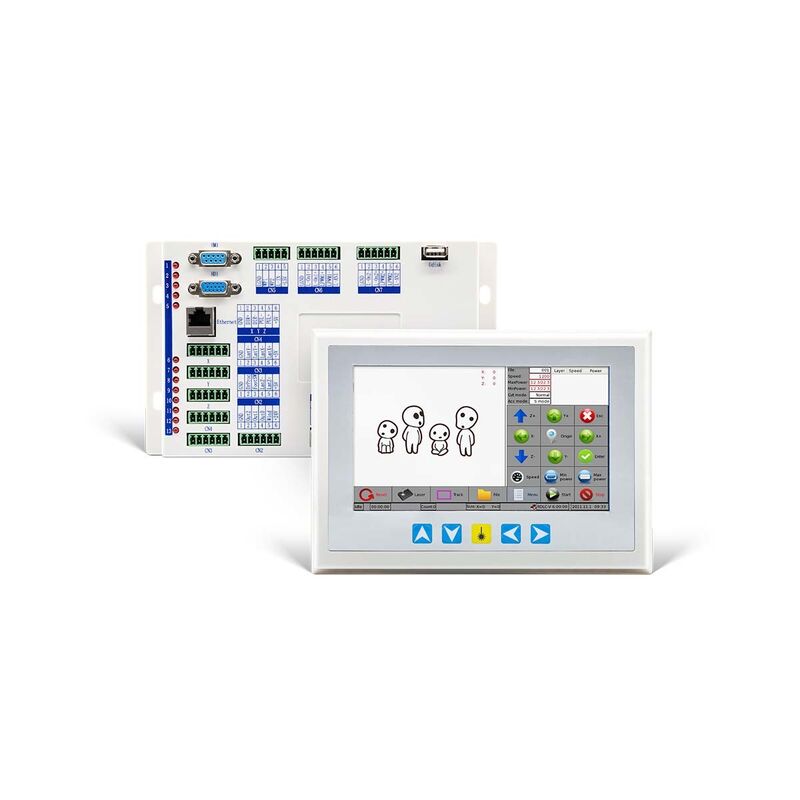

The Ruida RDC6334G CO2 Laser Controller is designed for textile engraving and cutting machines, featuring superior anti-high voltage and anti-static characteristics. This advanced control system offers enhanced hardware stability with a user-friendly interface and powerful functionality.

Key Features

Supports standalone operation and USB processing
Enables offline modification of file attributes, manufacturer and user parameters
Provides working hours preview with millisecond accuracy
Displays real-time processing path, coordinate points and progress bar
Features automatic focusing via panel with manual/auto focus options
Supports manual input or automatic acquisition of docking point coordinates
Compatible with various external accessories (wireless handheld box, RD-APP, RD-WIFI)
Includes extended interface for custom external device integration

Technical Specifications

Brand	RUIDA
Model	RDC6334G
Laser Source	CO2 glass tube, CO2 RF tube and UV lasers
Laser Channel	2
Double Heads Asynchronous	Supported
Communication Interface	Ethernet, USB and WIFI (optional)
Feeding	Z axis feeding

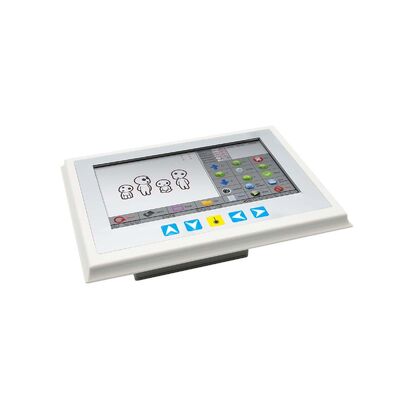

Panel	7" touch screen + XY arrow key
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
Engraving Function	Plane engraving, slope engraving and gray engraving
