Ruida RDC6344G CO2 Laser Controller Robust Protection And Easy Operation

Large Image : Ruida RDC6344G CO2 Laser Controller Robust Protection And Easy Operation

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDC6344G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDC6344G CO2 Laser Controller Robust Protection And Easy Operation

Description

Brand:	RUIDA	Axis:	3
Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers	Feeding:	Z Axis Feeding
Touch Screen:	7'' Touch Screen +xy Arrow Key	Communication:	Ethernet, USB And WIFI (optional)
Processing:	Support Resume Processing After Power Failure	Engraving:	Plane Engraving, Slope Engraving And Gray Engraving

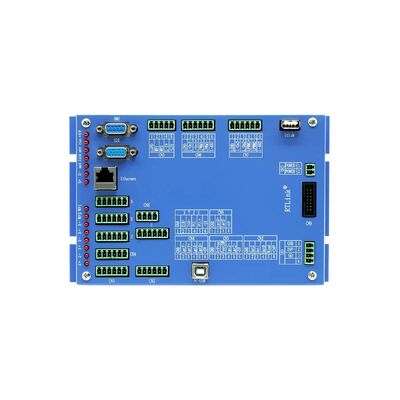

Software:	RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDPlug	Size:	Panel: L210.7mmW150.6mmH45.6mm Mainboard: L210mmW134mmH25mm
Highlight:	Ruida RDC6344G , CO2 Laser Controller Easy Operation , CO2 Laser Controller Robust Protection

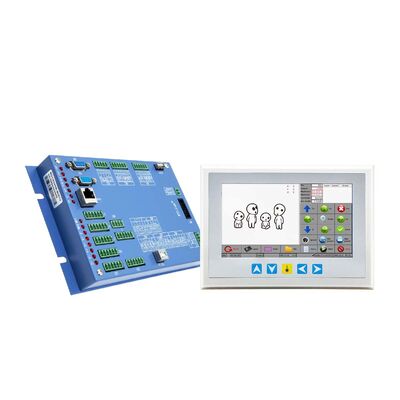

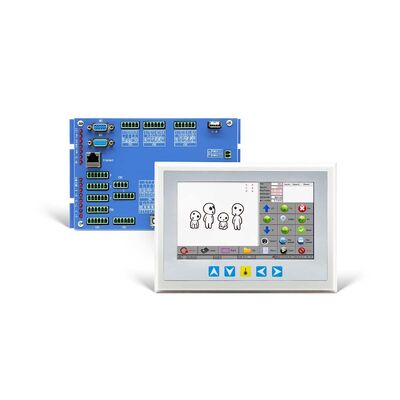

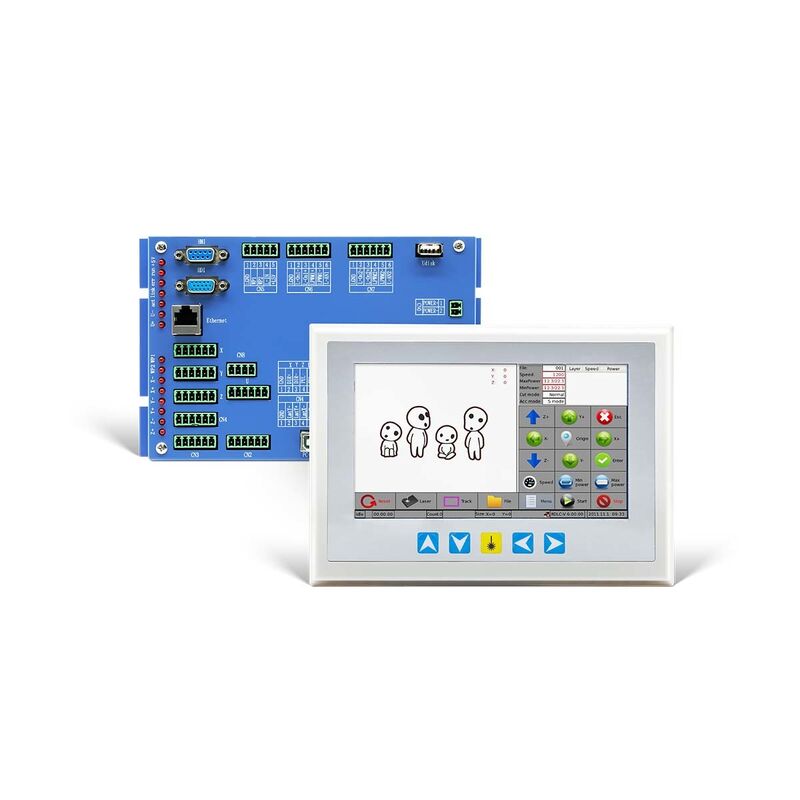

Ruida RDC6344G CO2 Laser Controller

Robust Protection and Easy Operation for Industrial Reliability

The RDC6334G is a professional laser engraving and cutting control system from Ruida Technology. Engineered for industrial reliability, it features robust protection against electrical interference and static discharge. The system combines an intuitive user interface with advanced functionality, making it suitable for both newcomers and experienced operators in laser processing applications.

Key Features

Support standalone operation and U disk processing
Offline modification of file attributes, manufacturer and user parameters
Working hours preview with millisecond accuracy
Real-time display of processing path, coordinate points and progress bar
Automatic focusing by panel with manual and automatic focusing support
Manual input or automatic acquisition of docking point coordinates
Optional external accessories (wireless handheld box, RD-APP and RD-WIFI)
Extended interface for external device customization

Technical Specifications

Brand	RUIDA
Model	RDC6344G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Laser channel	2
Axis	4
Communication interface	Ethernet, USB and WIFI (optional)
Feeding	Z axis feeding

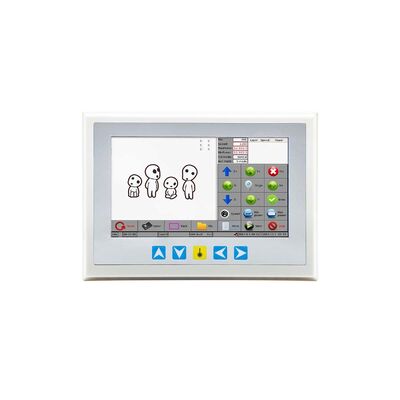

Panel	7'' touch screen +xy arrow key
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
Engraving function	Plane engraving, slope engraving and gray engraving

Product Images
