Ruida RDC6334G CO2 Laser Controller 3 Axis For Laser Engraving Cutting Machine

Large Image : Ruida RDC6334G CO2 Laser Controller 3 Axis For Laser Engraving Cutting Machine

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDC6334G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDC6334G CO2 Laser Controller 3 Axis For Laser Engraving Cutting Machine

Description

Brand:	RUIDA	Model:	RDC6334G
Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers	Feeding:	Z Axis Feeding
Touch Screen:	7'' Touch Screen +xy Arrow Key	Communication:	Ethernet, USB And WIFI (optional)
Axis:	3	Engraving:	Plane Engraving, Slope Engraving And Gray Engraving
Rotary:	Y U Axis Rotation	Software:	RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDPlug
Highlight:	CO2 Laser Controller 3 Axis , RDC6334G CO2 Laser Controller

Ruida RDC6334G CO2 Laser Controller for Laser Engraving-Cutting Machine

The RDC6334G is a professional laser engraving and cutting control system from Ruida Technology. Engineered for industrial reliability, it features robust protection against electrical interference and static discharge. The system combines an intuitive user interface with advanced functionality, making it suitable for both newcomers and experienced operators in laser processing applications.

Key Features

Operation Modes

Independent standalone operation capability
USB flash drive compatibility for file processing
Wireless control options via RD-APP and RD-WIFI
Optional wireless handheld controller support

File Management & Parameters

Offline editing of file properties
Customizable manufacturer and user parameter settings
Precise processing time preview (millisecond accuracy)

Processing Control

Real-time visualization of:
- Processing pathway
- Coordinate position
- Progress monitoring
Advanced focusing system:
- Automatic focusing function
- Manual focusing option
- Docking point coordination (manual input or auto-detection)

System Integration

Expandable interface for external devices
Flexible customization options
Compatible with various auxiliary accessories
Easy integration with third-party equipment

Technical Specifications

Brand	RUIDA
Model	RDC6334G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Laser channel	2
Axis	3
Communication interface	Ethernet, USB and WIFI (optional)
Feeding	Z axis feeding
Panel	7'' touch screen +xy arrow key
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
Engraving function	Plane engraving, slope engraving and gray engraving

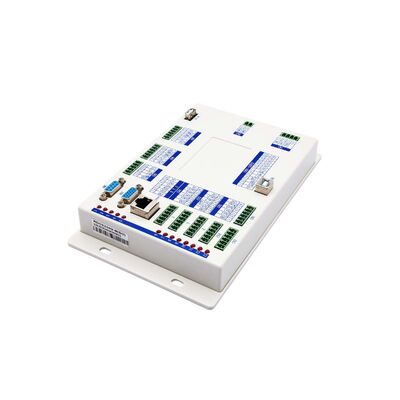

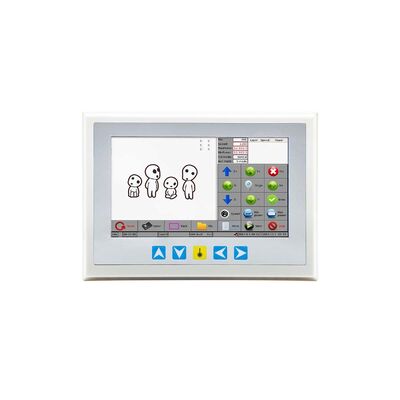

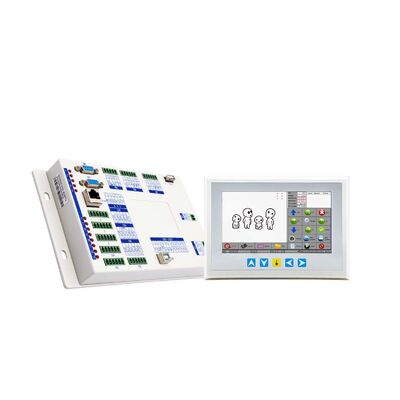

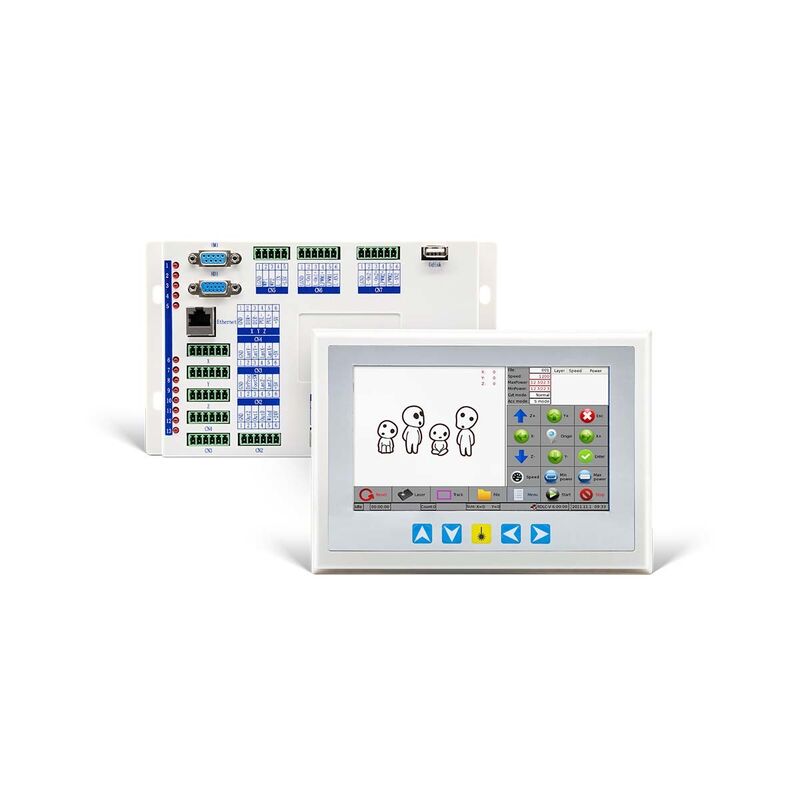

Product Images

Tag:

Contact Person: Ms. Cyan LIANG

Tel: +8613410708106
