RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel

RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel
RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel

Large Image :  RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6445G-DFM-RD
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel

Description
Brand: RUIDA Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis: 4 Communication: Ethernet, USB And WIFI (optional)
Laser Channel: 2 Panel: 5'' Color Screen + Keys
Pulse Frequency: 400KHz Feeding: U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Encryption: Support Software: RDVisionWorks，RDWorksV8
Highlight:

RDC6445G-DFM-RD Control Panel

,

CO2 Laser Cut Control Panel

,

4 Axes CO2 Laser Controller

RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel

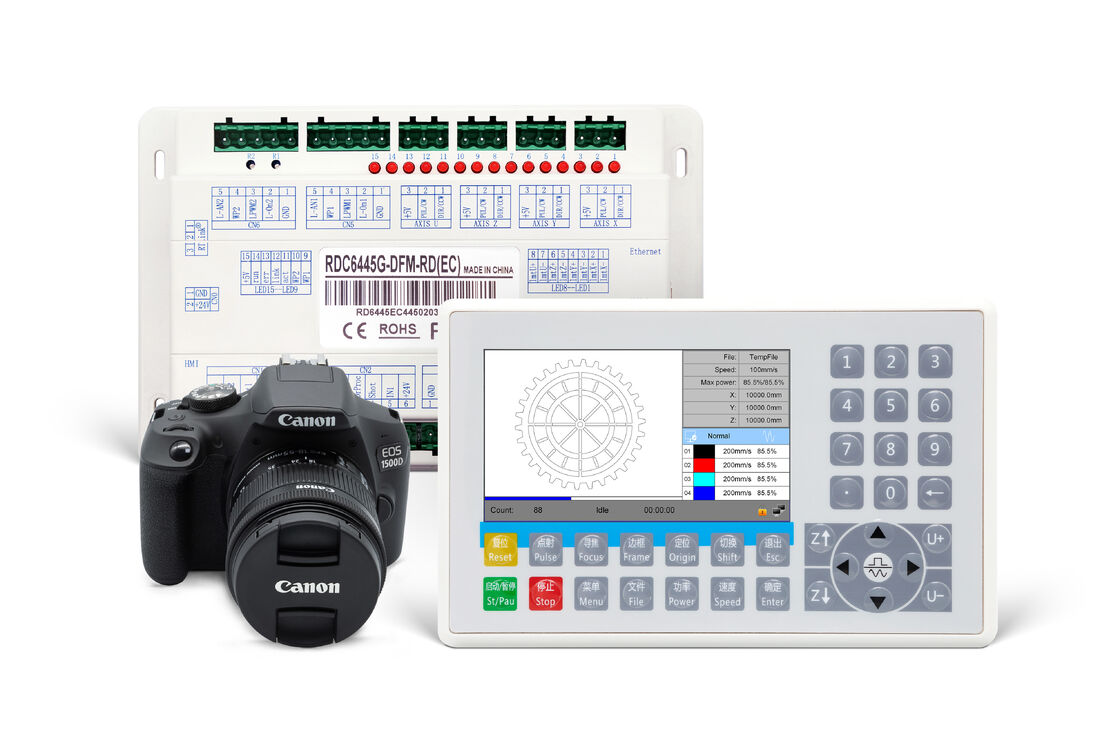

The RDC6445G-DFM-RD system is a high-performance control system that supports up to 4 axes, offering a rich laser interface and extensive external IO resources for flexible integration. It features a high-resolution camera for detailed panoramic and large-format imaging, along with advanced feature positioning and automatic edge-finding capabilities, making it an ideal solution for precise laser operations across various applications.
Key Features
  • Standalone operation with 128MB onboard memory
  • Supports USB/Ethernet communication and U disk connectivity
  • 4-axis support with dual laser interface and multi-channel I/O
  • Panel-based modification of manufacturer/user parameters
  • Manual/continuous jog switching, automatic focus, and docking point setting
  • Automatic feeding support for large format visual cutting
  • High-resolution camera with advanced graphics processing for feature positioning and automatic contour recognition
RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel 0
RDVision Software (Free)
RDVisionWorks is a large format intelligent visual cutting software that captures the entire machine plane image at once, extracts image contours, and performs template matching recognition. The software supports full automation of feeding, photography, identification, and cutting processes.
RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel 1
Technical Specifications
Parameter Specification
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads synchronous Supported
Communication Ethernet, USB and WIFI (optional)
Panel 5" color screen + keys
Feeding U axis feeding, Y/U axes synchronous feeding, sheet feeding, large format segmentation feeding
Encryption Supported
Onboard clock Not supported
Firmware Remote upgrade support for mainboard and panel program
Camera 24MP resolution, 10-18mm and 18-55mm focal length options
Cutting Feature positioning, automatic contour extraction and deformation matching
Engraving Plane engraving, slope engraving and gray engraving
Software RDVisionWorks, RDWorksV8
Language Support 13 languages including English, Chinese, French, Russian, etc.
Dimensions Panel: 199.5×124.5×42.1mm
Mainboard: 180×116.6×33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI
RDC6445G-DFM-RD CO2 Laser Controller 128M Memory Laser Cut Control Panel 2
