RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U

RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U
RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U

Large Image :  RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6685U
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U

Description
Brand: RUIDA Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis: 8 Multi-head Synchronous: Double Coordinates System Control, Support Double Head Asynchronous And Synchronous
Laser Channel: 4 Communication: Ethernet, USB And WIFI (optional)
Panel: 5'' Color Screen + Keys Feeding: U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Pulse Frequency: 400KHz Software: RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage
Highlight:

RUIDA Laser Control Panel

,

CO2 Laser Control Panel

,

Engraving Cutting Laser Control Panel

RUIDA RDC6685U CO2 Card System Laser Control Panel Controller
RUIDA RDC6685U CO2 Laser Controller Card System Laser Control Panel For CO2 Laser Engraving Cutting Machine Replace 6442U 6445U
Description of RDC6685U

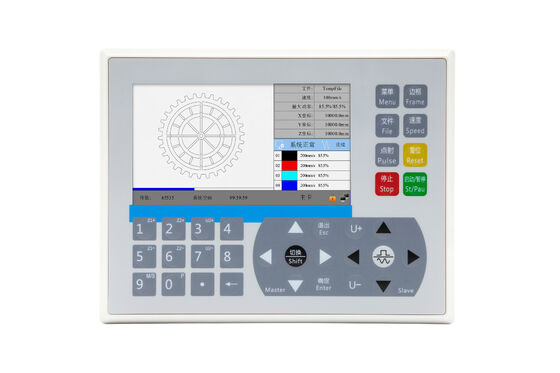

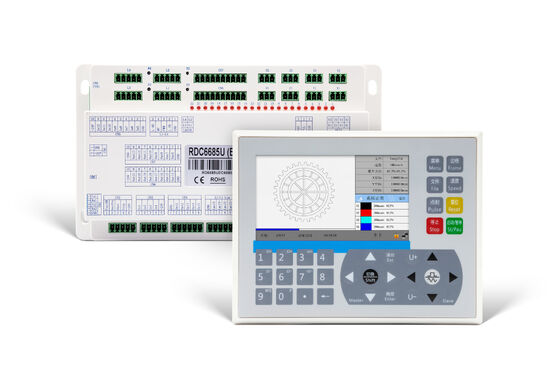

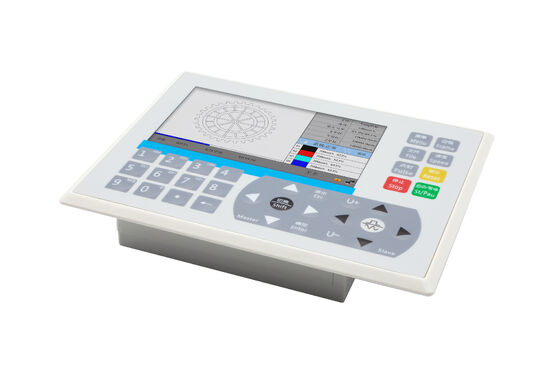

The RDC6685U, Ruida Technology's newest addition to dual X/Y coordinate system controllers, features improved hardware reliability and exceptional protection against high voltage and electrostatic disruption. It is furnished with a 5-inch color screen HMI for an intuitive interface and advanced capabilities.
Key Features
  • Self-Contained Operation: Designed for standalone use, it includes USB, Ethernet, and U flash disk connectivity.
  • Versatile Interfaces: Comes with an array of laser interfaces and broad external IO capabilities.
  • Synchronized Dual Systems: Enables dual-beam synchronization and handles both simultaneous and sequential dual-head processing.
  • Automated Material Handling: Includes features for automated feeding and extensive visual cutting for large formats.
  • High-Performance Cutting: Suited for efficient laser cutting in large-scale graphic designs and textiles, including clothing, leather, and fabric.
RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U 0
Software UnionLaser (Free)
The Unionlaser software for double heads synchronous work can not only make an intelligent assignment of the double heads processing, but also control the coordination for the main and slave controllers.
RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U 1
Technical Parameters
Parameters RDC6685U
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 8
Laser channel 4
Multi-head synchronous Double coordinates system control, support double head asynchronous and synchronous
Communication Ethernet, USB and WIFI (optional)
Panel 5" color screen + keys
Feeding U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption Support
Onboard clock Support (support the modification of time)
Firmware Remote upgrade of panel and mainboard program
Cutting Ordinary cutting
Engraving Plane engraving, slope engraving and gray engraving
Software UnionLaser, RDWorksV8, RDVisionWorks
Language Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian
Size Panel: L180mm*W140mm*H42.1mm

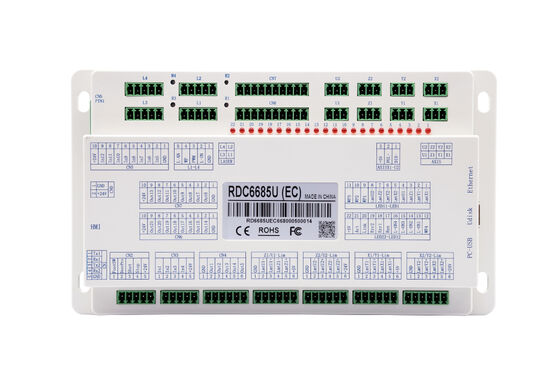

Mainboard: L236*W137*H33.5mm
Accessories Wireless handle and RD-WIFI
Why Choose Us
  • Self-Sufficient Operation
  • Interface Flexibility
  • Dual-System Synergy
  • Automated Precision
  • Optimized for Efficiency
Choose our system for its combination of reliability, flexibility, and high performance.
RUIDA RDC6685U CO2 Card System Laser Control Panel Controller For Engraving Cutting Machine Replace 6442U 6445U 2
