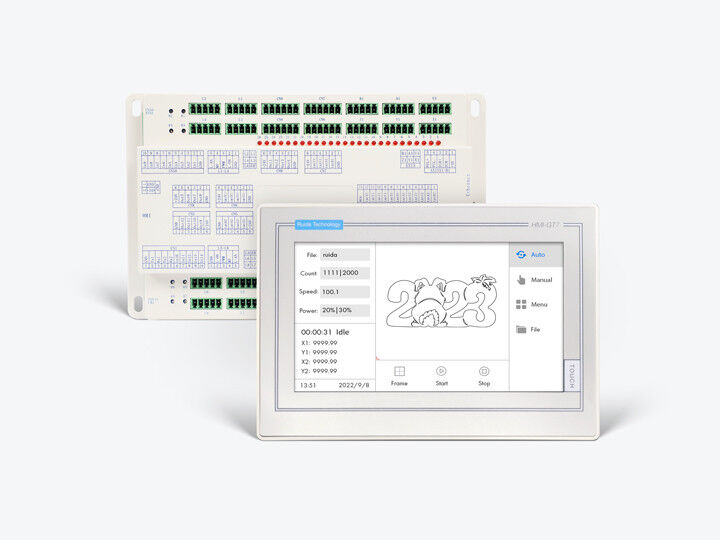

Ruida RDC6612U CO2 Laser Controller for Dual Cantilever Cutting

Large Image : Ruida RDC6612U CO2 Laser Controller for Dual Cantilever Cutting

Product Details:

Place of Origin:	China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6612U

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	USD500-600/Set
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	T/T, D/P, D/A, Western Union
Supply Ability:	100 sets/day

Contact Now Chat Now

Ruida RDC6612U CO2 Laser Controller for Dual Cantilever Cutting

Description

Brand:	RUIDA	Model:	RDC6612U
Axis:	12	Laser Channel:	8
Multi-head Synchronous:	Double Coordinates System Control,support Double Heads Asynchronous And Four Heads Synchronous	Laser Cutting:	Dual Beams
Laser Source:	CO2 Glass Tube,CO2 RF Tube,and UVlasers	Communication:	Ethernet,USB And WIFI (optional)
Feeding:	Yand U Axes Feeding Synchronously,sheet Feeding/large Format Segmentation Feeding,repeat Multiple Plates Feeding	Size:	Panel:L147mmW95mmH33.5mm;Mainboard:L240mmW151.5mmH33.5mm
Highlight:	Cloth Processing CO2 Laser Controller , Double Cantilever CO2 Laser Controller , RDC6612U CO2 Laser Controller

Ruida RDC6612U CO2 Laser Controller for Dual Cantilever Cutting

Ruida RDC6612U CO2 Laser Controller for Cloth Processing with Double Cantilever Asynchronous Cutting

Product Specifications

Attribute	Value
Brand	RUIDA
Model	RDC6612U
Axis	12
Laser channel	8
Multi-head synchronous	Double coordinates system control, support double heads asynchronous and four heads synchronous
Laser cutting	Dual beams
Laser source	CO2 glass tube, CO2 RF tube, and UV lasers
Communication	Ethernet, USB and WIFI (optional)
Feeding	Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding, repeat multiple plates feeding
Size	Panel: L147mmW95mmH33.5mm; Mainboard: L240mmW151.5mmH33.5mm

Product Description

The RDC6612U series represents Ruida Technology's latest innovation in dual-axis laser cutting control systems, engineered for high-efficiency industrial applications. Available in two models: the standard RDC6612U and the advanced RDC6612U-DFM with panoramic vision capabilities.

Key Features & Benefits

Dual Coordinate System Technology
Supports Double-beam and double-cantilever configurations
Independent asynchronous cutting control
Up to 4 synchronized laser heads per XY coordinate system
Maximum processing flexibility
7" touch screen with parameter modification and graphics display
Remote firmware upgrade capability
Compatible with multiple laser sources
Supports 18 megapixels SLR camera
Compatible with RDWorksV8, UnionLaser, and RDVisionWorks software
