Ruida RDC6612U CO2 Laser Controller for Dual Cantilever Cutting

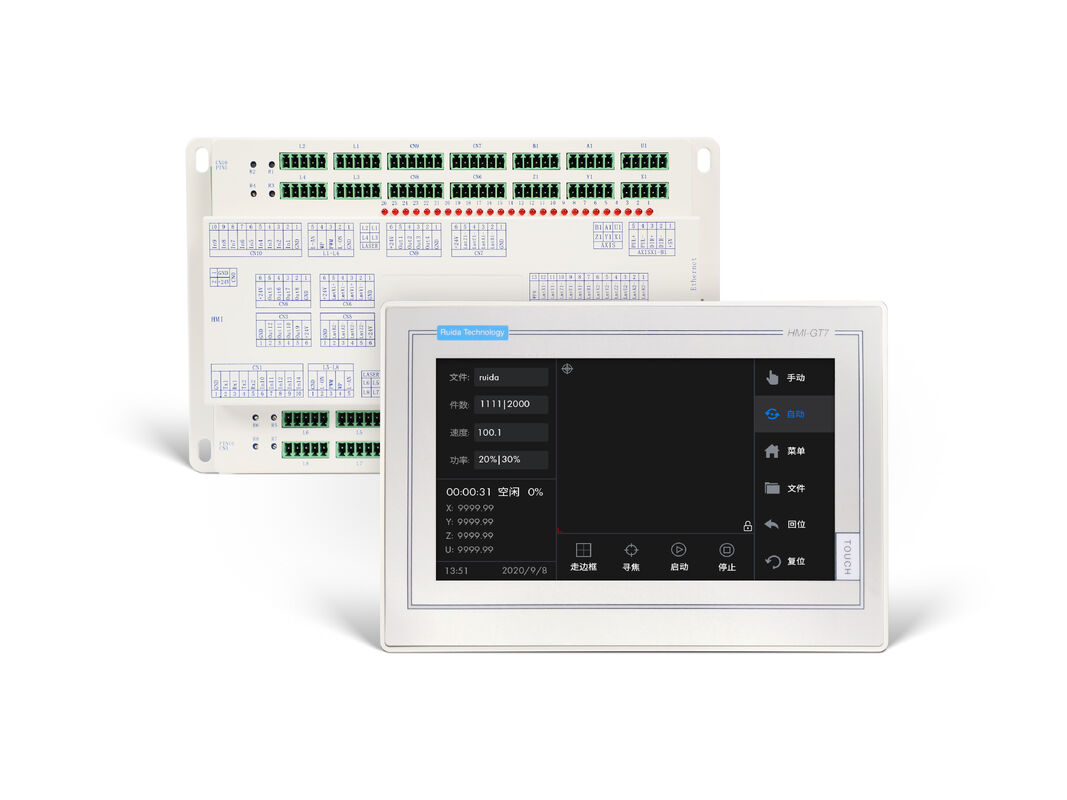

Large Image : Ruida RDC6612U CO2 Laser Controller for Dual Cantilever Cutting

Product Details:

Place of Origin:	China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6612U

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	USD500-600/Set
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	T/T, D/P, D/A, Western Union
Supply Ability:	100 sets/day

Contact Now Chat Now

Ruida RDC6612U CO2 Laser Controller for Dual Cantilever Cutting

Description

Brand:	RUIDA	Model:	RDC6612U
Axis:	12	Laser Channel:	8
Multi-head Synchronous:	Double Coordinates System Control,support Double Heads Asynchronous And Four Heads Synchronous	Laser Cutting:	Dual Beams
Laser Source:	CO2 Glass Tube,CO2 RF Tube,and UVlasers	Communication:	Ethernet,USB And WIFI (optional)
Feeding:	Yand U Axes Feeding Synchronously,sheet Feeding/large Format Segmentation Feeding,repeat Multiple Plates Feeding	Software:	RDWorksV8,UnionLaser,RDVisionWorks
Highlight:	Ruida Cutter And Engraver Controller , RDC6612U Laser Controller , 12 Axis CO2 Laser Controller

Ruida RDC6612U CO2 Laser Controller for Dual Cantilever Cutting

Ruida RDC6612U CO2 Laser Controller With Double Cantilever Asynchronous Cutting

Product Specifications

Attribute	Value
Brand	RUIDA
Model	RDC6612U
Axis	12
Laser channel	8
Multi-head synchronous	Double coordinates system control, support double heads asynchronous and four heads synchronous
Laser cutting	Dual beams
Laser source	CO2 glass tube, CO2 RF tube, and UV lasers
Communication	Ethernet, USB and WIFI (optional)
Feeding	Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding, repeat multiple plates feeding
Software	RDWorksV8, UnionLaser, RDVisionWorks

Product Overview

Transform your industrial cutting operations with Ruida Technology's RDC6612U series controllers. This advanced system features dual coordinate control technology, available in standard and panoramic vision models. Designed for high-volume production environments, it supports multiple cutting configurations including Double-beam and double-cantilever setups. With intelligent task management and collision prevention, it's the ideal solution for efficient processing of textiles, leather, and garments.

Key Features

7" touch screen panel with parameter modification and graphics display
Onboard clock with time modification support
Advanced engraving functions: Plane, Slope, and Gray engraving
18 megapixels SLR camera
Intelligent collision prevention system
Optimized graphics distribution algorithm
Enhanced task balancing for dual-head operations
Real-time monitoring and control

Industrial Applications

Garment manufacturing
Leather processing optimization
Textile cutting solutions
High-volume production environments

Product Images
