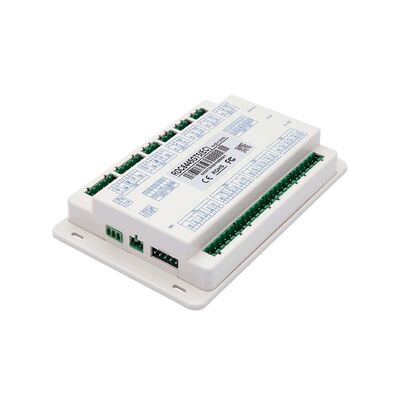

Ruida CO2 Laser Controller RDC6445GT7 For Textile Engraving Cutting Machine Standalone

Large Image : Ruida CO2 Laser Controller RDC6445GT7 For Textile Engraving Cutting Machine Standalone

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDC6445GT7

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida CO2 Laser Controller RDC6445GT7 For Textile Engraving Cutting Machine Standalone

Description

Brand:	RUIDA	Axis:	4
Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers	Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Double Heads Synchronous:	Support	Communication:	Ethernet, USB And WIFI (optional)
Encryption:	Support	Engraving:	Plane Engraving, Slope Engraving And Gray Engraving
Rotary:	Y Or U Axis Rotation Mode Is Optional	Software:	RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDPlug
Highlight:	Standalone CO2 Laser Controller , Textile Cutting Machine Laser Controllers , Laser Engraving Machine Controller

Ruida CO2 Laser Controller RDC6445GT7 For Textile Engraving Cutting Machine Standalone

The RDC6445GT7 is a 7-inch color touchscreen HMI CO2 laser controller designed for textile engraving and cutting machines by Ruida Technology. This advanced control system features enhanced hardware stability and improved resistance to high voltage and static interference.

Key Features and Capabilities

Standalone operation capability
Supports USB, Ethernet communication and U flash disk
Optional 5" or 7" touch screen interface
User-upgradable panel program and boot screen
Supports 4 motion axes with two laser interfaces
Multi-channel general I/O input and output
Compatible with fixed single/double laser head processing
Supports double heads synchronous processing
Ultra-wide segmentation cutting processing capability
Works with RDWorksV8 application software
Ideal for non-metal cutting applications including leather, fabric, signs, and 3C products

Technical Specifications

Brand	RUIDA
Model	RDC6445GT7
Laser Source	CO2 glass tube, CO2 RF tube and UV lasers
Laser Channels	2
Double Heads Asynchronous	Supported
Communication Interface	Ethernet, USB and WIFI (optional)
Feeding Options	U axis feeding, Y/U axes synchronous feeding, sheet/large format segmentation feeding
Panel	5" touch screen with screen lock and boot screen upgrade capability
Software	RDWorksV8, RDPlug plugin software, virtual printing
Engraving Functions	Plane engraving, slope engraving and gray engraving

Product Images
