RUIDA RDC6445G CO2 Laser Controller With 4 Motion Axes And Multi-Channel Control For Versatile Processing

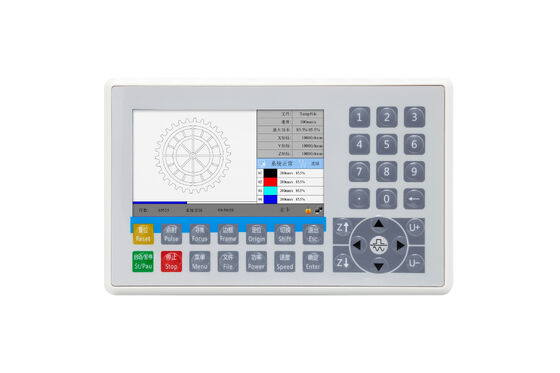

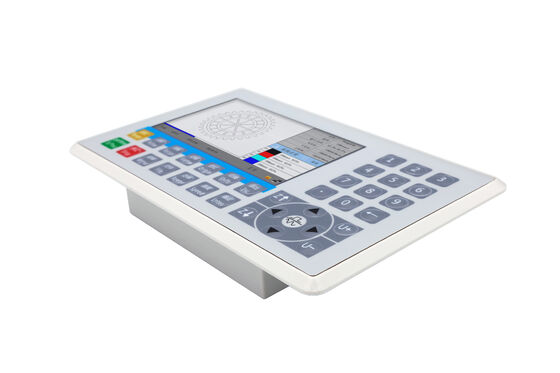

Large Image : RUIDA RDC6445G CO2 Laser Controller With 4 Motion Axes And Multi-Channel Control For Versatile Processing

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6445G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RUIDA RDC6445G CO2 Laser Controller With 4 Motion Axes And Multi-Channel Control For Versatile Processing

Description

Brand:	RUIDA	Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:	4	Panel:	5˝ Color Screen + Keys
Laser Channel:	2	Communication:	Ethernet, USB And WIFI (optional)
Double Heads Synchronous:	Support	Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Encryption:	Support	Rotary:	Y Or U Axis Rotation Mode Is Optional
Highlight:	Multi-Channel Control CO2 Laser Controller , 4 Motion Axes CO2 Laser Controller , Versatile Processing CO2 Laser Controller

RUIDA RDC6445G CO2 Laser Controller With 4 Motion Axes And Multi-Channel Control

Ruida Technology's RDC6445G represents a significant advancement in laser engraving and cutting technology. This advanced control system features improved hardware stability and enhanced resistance to high voltage and static electricity, combined with an intuitive 5-inch color screen interface.

Key Features

Standalone operation and U disk processing support
Panel-based file attribute and parameter modification
Millisecond-accurate working hours preview
Real-time display of processing path, coordinates, and progress
Automatic and manual focusing capabilities
Extended interface for custom external device integration
Ideal for non-metal cutting applications including leather, fabric, signage, and 3C products

Included Software: RDworks V8 (Free)

Supports PLT, DXF, AI, DST and other file formats with import, display and edit functions. Includes image file processing capabilities.

Technical Specifications

Parameter	RDC6445G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser channel	2
Double heads synchronous	Supported
Communication	Ethernet, USB and WIFI (optional)
Panel	5˝ color screen + keys
Laser cutting	Single beam
Feeding	U axis feeding, Y/U axes synchronous feeding, sheet feeding, large format segmentation
Encryption	Supported
Firmware	Remote upgrade support for mainboard and panel
Rotary	Y or U axis rotation mode optional
Engraving	Plane, slope and gray engraving
Processing	Resume after power failure supported
Software	RDWorksV8, RDPlug, virtual printing, RDImage
Language	Simplified Chinese, English
Dimensions	Panel: 199.5×124.5×42.1mm Mainboard: 180×116.6×33.1mm
Accessories	Wireless handle, RD-APP, RD-WIFI

Note: Virtual printing only supports Windows 10.
