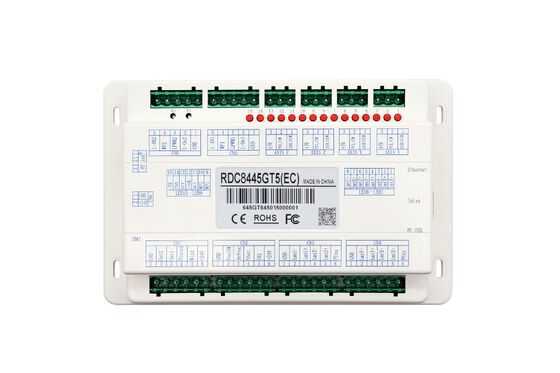

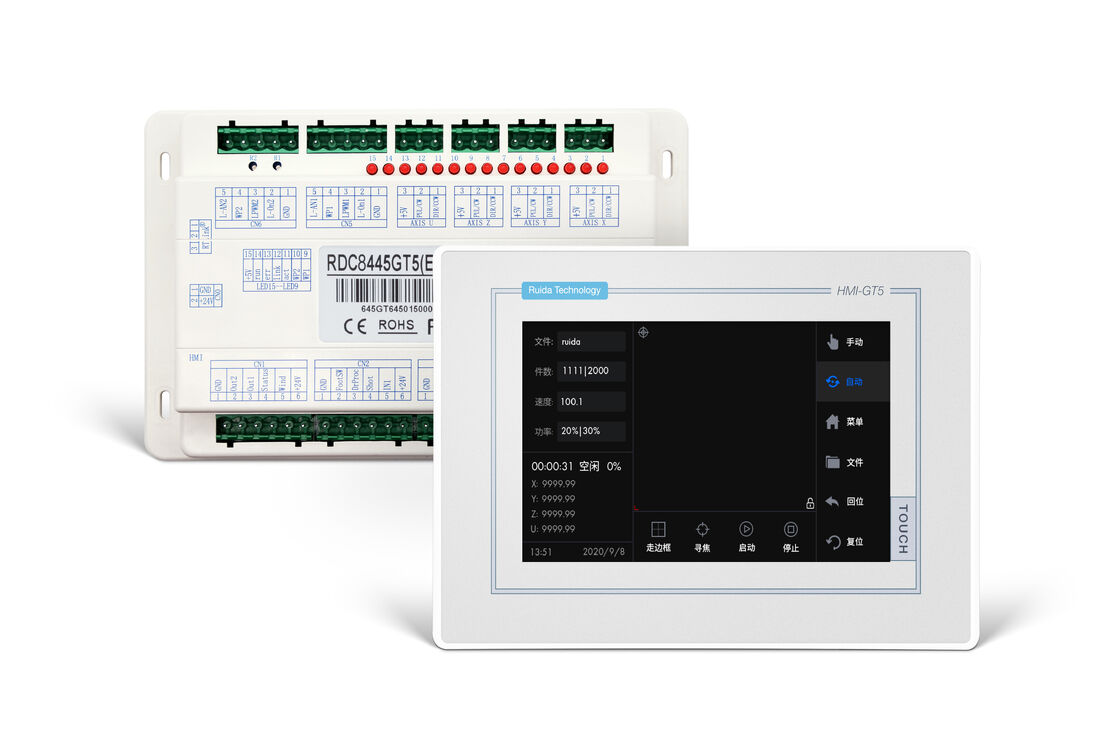

Ruida RDC8445GT5 CO2 Laser Controller with 4 Axis and WIFI

Large Image : Ruida RDC8445GT5 CO2 Laser Controller with 4 Axis and WIFI

Product Details:

Place of Origin:	CHINA
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC8445GT5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 Sets/Day

Contact Now Chat Now

Ruida RDC8445GT5 CO2 Laser Controller with 4 Axis and WIFI

Description

Rotary:	Y Or U Axis Rotation Mode Is Optional	Axis:	4
Double Heads Synchronous:	Support	Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/Large Format Segmentation Feeding
Communication:	Ethernet, USB And WIFI	Software:	RDworks V8
Highlight:	Ruida RDC8445GT5 CO2 laser controller , 4 axis CO2 laser controller , WIFI enabled CO2 laser controller

Ruida RDC8445GT5 CO2 Laser Controller with 4 Axis and WIFI

Product Overview

The RDC8445GT5 is the latest generation laser engraving/cutting control system from Ruida Technology, featuring IoT-enabled capabilities with web-based application software and wireless transmission control.

Key Features

4-axis control with support for up to 4 channels servo/stepper motor control
Includes serial port for communication with EPLC-400, wireless handle, and RS232 devices
4 channels OC gate output capable of driving 5V/24V relays
Mobile APP compatibility for machine control and image editing
Double heads synchronous operation and large format segmentation processing
Stores up to 1,200 processing files with 16-character naming support
Includes RDworks V8 software (free) with PLT, DXF, AI, DST file support

Technical Specifications

Parameter	Specification
Laser Source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser Channel	2
Communication	Ethernet, USB and WIFI

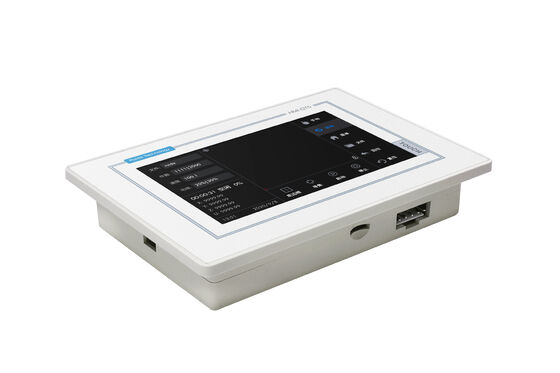

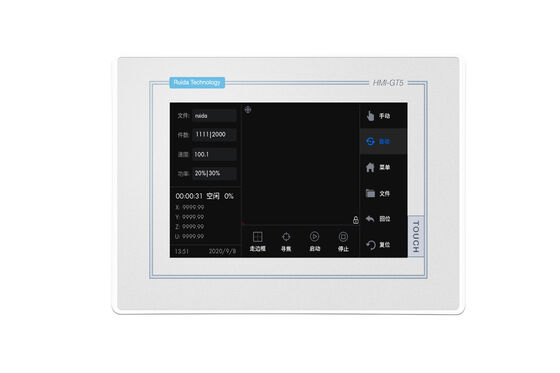

Panel	5˝ color screen + keys
Feeding Options	U axis feeding, Y/U axes synchronous feeding, sheet feeding, large format segmentation
Rotary Options	Y or U axis rotation mode

Applications

Ideal for non-metal cutting applications including leather, fabric, signage, craft gifts, toys, and 3C application fields.
