RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control

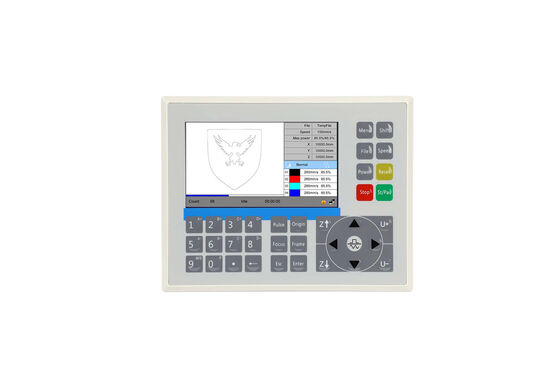

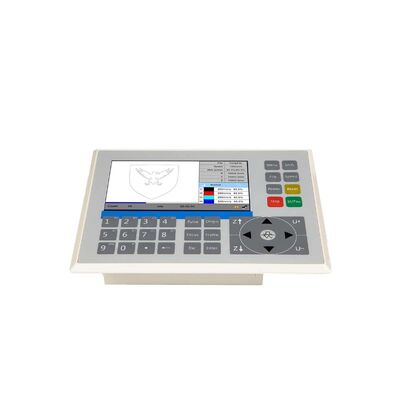

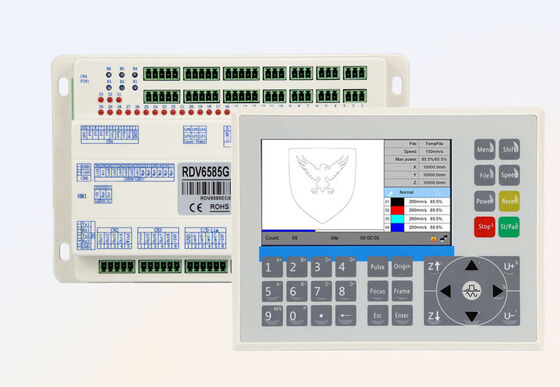

Large Image : RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control

Product Details:

Place of Origin:	Mainland China
Brand Name:	RUIDA
Certification:	CE FCC ROHS
Model Number:	RDC6585G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8days
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability:	100 sets/day

Contact Now Chat Now

RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control

Description

Laser Source:	CO2 Glass Tube, CO2 RF Tube And UV Lasers	Axis:	8
Laser Channel:	6	Communication:	Ethernet, USB And WIFI (optional)
Panel:	5” Color Screen + Keys	Feeding:	U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Encryption:	Support	Firmware:	Support The Remote Upgrade Of Mainboard And Panel Program
Multi-head Synchronous:	Support Double, Three, Four, Five And Six Heads Synchronous	Rotary:	Y Axis Rotation
Engraving:	Plane Engraving, Slope Engraving And Gray Engraving	Processing:	Support Resume Processing After Power Failure
Software:	RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage	Language:	Including Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian
Highlight:	8-axis CO2 laser controller , multi-head laser motion control , CO2 laser controller with warranty

RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control

The RDC6585G from Ruida Technology is an advanced multi-head synchronous laser control system featuring an intuitive 5-inch color touchscreen interface. This high-performance controller offers comprehensive motion control with multiple connectivity options, excelling in both laser processing and adhesive spraying applications for precision manufacturing.

Product Specifications

Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	8
Laser channel	6
Communication	Ethernet, USB and WIFI (optional)
Panel	5" color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption	Support
Firmware	Support the remote upgrade of mainboard and panel program
Multi-head synchronous	Support double, three, four, five and six heads synchronous
Rotary	Y axis rotation
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian

Key Features

5" color touchscreen with physical keys for intuitive operation
8-axis motion control with 6 independent laser channels
Synchronization support for 2-6 laser heads
Ideal for clothing, leather, digital cropping, advertising, printing and 3C industries
Compatible with RDWorksV8 software for efficient image processing

Included Software

RDWorks V8 (Free) supports PLT, DXF, AI, DST and other file formats with comprehensive import, display and editing functions. The software also includes image processing capabilities.
