Ruida RDC6445GT5 CO2 Laser Controller with 5 Touch Screen

Large Image : Ruida RDC6445GT5 CO2 Laser Controller with 5 Touch Screen

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDC6445GT5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

Ruida RDC6445GT5 CO2 Laser Controller with 5 Touch Screen

Description

Axis:	4	Adapted Laser:	CO2 Glass Tube, CO2 RF Tube And UV Lasers
Laser Interface:	2	Feeding:	U Axis Feeding, Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Double Heads Asynchronous:	Support	Panel:	5'' Touch Screen. Support Screen Lock And The Upgrade Of Boot Screen
Communication:	Ethernet, USB And WIFI	Rotary Processing:	Y Or U Axis Rotation Mode Is Optional
Engaving:	Plane Engraving, Slope Engraving And Gray Engraving	Firmware Upgrade:	Support The Remote Upgrade Of Mainboard And Panel Program
Operating System:	WinXP, Win7, Win8, Win10, 32-bit Or 64-bit	Software:	RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDPlug
Highlight:	Ruida RDC6445GT5 laser controller , CO2 laser controller with touch screen , 5-inch touch screen laser controller

Ruida RDC6445GT5 CO2 Laser Controller with 5" Touch Screen

The RDC6445GT5 is a professional CO2 laser control panel developed by Ruida Technology for cutting and engraving machines, featuring enhanced hardware stability and superior high voltage resistance.

Product Specifications

Attribute	Value
Axis	4
Adapted laser	CO2 glass tube, CO2 RF tube and UV lasers
Laser Interface	2
Feeding	U axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Double heads asynchronous	Support
Panel	5" touch screen. Support screen lock and the upgrade of boot screen
Communication	Ethernet, USB and WIFI
Rotary processing	Y or U axis rotation mode is optional
Engraving	Plane engraving, slope engraving and gray engraving
Firmware upgrade	Support the remote upgrade of mainboard and panel program
Operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug

Key Features

Supports standalone operation and USB drive processing
Enables offline modification of file attributes, manufacturer and user parameters
Provides working hours preview with millisecond precision
Displays real-time processing path, coordinate points and progress bar
Features automatic focusing via panel with manual and automatic options
Supports manual input or automatic acquisition of docking point coordinates
Compatible with various external accessories (wireless handheld box, RD-APP and RD-WIFI)

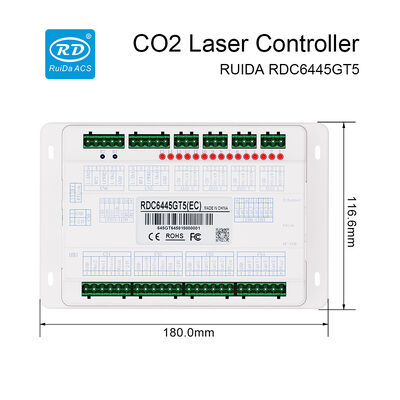

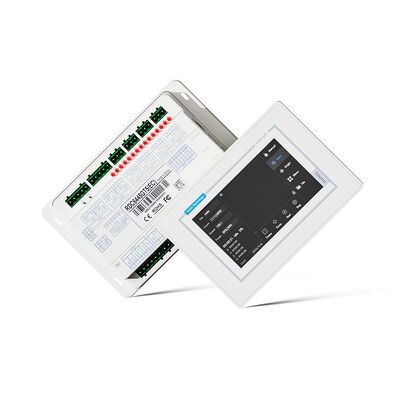

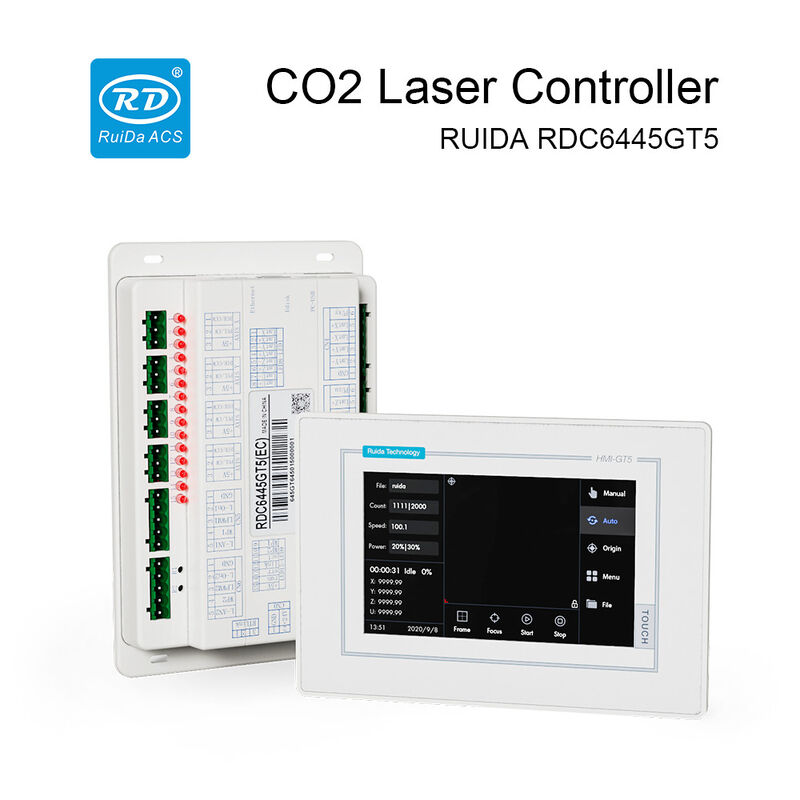

RDC6445GT5 Laser Control Panel

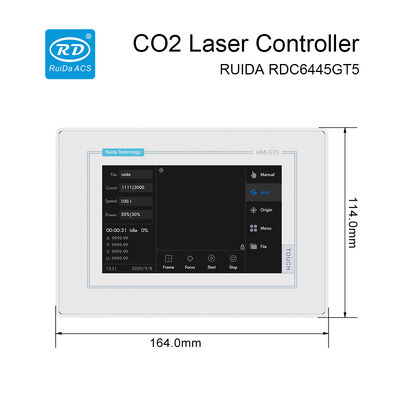

RDC6445GT5 Control Panel Interface

Software Compatibility

RDWorksV8 (free), plug-in software RDPlug, virtual printing and RDPlug.

RDWorksV8 Software Interface

Application Fields

Primarily designed for non-metal laser cutting and engraving applications including fabric, leather, wood, paper, acrylic, PMMA, rubber & plastics, and smartphone accessories.

Laser Cutting and Engraving Applications
