Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen

Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen
Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen

Large Image :  Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDC6442G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

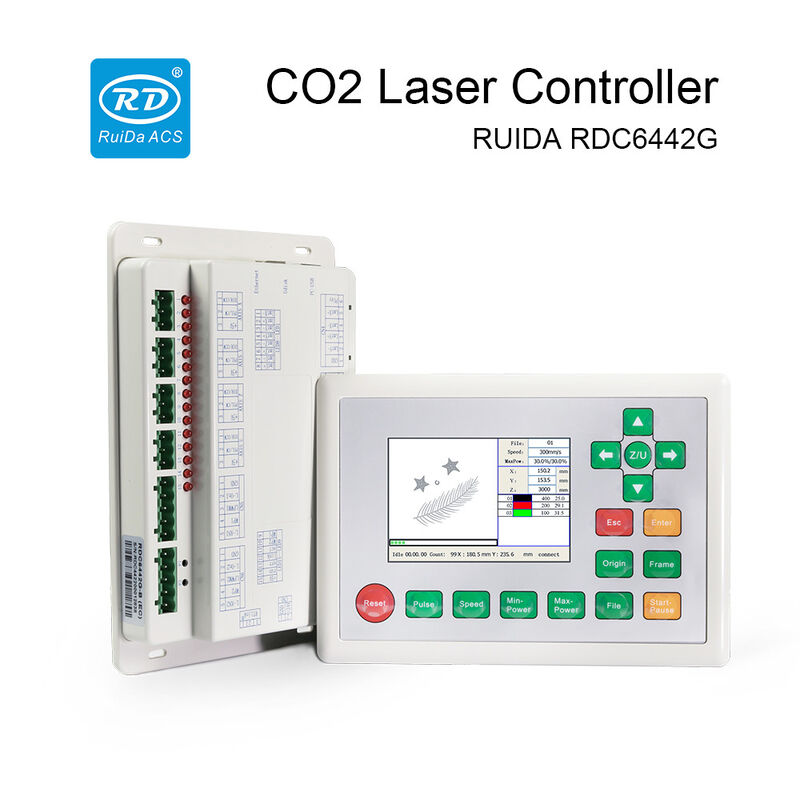

Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen

Description
Laser Source: CO2 Glass Tube, CO2 RF Tube And UV Lasers Axis: 4
Double Heads Asynchronous: Not Support Laser Channel: 2
Communication Interface: Ethernet, USB And WIFI (optional) Panel: 3.5” Color Screen + Keys
Feeding: U Axis Feeding, Sheet Feeding Installment Encryption: Support
Onboard Clock: Not Support Firmware Upgrade: Support The Remote Upgrade Of Mainboard
Rotary Processing: Y Axis Rotation Engraving Function: Plane Engraving, Slope Engraving And Gray Engraving
Resume Processing After Power Failure: Support Software: RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDPlug
Operating System: WinXP, Win7, Win8, Win10, 32-bit Or 64-bit Language: Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, And Italian.
Highlight:

Ruida RDC6442G CO2 laser controller

,

CO2 laser controller with 3.5 inch screen

,

Ruida laser controller with warranty

Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen
The RDC6442G is a professional CO2 laser control panel designed for non-metal cutting applications, featuring a 3.5-inch color display for intuitive operation and enhanced functionality.
Product Specifications
Attribute Value
Laser Source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Double heads asynchronous Not support
Laser channel 2
Communication interface Ethernet, USB and WIFI (optional)
Panel 3.5" color screen + keys
Feeding U axis feeding, sheet feeding
Installment encryption Support
Onboard clock Not support
Firmware upgrade Support the remote upgrade of mainboard
Rotary processing Y axis rotation
Engraving function Plane engraving, slope engraving and gray engraving
Resume processing after power failure Support
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
Operating system WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language 13 languages including English, Chinese, French, Russian, and Spanish
Product Overview
This advanced motion controller includes onboard file storage and a U flash disk driver, with multi-channel general/special IO control for versatile device compatibility. Connectivity options include Ethernet and USB interfaces for PC communication.
Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen 0
Key Features
  • Supports standalone operation and U disk processing
  • Enables offline modification of file attributes, manufacturer and user parameters
  • Provides working hours preview with millisecond accuracy
  • Displays real-time processing path, coordinate points and progress bar
  • Features automatic focusing via panel with manual and automatic options
  • Supports manual input or automatic acquisition of docking point coordinates
  • Compatible with optional accessories (wireless handheld box, RD-APP and RD-WIFI)
  • Includes extended interface for external device customization
Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen 1
Software Compatibility
RDworks V8 (Free) supports PLT, DXF, AI, DST and other file formats with import, display and edit functions. Includes image file import and processing capabilities.
Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen 2
Applications
Ideal for non-metal laser cutting and engraving applications including fabric, leather, wood, paper, acrylic, PMMA, rubber, plastics, and smartphone accessories.
Ruida RDC6442G CO2 Laser Controller with 3.5 Inch Screen 3
