RDIMS 24V Laser Controller Board Intelligent Control Board For Remote Maintenance

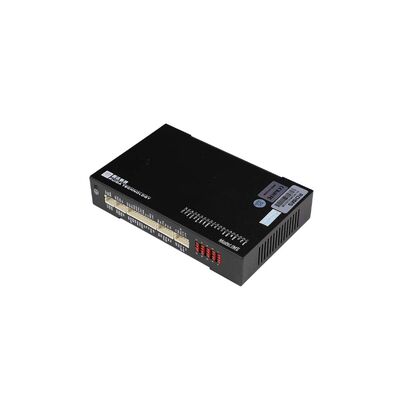

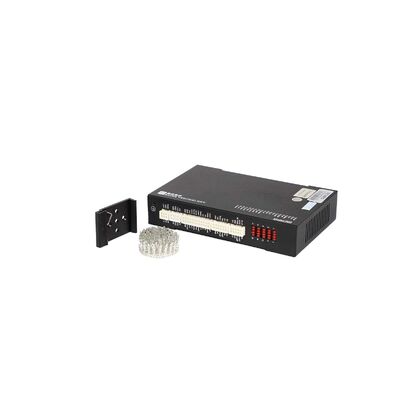

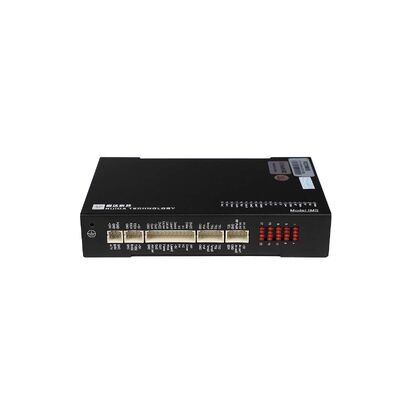

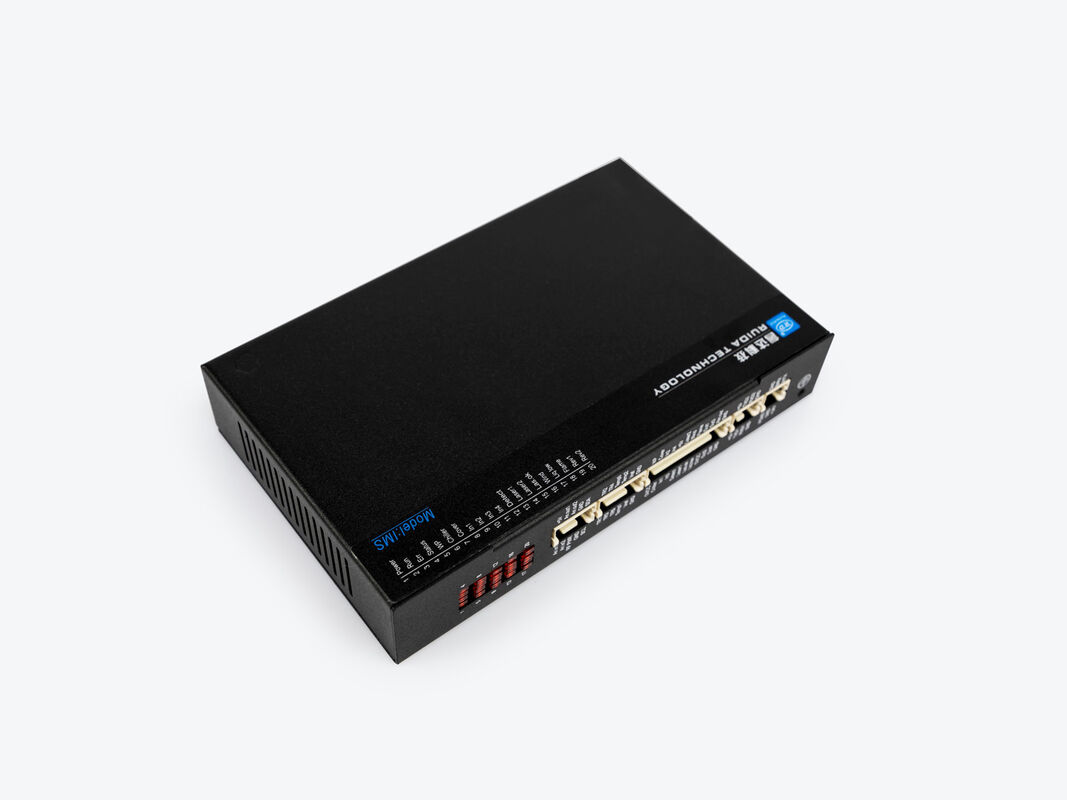

Large Image : RDIMS 24V Laser Controller Board Intelligent Control Board For Remote Maintenance

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDIMS

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Contact Now Chat Now

RDIMS 24V Laser Controller Board Intelligent Control Board For Remote Maintenance

Description

DC Power Supply:	24V	Analog Quantity Input:	11 Channel
Analog Quantity:	2 Channel	Temperature Collection Range:	20℃-74℃
Alarm Input:	10 Channel	Universal Input:	4 Channel
Universal Output:	4 Channel	Alarm Output:	1 Channel
RS232 Telecommunication:	Two Channel	RS485 Telecommunication:	One Channel
Highlight:	Laser Controller Board Intelligent , 24V Laser Controller Board

RDIMS 24V Laser Controller Board Intelligent Control Board For Remote Maintenance

RDIMS Intelligent Control Board for Remote Maintenance and Configuration of Environmental Data

Description of RDIMS

RDIMS is Ruida information management collection communication equipment, which can easily realize the environmental information collection, alarm output and status return. It is connected with Ruida controller with different models through serial port (232/485) to collect and monitor information of complex environment. It can also help users view local device data and know the running status of the device. RDIMS with Ruida gateway and RDcloud can achieve remote data query and analysis, remote maintenance and configuration.

Technical Parameters

Brand	RUIDA
Model	RDIMS
RS232 telecommunication	Two channel
RS485 telecommunication	One channel
Universal input	4 channel
Alarm input	10 channel
Analog quantity	2 channel
DC power supply	24V
Signal lights	20

Key Functions and Features

Environmental Information Collection: RDIMS can collect data from the environment, such as temperature, humidity, pressure, etc., and provide real-time monitoring.
Alarm Output: The system can trigger alarms based on predefined thresholds, helping to alert users about any abnormal conditions in the environment.
Status Return: RDIMS enables status feedback, providing users with information about the current state of connected devices.
Connectivity with Ruida Controllers: RDIMS connects with various models of Ruida controllers via serial ports (RS232/RS485), allowing seamless integration with a wide range of devices for data collection and monitoring.
Local Data Viewing: Users can view device data locally to understand the device's operational status.
Remote Data Query and Analysis: By integrating with the Ruida Gateway and RDCloud, RDIMS enables remote data access, query, and analysis. This provides users with the ability to check device performance and environmental data from any location.
Remote Maintenance and Configuration: Through RDIMS, users can perform remote maintenance and configuration tasks, reducing the need for on-site intervention and improving overall efficiency.

Why Choose Us?

Innovative and Reliable Technology: Our products, including advanced laser control systems and environmental monitoring tools like RDIMS, are built on cutting-edge technology to provide reliable, real-time data collection, analysis, and remote management.
Comprehensive Product Range: We offer a diverse range of products, from CO₂ cutting systems and fiber laser cutting systems to vision marking systems and 3D printing solutions.
Seamless Integration: Our systems are designed for easy integration with various controllers, ensuring compatibility across different models.
Remote Monitoring and Maintenance: With our RDIMS solution, you can access real-time data and perform remote maintenance without the need for on-site interventions.
Expert Customer Support: Our dedicated team of experts is always ready to assist you, from initial consultation and product selection to after-sales support.
Proven Track Record: As a trusted partner to many laser machine manufacturers and industrial users, we have built a strong reputation for delivering high-quality products and exceptional customer service.
Global Reach: With a strong presence in international markets, we help clients around the world streamline their processes and achieve optimal performance with our advanced laser control systems and integrated solutions.
