Ruida Intelligent Laser Controller Board Module RDEncLas400G

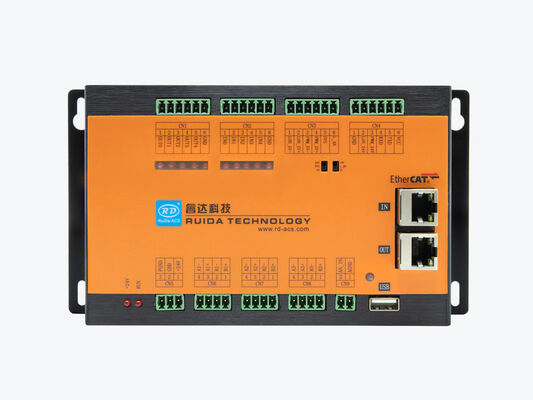

Large Image : Ruida Intelligent Laser Controller Board Module RDEncLas400G

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDEncLas400G

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida Intelligent Laser Controller Board Module RDEncLas400G

Description

Brand:	RUIDA	Model:	RDEncLas400G
Laser:	CO2, Fiber And UV Lasers	Control Mainboard:	Ordinary Motion Controller Or CNC System
Feedback Interface:	Axis Pulse Or The Encoder Interface Supports Up To 3 Channels	Interface:	PSS, PSV And PSP Modes
Laser Power:	Power Follow	Communication Interface:	RS232 Serial Port
Analog Quantity Output:	2 Channels	PWM Parameter:	Maximum Frequency 500KHz, Precision Of 0.1%, Compatible With 5V And 24V
Highlight:	Intelligent Laser Controller Board , Laser Controller Board Module , RDEncLas400G

Ruida Intelligent Laser Controller Board Module RDEncLas400G

The RDEncLas400G intelligent laser control module is a specialized controller developed by Ruida Technology for various laser applications. This module works with different types of motion control boards or controllers to enable complete motion control + laser control functionality. It transforms traditional motion controllers or CNC systems into laser motion control systems.

Technical Parameters

Brand	RUIDA
Model	RDEncLas400G
General IO	5 channels general input, 5 channels general output
High speed IO input	2 channels
Analog quantity input	1 channel, 0-10V
External emergency stop	Support
Remote upgrade	Support
Size	L193mmW108mmH22mm

Key Features

Specialized laser control module
Universal compatibility with motion control systems
Enables laser system integration capabilities
Transforms standard motion controllers into laser-capable systems

Integration Features

Compatible with various motion control boards
Adaptable to different controller types
Seamless integration with existing CNC systems
Modular design for flexible implementation

System Capabilities

Comprehensive laser control functions
Motion and laser synchronization
Support for multiple laser types
Advanced control parameters management

Application Benefits

Upgrades traditional motion controllers
Enables laser processing functionality
Simplifies system conversion
Cost-effective solution for system enhancement
