Ruida Signal Adapter Module RDT422

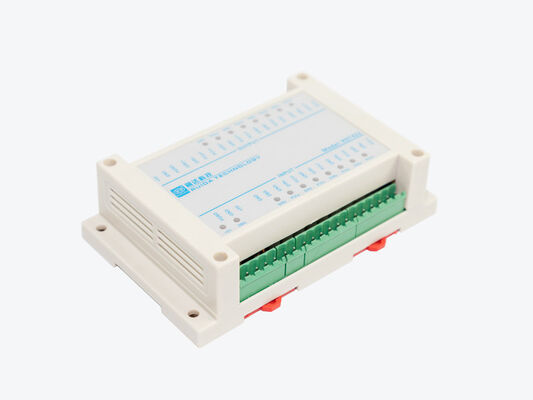

Large Image : Ruida Signal Adapter Module RDT422

Product Details:

Place of Origin:	Mainland China
Brand Name:	Ruida
Certification:	CE FCC ROHS
Model Number:	RDT422

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable - Inquire Within
Packaging Details:	Carton Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida Signal Adapter Module RDT422

Description

Brand:

RUIDA

Model:

RDT422

Control Function:

4 TTL Single End Signals Are Converted To Differential Signals. And The Signal End Pulse And Direction Signal Can Be Converted To Differential Signal

Laser Channels:

4 Axes

Highlight:

RDT422 Signal Adapter Module

Ruida Signal Adapter Module

RDT422 Signal Adapter

Ruida Signal Adapter Module RDT422

The RDT422 Single End to Differential Signal Adapter Module, developed by Shenzhen Ruida Technology Co., LTD, is designed for use with RDC644X, RDC658X and RDC656X series offline controllers. This advanced adapter module serves as a critical performance enhancer for high-speed servo systems, particularly when working with differential RF CO2 lasers.

Key Features

Doubles system speed capabilities when used with Ruida offline series board cards
Converts 4 single-end signals into differential signals
Compatible with differential RF CO2 laser systems
Maintains superior signal integrity at higher speeds

Technical Parameters

Specification	Support
4 axes laser channels	Supported
TTL level input/output	Supported
Electrostatic, surge and lightning protection	Supported
Signal indicator	Supported
Over voltage, over current and reverse connection protection	Supported
Power supply	5V DC

System Enhancement

Acts as a critical performance multiplier
Bridges technology gaps in existing systems
Enables advanced laser system compatibility
Maintains signal integrity at higher speeds

Performance Benefits

Doubles system processing speed capabilities
Enhanced compatibility with differential RF CO2 lasers
Improved signal integrity and stability
Optimized pulse and direction signal management

Technical Integration

Purpose-built for Ruida standalone controller series
Direct compatibility with existing systems
Advanced signal conversion architecture
Streamlined implementation process

Application Advantages

Accelerated processing capabilities
Enhanced system compatibility
Improved operational efficiency

This sophisticated signal adapter module represents a significant advancement in motion control technology, effectively doubling system performance while ensuring seamless integration with existing Ruida controllers and differential RF CO2 laser systems.
