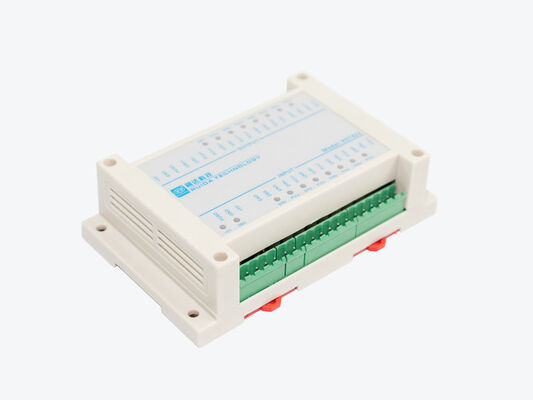

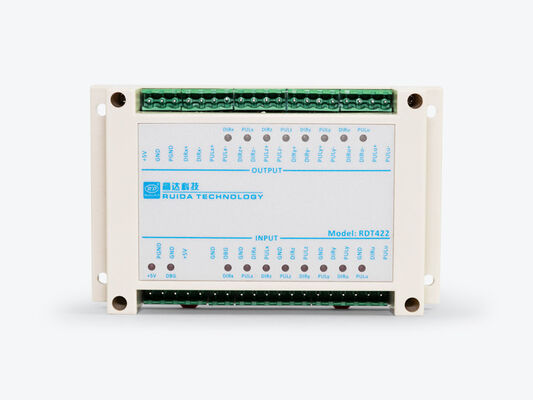

Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers

Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers
Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers

Large Image :  Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers

Product Details:
Place of Origin: Mainland China
Brand Name: Ruida
Certification: CE FCC ROHS
Model Number: RDT422
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers

Description
Brand: RUIDA Model: RDT422
Control Function: 4 TTL Single End Signals Are Converted To Differential Signals. And The Signal End Pulse And Direction Signal Can Be Converted To Differential Signal Laser Channels: 4 Axes
Highlight:

Ruida Signal Adapter Module

,

RDC658X Controllers Signal Adapter Module

,

Signal Adapter Module RDT422

Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers
Developed by Shenzhen Ruida Technology CO., LTD, the RDT422 signal adapter module is a sophisticated interface solution designed exclusively for RDC644X, RDC658X, and RDC656X series controller boards. This innovative adapter transforms single-ended signals into differential pulse and direction outputs, serving as a critical enhancement for offline controllers and high-speed servo systems, with the unique capability of potentially doubling system operational speeds while ensuring seamless compatibility with differential RF CO2 lasers.
Technical Specifications
Feature Specification
4 axes laser channels; 4 single end signal is converted into differential signals; TTL level Support
Input and output of electrostatic protection, surge protection and lightning protection Support
Signal indicator Support
Over voltage, over current and reverse connection protection of the power Support
Power supply 5V dc
Key Features
  • Maintains original technical context and specifications
  • Advanced signal conversion technology
  • Robust protection features
  • Precision signal management
  • High-speed performance capabilities
Performance Benefits
Doubles system processing speed capabilities
Enhanced compatibility with differential RF CO2 lasers
Improved signal integrity and stability
Optimized pulse and direction signal management
Technical Integration
  • Purpose-built for Ruida standalone controller series
  • Direct compatibility with existing systems
  • Advanced signal conversion architecture
  • Streamlined implementation process
Applications
1. Servo System Optimization
  • Facilitates high-speed signal transmission
  • Enables performance enhancement in servo motion control
  • Supports significant speed improvements in offline control systems
2. Laser Processing Equipment
  • Compatible with differential RF CO2 lasers
  • Provides reliable signal conversion for laser cutting and engraving machines
  • Supports precision control in industrial laser processing applications
3. Motion Control Interfaces
  • Bridges signal format differences in complex control architectures
  • Enables smooth integration of diverse control systems
  • Supports pulse and direction signal protocols
4. Industrial Automation
  • Enhances signal transmission reliability
  • Supports advanced motion control requirements
  • Provides flexible signal adaptation in manufacturing environments
Ideal for applications demanding high-precision signal conversion, the RDT422 module represents a critical technological solution in advanced motion control and laser processing equipment.
Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers 0 Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers 1 Ruida Signal Adapter Module RDT422 High Speed Conversion for RDC644X RDC658X and RDC656X Controllers 2
