RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller

RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller
RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller

Large Image :  RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller

Product Details:
Place of Origin: Mainland China
Brand Name: RUIDA
Certification: CE FCC ROHS
Model Number: RDWelder-DW
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: Carton Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller

Description
Brand: RUIDA Laser Source: Handheld High Power Continuous Fiber Laser
Galvanometer Protocol: XY2-100 Communication: Double Pendulum Of Galvanometer
Motion Control: RS232 Input And Output: Support Multi-channel, Auxiliary Gas Control
Encryption: Support Firmware: Support To Upgrade System By U Disk
Protection: Extern Input Protection Alarm: Support Laser Alarm,Cooling System Alarm And Other Alarm Inputs
Highlight:

Dual Station Laser Welding Controller

,

RUIDA Laser Welding Controller

,

Handheld Laser Welder Controller

RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller
Product Description

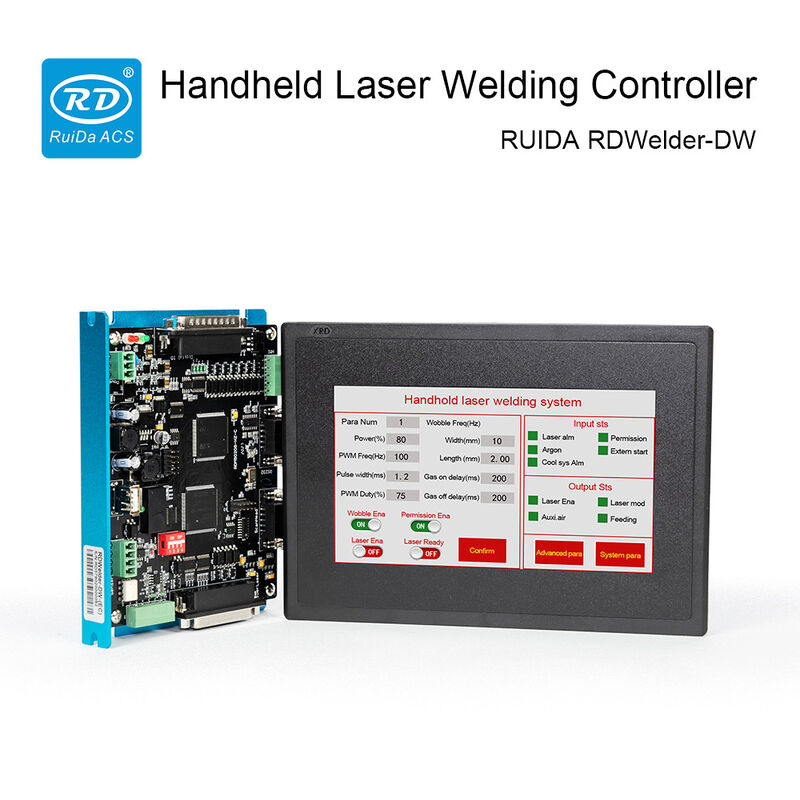

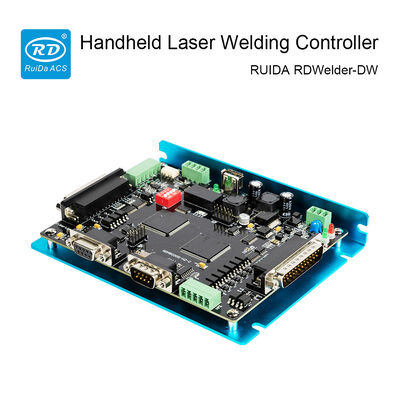

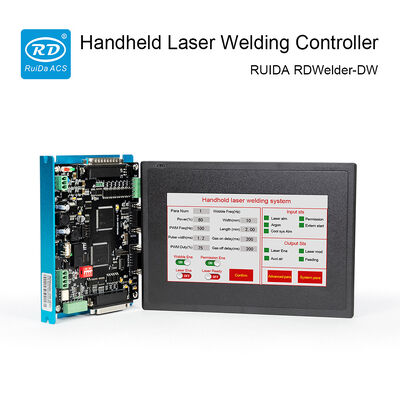

The RUIDA RDWelder-DW Dual-Station Handheld Laser Welding Controller is developed by Ruida Technology specifically for laser welding applications. This advanced system supports dual-station operation and features automatic laser power adjustment, pre-open gas, delayed gas shutoff, and other professional functions. Designed for ease of operation, it provides real-time display of station control mode, alarm information, and movement status.
Key Features
  • Standalone operation with RS232 communication support
  • Intelligent monitoring with real-time display of motion status and alarm information
  • Multiple oscillating modes and automatic wire feeding function
  • Gas activation delay, gas closure delay, and slow power rise/fall functions
  • Specialized for metal welding applications and handheld laser galvanometer welding
RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller 0
Technical Specifications
Parameter RDWelder-DW
Laser source Handheld high power continuous fiber laser
Galvanometer protocol XY2-100
Laser channel RS232
Communication Supported
Motion control Double pendulum of galvanometer
Input and output Multi-channel general I/O for auxiliary gas control
External protection One channel welding protection input
Control function Online power/frequency adjustment, external start/stop
External alarm input Supports laser alarm, cooling system alarm
AD/DA Analog quantity input/output function
Encryption Supported
Onboard clock Supported
Firmware U disk system upgrade supported
Welding process Automatic wire feeding, gas timing control, power ramping
Welding technology Spiral welding for single/double galvanometer pendulum
Language Simplified Chinese, English

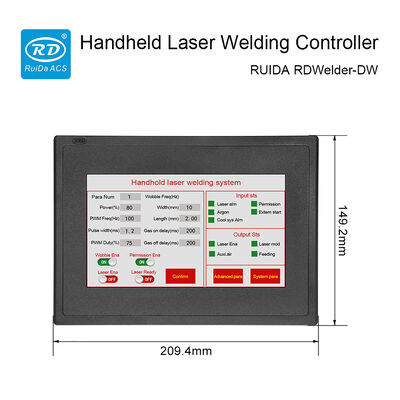

Size Panel: 210×150×24mm

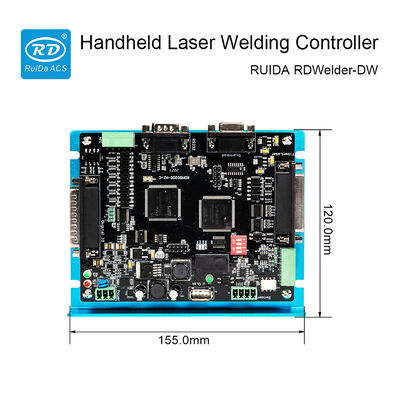

Mainboard: 155×120×55mm
RUIDA Dual Station Laser Welding Controller Handheld Laser Welder Controller 1
