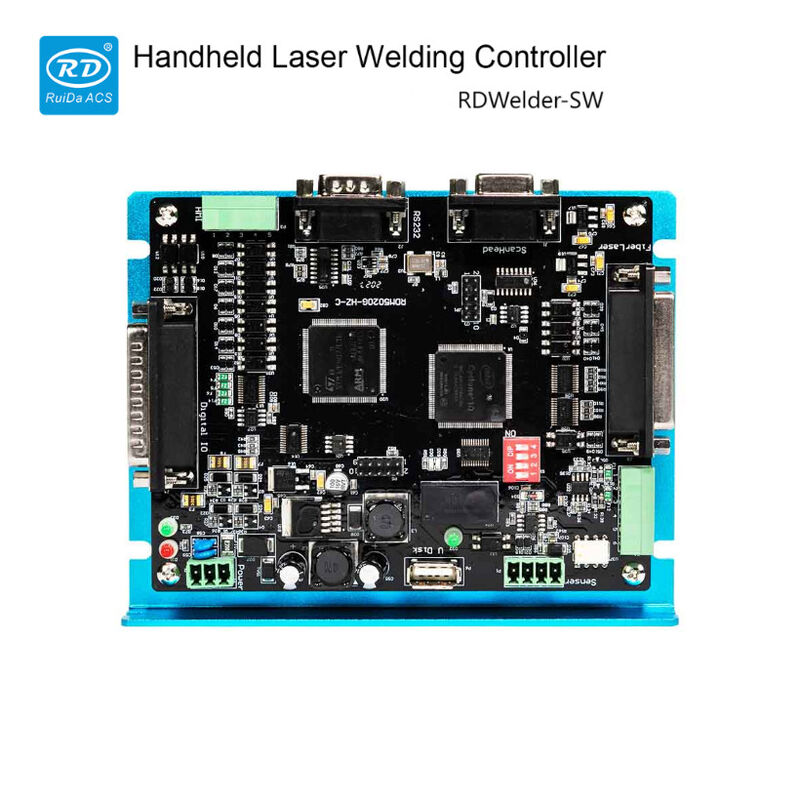

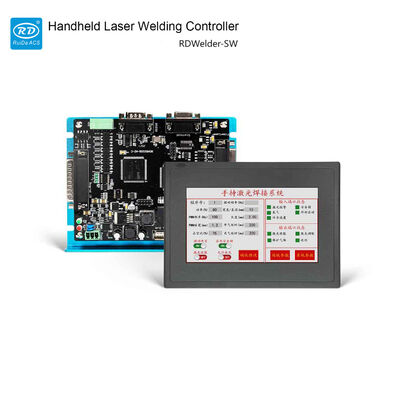

Handheld Fiber Laser Welding Controller With XY2-100 Protocol Ruida RDWelder-SW

Large Image : Handheld Fiber Laser Welding Controller With XY2-100 Protocol Ruida RDWelder-SW

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDWelder-SW

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Handheld Fiber Laser Welding Controller With XY2-100 Protocol Ruida RDWelder-SW

Description

Laser:	Handheld High Power Continuous Fiber Laser	Galvanometer Protocol:	XY2-100
Communication Interface:	RS232	Motion Control:	Single Pendulum Of Galvanometer
Input And Output:	Support Multi-channel General Input And Output, Used For Auxiliary Gas Control	AD/DA:	Support Analog Quantity Input And Output Function
Language:	Simplified Chinese, English	Firmware Upgrade:	Support The Upgrade Of System By U Disk
External Protection:	One Channel Welding Protection Input	Size:	Panel: L210mmW150mmH24mm Mainboard: L155mmW120mmH55mm
Highlight:	Handheld Laser Welding Controller , Fiber Laser Welding Controller

Handheld Fiber Laser Welding Controller With XY2-100 Protocol Ruida RDWelder-SW

The Ruida Controller RDWelder-SW is a specialized handheld laser welding system designed for precision metal welding applications with advanced features for optimal performance.

Product Attributes

Attribute	Value
Laser	Handheld high power continuous fiber laser
Galvanometer protocol	XY2-100
Communication interface	RS232
Motion control	Single pendulum of galvanometer
Input and output	Support multi-channel general input and output, used for auxiliary gas control
AD/DA	Support analog quantity input and output function
Language	Simplified Chinese, English
Firmware upgrade	Support the upgrade of system by U disk
External protection	One channel welding protection input

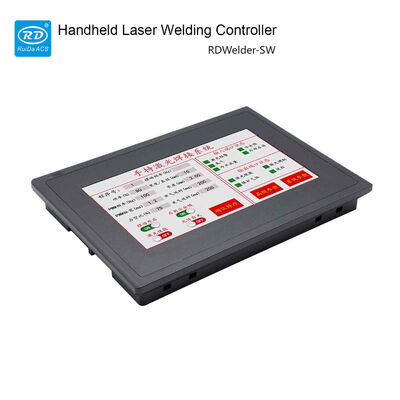

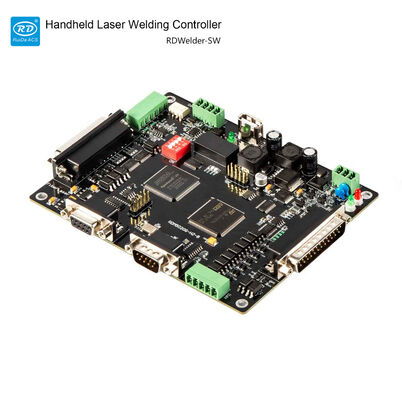

Size	Panel: L210mmW150mmH24mm Mainboard: L155mmW120mmH55mm

Key Features

Dual-Station Operation: Enables efficient multitasking and enhanced workflow
Automatic Laser Power Adjustment: Ensures precision throughout the welding process
Advanced Gas Management: Pre-opening gas and delayed shutdown for stable welding environment
Real-Time Monitoring: Displays station control mode, alarm notifications, and movement status

Technical Specifications

Parameter	RDWelder-SW
Laser source	Continuous fiber laser, pulse fiber laser
Galvanometer protocol	XY2-100
Communication	RS232
Motion control	Pendulum of galvanometer
Input and output	Multi-channel general input/output for auxiliary gas control
External protection	One channel welding protection input
Control function	Online power/frequency adjustment, external start/stop
External alarm input	Laser alarm, cooling system alarm protection
AD/DA	Analog quantity input/output function
Installment encryption	Supported
Onboard clock	Supported
Firmware upgrade	System upgrade via USB disk
Welding process	Automatic wire feeding, gas activation/closure delay, slow power rise/fall
Welding technology	Single pendulum of galvanometer
Language	Simplified Chinese, English
Size	Panel: 210×150×24mm, Mainboard: 155×120×55mm

System Advantages

Multi-Functionality: Supports welding, cutting and cleaning functions
Real-Time Temperature Monitoring: Reduces need for frequent lens replacements
Convenient Lens Replacement: Drawer mechanism for quick access
Bluetooth App Monitoring: Remote monitoring and control capability

Application Fields

This versatile laser welding system is ideal for precision welding of various metals including aluminum, iron, stainless steel, copper, and carbon steel. It excels in mixed welding applications, particularly for aluminum-copper and aluminum-stainless steel combinations.
