RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen

RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen
RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen

Large Image :  RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen

Product Details:
Place of Origin: Mainland China
Brand Name: Ruida
Certification: SIT200512230104S
Model Number: RDD6584G
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable - Inquire Within
Packaging Details: 300*340*110
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100 sets/day
Contact Now Chat Now

RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen

Description
Brand: RUIDA Model: RDD6584G
Axis: 8 Multi-head Synchronous: Support Double, Three, Four, Five And Six Heads Synchronous
Input And Output: 32/28 Communication: Ethernet, USB And WIFI (optional)
Panel: 7'' Touch Screen Tool: Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning
Cutting: Ordinary Cutting Feeding: Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously
Highlight:

Vibration Knife Milling Cutter Controller

,

Oscillating Knife Cutter Control System

,

RDD6584G Controller

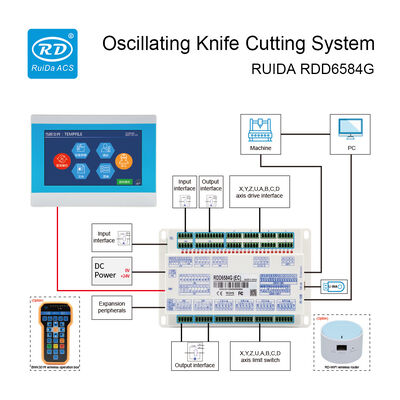

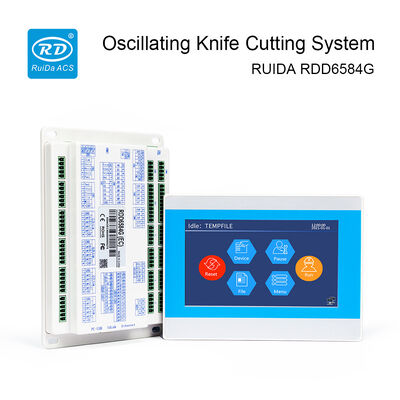

RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7" Touch Screen
The RUIDA RDD6584G is a professional cutting tool controller with cutting edge following control function, integrating multiple processing methods including vibration knives, circular knives, milling cutters, and rollers.
Key Features
  • High response tool direction follow control with multiple tool processing methods
  • Integration of vibration knife, round knife, milling cutter, press wheel, punching, and brush processing
  • Supports single XY axis processing and multiple tool heads synchronous processing
  • Mark point positioning cutting and large-format panoramic visual cutting
  • Ideal for garment, leather, fabric, shoe material, and carton processing
RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen 0
Technical Specifications
Attribute Specification
Brand RUIDA
Model RDD6584G
Axis 8
Multi-head Synchronization Supports 2-6 heads synchronous operation
Input/Output 32/28
Communication Ethernet, USB, WIFI (optional)
Panel 7" touch screen
Supported Tools Vibration knife, round knife, milling cutter, press wheel, punching tools
Software Compatibility
VCutWorks software (included) supports PLT, DXF, AI, DST file formats with import, display and edit functions, plus image file processing capabilities.
RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen 1
Additional Technical Parameters
Feature Specification
Encryption Supported
Onboard Clock Supported
Firmware Updates Remote upgrade support for mainboard and panel
Supported Languages 15 languages including English, Chinese, Spanish, German, etc.

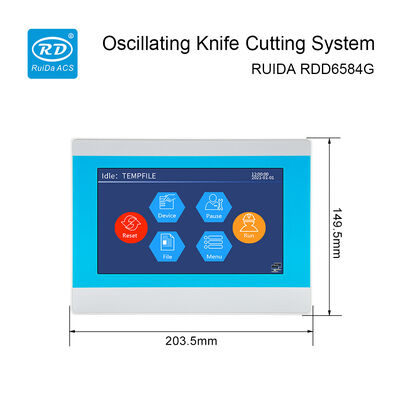

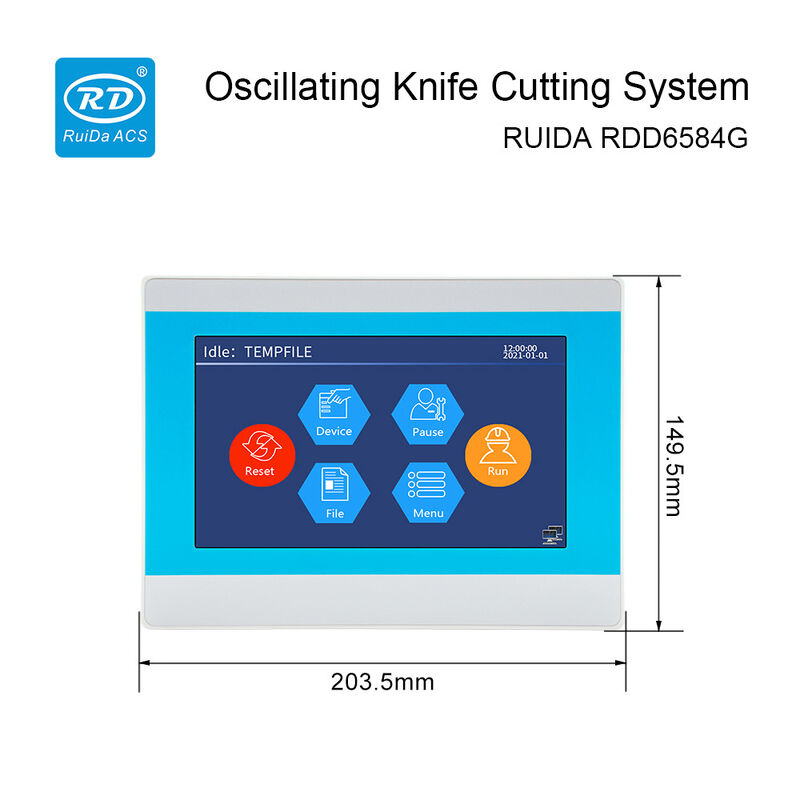

Dimensions Panel: 199×145×39.1mm

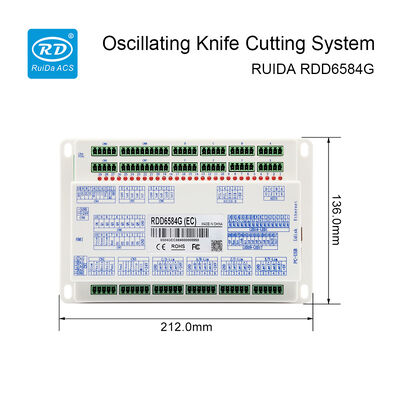

Mainboard: 212×136×33mm
Accessories Wireless handle, RD-APP and RD-WIFI
RUIDA RDD6584G Oscillating Knife Controller with 8 Axis and 7 Touch Screen 2

Tag:

Oscillating Knife Cutter Control System,

Ruida Knife Cutting Controller,

Cutting Tool Controller
