Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks

Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks
Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks

Large Image :  Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: CE, FCC, RoHS
Model Number: RDD6584V-NET
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable, contact us
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks

Description
Model: Mark Point Vision Positioning Cutting Model Axes: Eight
Input And Output: 32/28 Software: VCutWorks
Operating System: Win7, Win8, Win10, 32-bit Or 64-bit Language: 15 Languages Including Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian And Polish
Feeding: Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously Camera: Network Interface Camera, 1.3 And 5 Megapixels Are Available
Light Source System: Red And White Light Source Are Available Cutting Function: Mark Point Vision Positioning Cutting
Highlight:

Vision Knife Cutting Control System

,

Single Track Oscillating Cutting Controller

,

RDD6584V-NET Cutting Control System

Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks

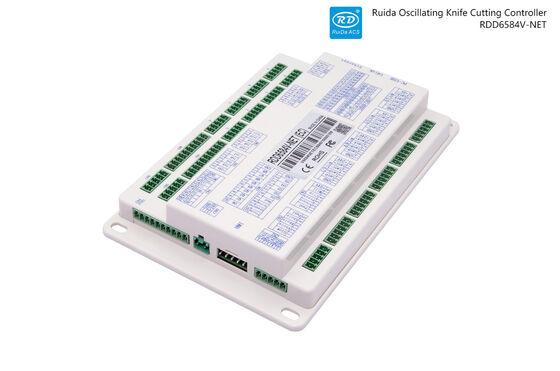

The RDD6584V-NET is a single track small vision knife cutting control system with oscillating cutting controller functionality. This advanced controller features tool direction following control and was independently developed by Ruida Technology.
Product Overview
This innovative controller integrates processing for vibrating knives, circular knives, milling cutters, pressure wheels and other tools. It combines multiple functions including feeding, circular punching, V-shaped special punching, brush processing, and red light positioning.
Attribute Specification
Model Mark point vision positioning cutting model
Axes Eight
Input and output 32/28
Software VCutWorks
Operating system Win7, Win8, Win10, 32-bit or 64-bit
Language support 15 languages including English, Chinese, French, German, Spanish, and more
Feeding Supports X/Y/U axis feeding independently or Y and U axes feeding synchronously

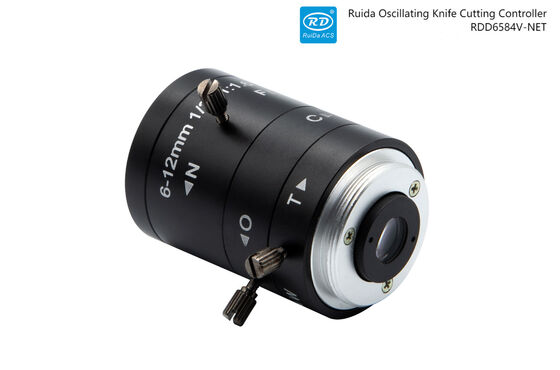

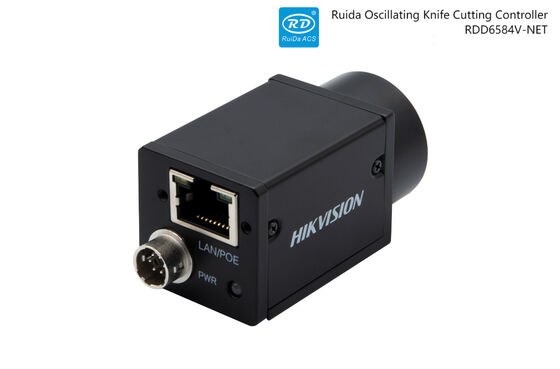

Camera Network interface camera, 1.3 and 5 megapixels available

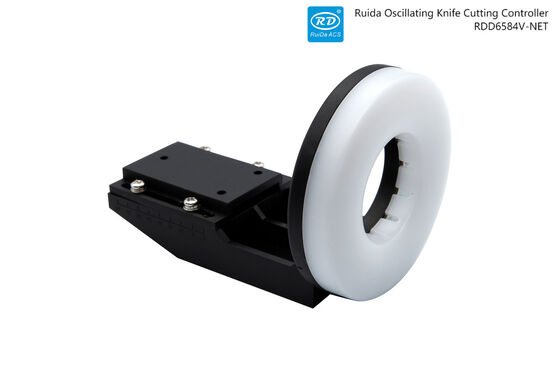

Light source system Red and white light source available
Cutting function Mark point vision positioning cutting
Key Features
  • Cutting Edge Following Control: Adapts to various cutting tools for optimal performance
  • Tool Compatibility: Supports vibrating cutters, circular cutters, milling cutters, and rollers
  • Integrated Functions: Circular punching, V-shaped special punching, brush processing, and red light positioning

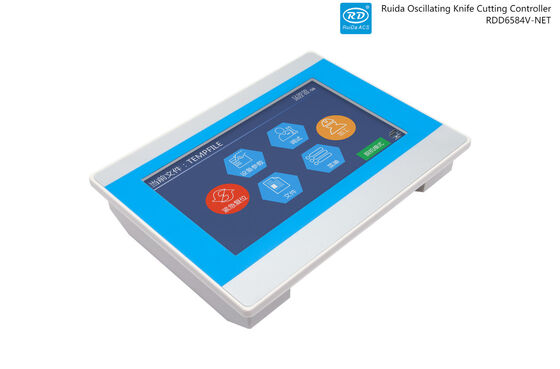

  • 7" touch screen panel with parameter modification and graphics display

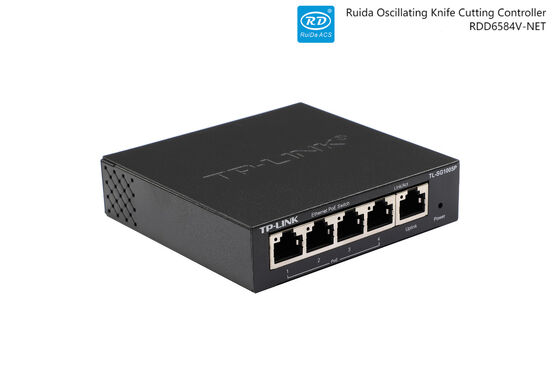

  • Supports Ethernet, USB and optional WIFI communication
  • Remote upgrade capability for panel and mainboard programs
Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks 0
Applications
  • Clothing: Precision fabric cutting for garments
  • Sofa Manufacturing: Upholstery material cutting
  • Digital Printing: Printed material cutting for banners and signage
  • Advertising: Display material cutting
  • Curtains: Fabric cutting for window treatments
  • Bags: Material cutting for bag production
  • Shoes: Precision cutting for footwear components
Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks 1
Software
VCutWorks (Free included software)
Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks 2
Product Certification
Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks 3
Shipping and Payment
Ruida RDD6584V-NET Vision Knife Cutting Controller with VCutWorks 4
