Ruida RDD6584U Oscillating Knife Cutting Controller With Win 7 Win 8 Win 10 32 Bit / 64 Bit

Large Image : Ruida RDD6584U Oscillating Knife Cutting Controller With Win 7 Win 8 Win 10 32 Bit / 64 Bit

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDD6584U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDD6584U Oscillating Knife Cutting Controller With Win 7 Win 8 Win 10 32 Bit / 64 Bit

Description

Model:	Ordinary Double Track Mosel	Axis:	16
Accessories:	Wireless Handheld Box, RD-APP And RD-WIFI	Operating System:	Win7, Win8, Win10, 32-bit Or 64-bit
Tool:	Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning	Feeding:	Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously
Camera:	None	Light Source System:	None
Cutting Function:	Double Coordinate Systems Asynchronous Cutting	Language:	15 Languages Including Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian And Polish
Highlight:	Ruida RDD6584U , Win 10 Oscillating Knife Cutting Controller , Oscillating Knife Cutting Controller 32 Bit

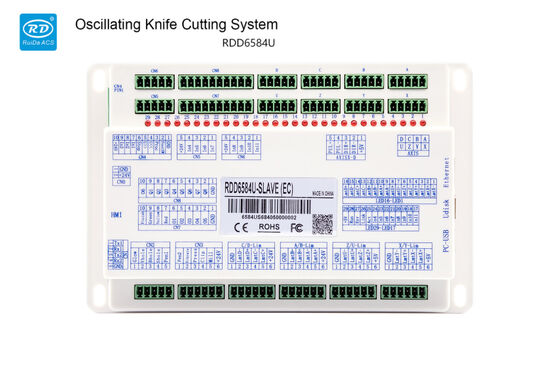

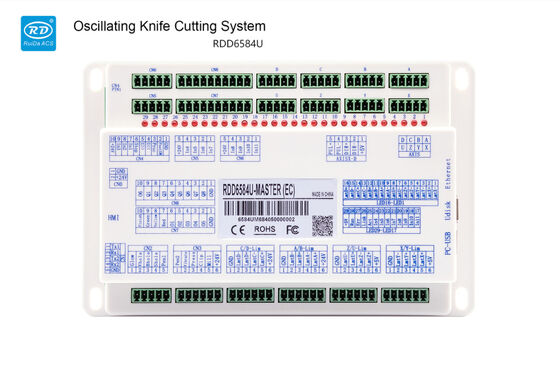

Ruida RDD6584U Oscillating Knife Cutting Controller

Compatible with Windows 7, 8, and 10 (32-bit/64-bit)

Product Overview

The Ruida RDD6584U is a high-performance double track oscillating knife cutting controller designed for precision cutting applications across various industries.

Technical Specifications

Model	Ordinary double track
Axis	16
Accessories	Wireless handheld box, RD-APP and RD-WIFI
Operating System	Win7, Win8, Win10 (32-bit or 64-bit)
Supported Tools	Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding System	Supports X/Y/U axis feeding independently or Y and U axes feeding synchronously
Language Support	15 languages including English, Chinese, Spanish, French, German, and more

Key Features

7" industrial touch screen for intuitive operation
Multiple processing methods: vibration knife, round knife, milling cutter, press wheel
Precision punching capabilities (round and V-shaped)
Brush processing for enhanced material finish
Red light positioning for accurate guidance
Supports single XY axis processing and dual tool heads synchronous processing
Mark point positioning cutting and large-format panoramic visual cutting
Ethernet, USB and optional WIFI connectivity

Technical Parameters

Communication Interface	Ethernet, USB and WIFI (optional)

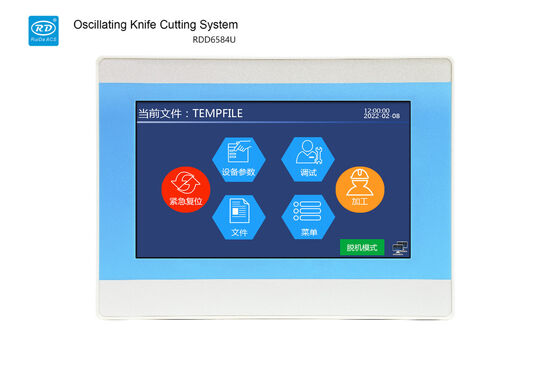

Panel	7'' touch screen with parameter modification, static preview and dynamic display
Firmware Upgrade	Remote upgrade of panel and mainboard program
Software	VCutWorks
Dimensions	Panel: 203.5×149.5×39mm Mainboard: 212×136×33mm
