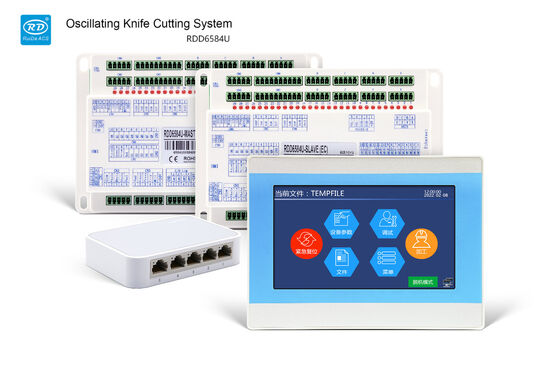

Ruida RDD6584U Dual Track Oscillating Knife Controller 16 Axis

Large Image : Ruida RDD6584U Dual Track Oscillating Knife Controller 16 Axis

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDD6584U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDD6584U Dual Track Oscillating Knife Controller 16 Axis

Description

Model:	Ordinary Double Track	Axis:	16
Firmware Upgrade:	Remote Upgrade Of Panel And Mainboard Program	Software:	VCutWorks
Tool:	Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning	Feeding:	Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously
Camera:	None	Light Source System:	None
Cutting Function:	Double Coordinate Systems Asynchronous Cutting	Onboard Clock:	Support
Highlight:	Ruida Controller RDD6584U , Dual Track Oscillating Cutter Control System , Cnc Oscillating Knife Cutter Control System

Ruida RDD6584U Dual Track Oscillating Knife Controller 16 Axis

Ruida Controller Dual Track Oscillating Knife Cutting Control System RDD6584U

Product Specifications

Attribute	Value
Model	Ordinary double track
Axis	16
Firmware upgrade	Remote upgrade of panel and mainboard program
Software	VCutWorks
Tool	Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding	Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera	None
Light source system	None
Cutting function	Double coordinate systems asynchronous cutting
Onboard clock	Support

Product Description

The RDD6584U is a sophisticated processing machine that combines multiple cutting and milling techniques, including vibrating cutter, circular cutter, milling cutter, and pressing wheel. Automatic feeding streamlines production by automating material input, while ultra-wide segmentation cutting allows efficient processing of wide materials.

Technical Parameters

Parameter	Details

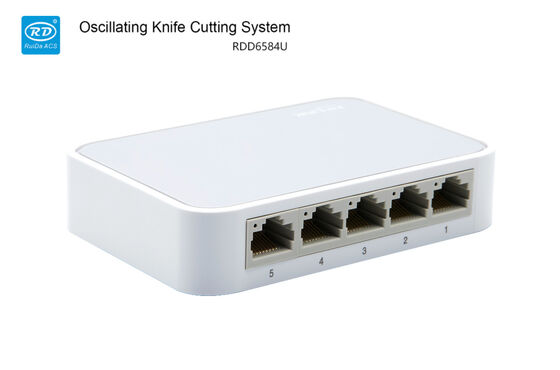

Communication interface	Ethernet, USB and WIFI (optional)

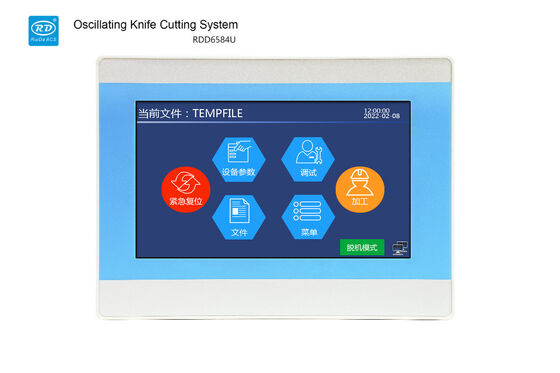

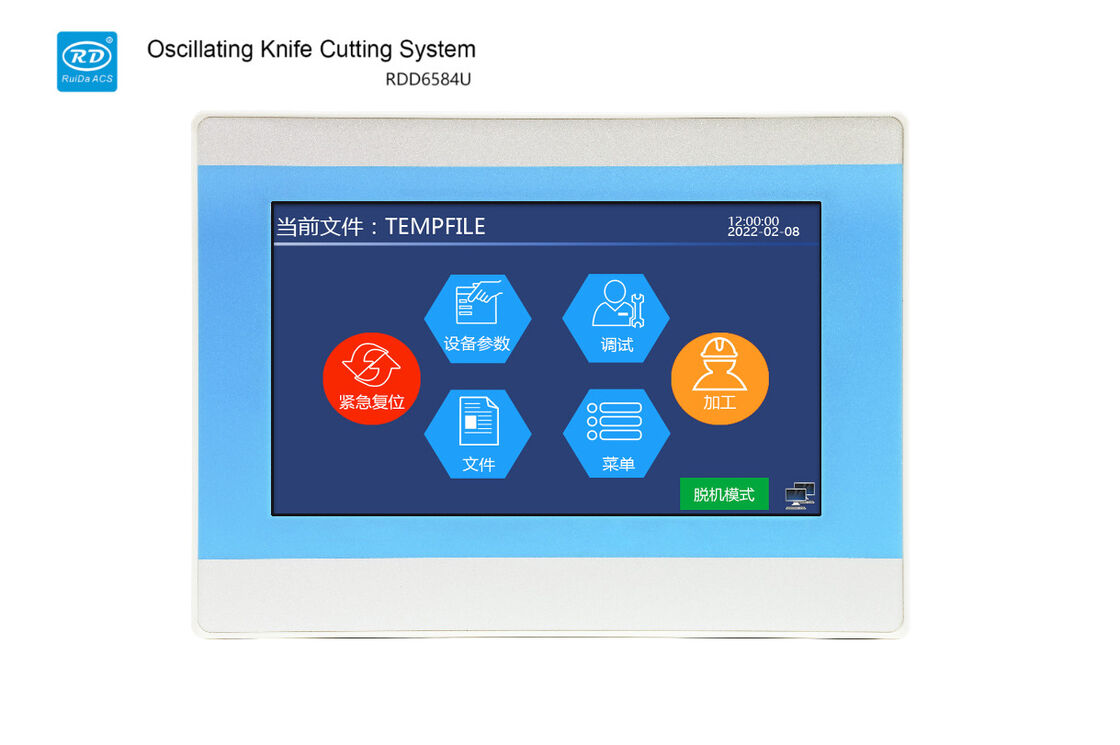

Panel	7'' touch screen, supports parameter modification, static preview and dynamic display of graphics
Installment encryption	Support
Language	15 languages including English, Chinese, French, Russian, and more

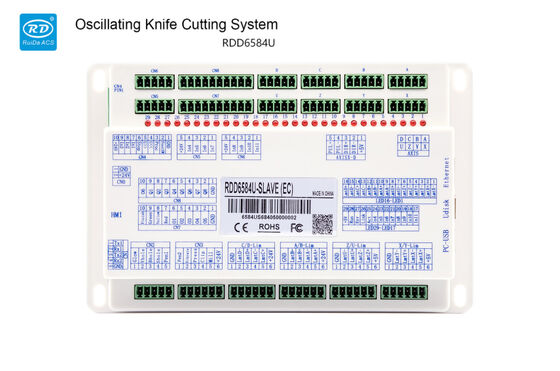

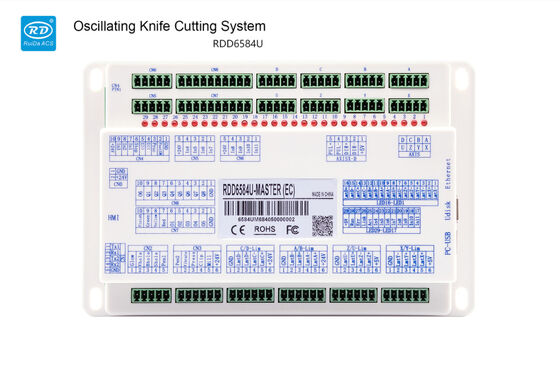

Size	Panel: 203.5×149.5×39mm; Mainboard: 212×136×33mm
Accessories	Wireless handheld box, RD-APP and RD-WIFI

Key Features

Dual Coordinate Systems:

Supports asynchronous processing in double beam (double Y axes) or double cantilever (double X axes) modes
Each coordinate system enables synchronous processing with dual heads, enhancing productivity

Integrated Tool Processing:

Combines multiple tool processing methods:
- Vibration Tool
- Round Tool
- Milling Cutter
- Pressing Wheel
- Slot Cutter

Flexible Processing Modes:

Single XY axis processing
Double XY axes asynchronous processing
Double tool heads synchronous processing

Advanced Cutting Techniques:

Features mark point positioning cutting for precision
Offers large-format panoramic visual cutting and projection cutting

Application Fields

Primarily used in non-metal cutting applications including clothing, furniture, digital printing, advertising, textiles, luggage, and footwear industries.
