16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM

16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM
16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM

Large Image :  16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM

Product Details:
Place of Origin: China
Brand Name: Ruida
Certification: CE, FCC, RoHS
Model Number: RDD6584U-DFM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable, contact us
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now Chat Now

16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM

Description
Model: Double Track Panoramic Large Vision Axis: 16
Operating System: Win7, Win8, Win10, 32-bit Or 64-bit Tool: Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning
Feeding: Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously Camera: 2400W High ResolutionSLR Camera
Light Source System: None Cutting Function: Double Coordinate System Large Vision Contour Recognition Cutting
Language: 15 Languages Including Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian And Polish Accessories: Wireless Handheld Box, RD-APP And RD-WIFI
Highlight:

Double Track Oscillating Knife Cutting Controller

,

Oscillating Knife Cutting Control Panel

,

16 Axis Oscillating Knife Cutting Controller

16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM
Product Overview

Ruida Controller Large Visual Oscillating Knife Cutting Controller Double Track RDD6584U-DFM

Attribute Value
Model Double track panoramic large vision
Axis 16
Operating system Win7, Win8, Win10, 32-bit or 64-bit
Tool vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Camera 2400W high resolution SLR camera
Light source system None
Cutting function Double coordinate system large vision contour recognition cutting
Language 15 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian and Polish
Accessories Wireless handheld box, RD-APP and RD-WIFI
Product Description

The RDD6584U-DFM, a dual coordinate system tool cutting controller independently developed by Ruida technology, boasts a unique tool direction following control function. This controller amalgamates processing techniques for a variety of tools, including vibrating cutters, circular cutters, milling cutters, pressing wheels, and more.

Technical Specifications
Parameter RDD6584U-DFM
Model Double track panoramic large vision
Axis 16
Communication interface Ethernet, USB and WIFI (optional)

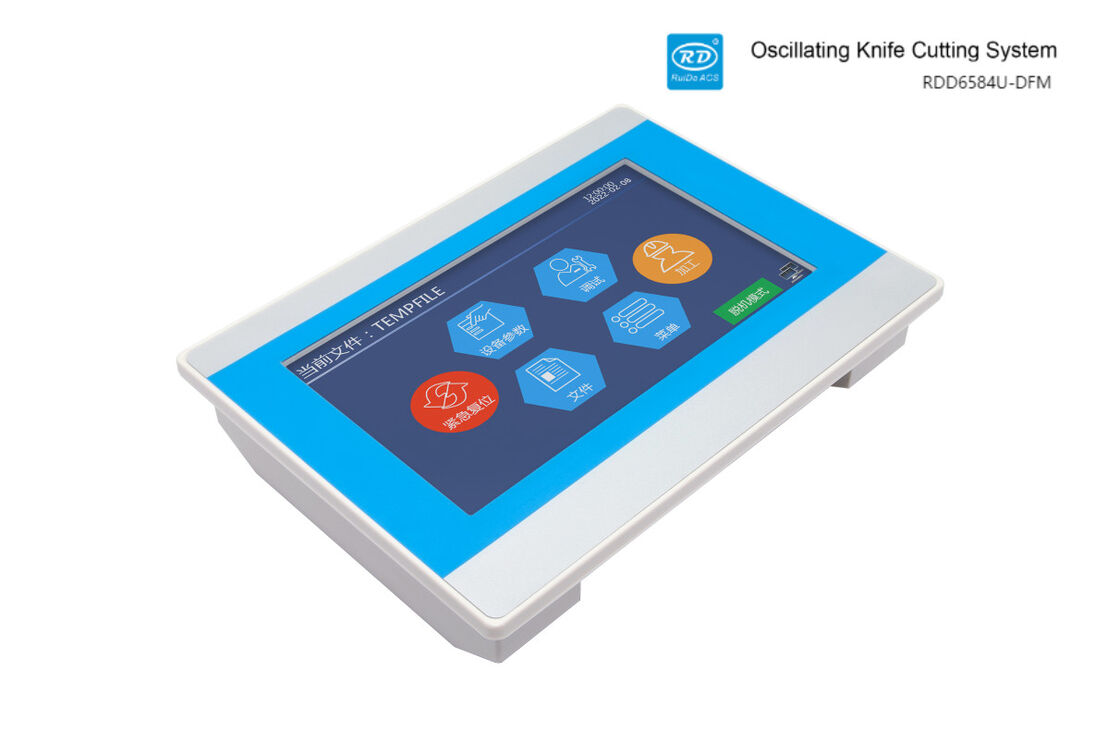

Panel 7'' touch screen, support parameter modification, static preview and dynamic display of graphics
Installment encryption Support
Onboard clock Support
Firmware upgrade Remote upgrade of panel and mainboard program
Software VCutWorks+RDVisionWorks-Vcut
Key Features
  • Dual Coordinate System
    • Asynchronous Processing: Supports dual beams (dual Y axes) or double cantilevers (dual X axes)
    • Synchronous Processing: All coordinate systems can operate in synchronous mode, significantly improving productivity
  • Integrated Tool Processing Methods
    • Vibrating Cutter
    • Circular Cutter
    • Milling Cutter
    • Pressing Wheel
  • Advanced Cutting Functions
    • Automatic Feeding
    • Ultra-Wide Segmentation Cutting
    • Circular Punching
    • V-Shaped Punching
    • Brush Processing
    • Red Light Positioning
  • Vision Positioning Capabilities
    • Mark Point Vision Positioning Cutting
    • Large Format Panoramic Visual Cutting
    • Projection Cutting
16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 0
Application Fields
  • Textiles and Clothing
  • Upholstery and Furniture
  • Digital Printing and Advertising
  • Curtain Fabrics
  • Luggage and Accessories
  • Footwear Production
16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 1
Software

VCutWorks+RDVisionWorks-Vcut

16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 2
Product Certification
16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 3
Shipping and Payment
16 Axis Double Track Oscillating Knife Cutting Controller Ruida RDD6584U-DFM 4
