Ruida 8 Axis Oscillating Knife Cutting Controller RDD6584G Cutting Tool Controller

Large Image : Ruida 8 Axis Oscillating Knife Cutting Controller RDD6584G Cutting Tool Controller

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, RoHS, FCC
Model Number:	RDD6584G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida 8 Axis Oscillating Knife Cutting Controller RDD6584G Cutting Tool Controller

Description

Model:	Ordinary Single Track	Axis:	Eight
Input And Output:	32/28	Communication Interface:	Ethernet, USB And WIFI (optional)
Panel:	7''touch Screen, Support Parameter Modification, Static Preview And Dynamic Display Of Graphics	Tool:	Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning
Feeding:	Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously	Camera:	None
Light Source System:	None	Cutting Function:	Ordinary Cutting
Highlight:	Oscillating Knife Cutting Controller RDD6584G , Oscillating Knife Cutting Machine Controller , Ruida Cutting Tool Controller

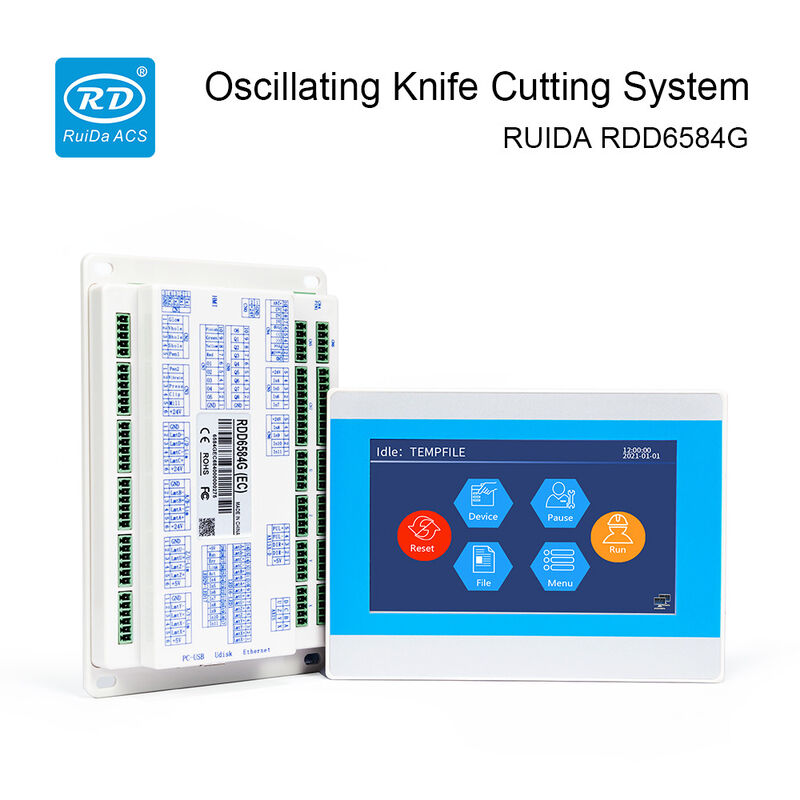

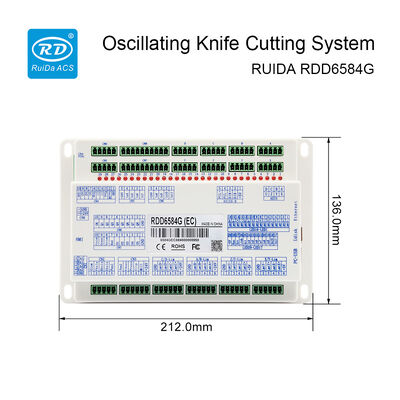

Ruida 8 Axis Oscillating Knife Cutting Controller RDD6584G

Product Description

The Ruida RDD6584G is an independently developed cutting tool controller with cutting edge following control function. It integrates processing for vibrating cutters, circular cutters, milling cutters, rollers and other tools, along with feeding, circular punching, V-shaped punching, brush processing, and red light positioning functions.

Technical Specifications

Parameter	RDD6584G
Model	Ordinary model
Axis	8
Input and output	32/28
Communication interface	Ethernet, USB and WIFI (optional)

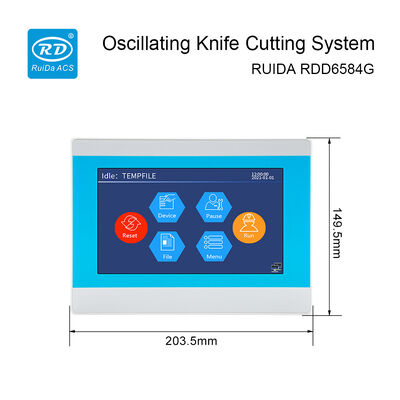

Panel	7" touch screen, supports parameter modification, static preview and dynamic display of graphics
Tool	Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding	Supports X/Y/U axis feeding independently or Y and U axes feeding synchronously
Operating system	Win7, Win8, Win10, 32-bit or 64-bit
Language	15 languages including English, Chinese, French, Russian, and more

Key Features

High response tool direction follow control with multiple tool processing methods
Integration of vibration knife, round knife, milling cutter, press wheel, and other processing methods
Supports single XY axis processing, double XY axes asynchronous processing and double tool heads synchronous processing
Supports Mark point positioning cutting, large-format panoramic visual cutting and projection cutting
