Eight Axis Panoramic Vision Oscillating Knife Cutting Controller RDD6584G-DFM

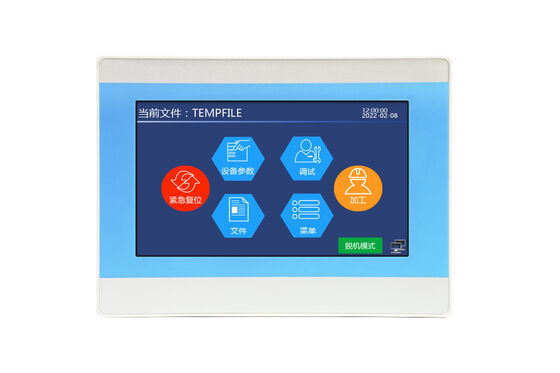

Large Image : Eight Axis Panoramic Vision Oscillating Knife Cutting Controller RDD6584G-DFM

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDD6584G-DFM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Eight Axis Panoramic Vision Oscillating Knife Cutting Controller RDD6584G-DFM

Description

Model:	Single Track Panoramic Large Vision	Axis:	8
Input And Output:	32/28	Communication Interface:	Ethernet, USB And WIFI (optional)
Panel:	7''touch Screen, Support Parameter Modification, Static Preview And Dynamic Display Of Graphics	Tool:	Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning
Feeding:	Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously	Camera:	2400W High ResolutionSLR Camera
Light Source System:	None	Cutting Function:	Large Vision Contour Recognition Cutting
Highlight:	Panoramic Oscillating Knife Cutting Controller , Cutting Controller RDD6584G-DFM , Eight Axis Oscillating Knife Cutting Controller

Eight Axis Panoramic Vision Oscillating Knife Cutting Controller RDD6584G-DFM

The RDD6584G-DFM is an advanced cutting tool controller designed for versatility and precision in machining processes. It features cutting edge following control function, allowing adaptation to various cutting tools while integrating multiple processing capabilities.

Technical Specifications

Attribute	Value
Model	Single track panoramic large vision
Axis	8
Input and output	32/28
Communication interface	Ethernet, USB and WIFI (optional)
Panel	7" touch screen, supports parameter modification, static preview and dynamic display of graphics
Tool	Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding	Supports X/Y/U axis feeding independently or Y and U axes feeding synchronously

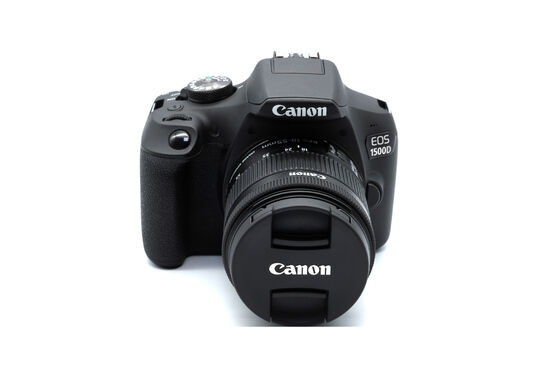

Camera	2400W high resolution SLR camera
Light source system	None
Cutting function	Large vision contour recognition cutting

Key Features

High response tool direction follow control for rapid and precise adjustments
Integration of multiple processing methods including vibration knife, round knife, milling cutter, and more
Versatile processing including single XY axis processing, double XY axes asynchronous processing
Supports various cutting methodologies including Mark point positioning cutting and large-format panoramic visual cutting
Remote upgrade capability for panel and mainboard program
Supports 15 languages for international operation

Application Fields

Mainly applied in non-metal cutting industries including clothing, sofa manufacturing, digital printing, advertising, curtains, bags, shoes, and related fields.

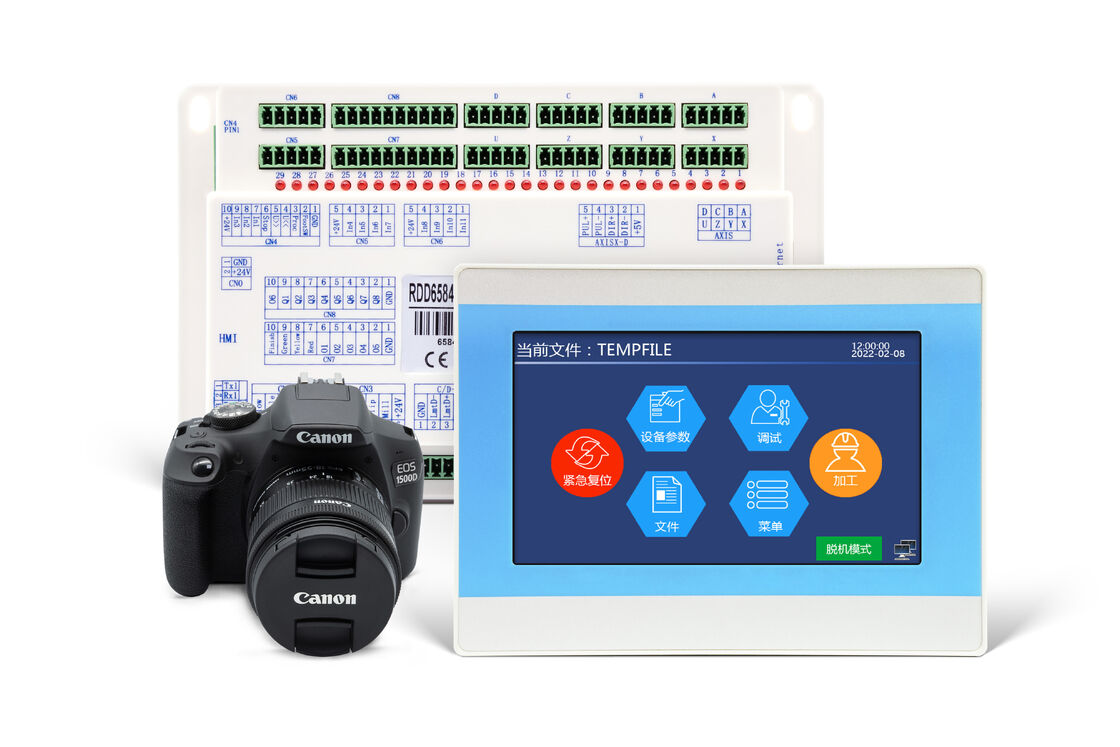

Ruida RDD6584G-DFM controller in operation

Software

VCutWorks+RDVisionWorks-Vcut

VCutWorks software interface

Product Certification

Ruida product certifications

Shipping and Payment

Ruida product packaging and shipping
