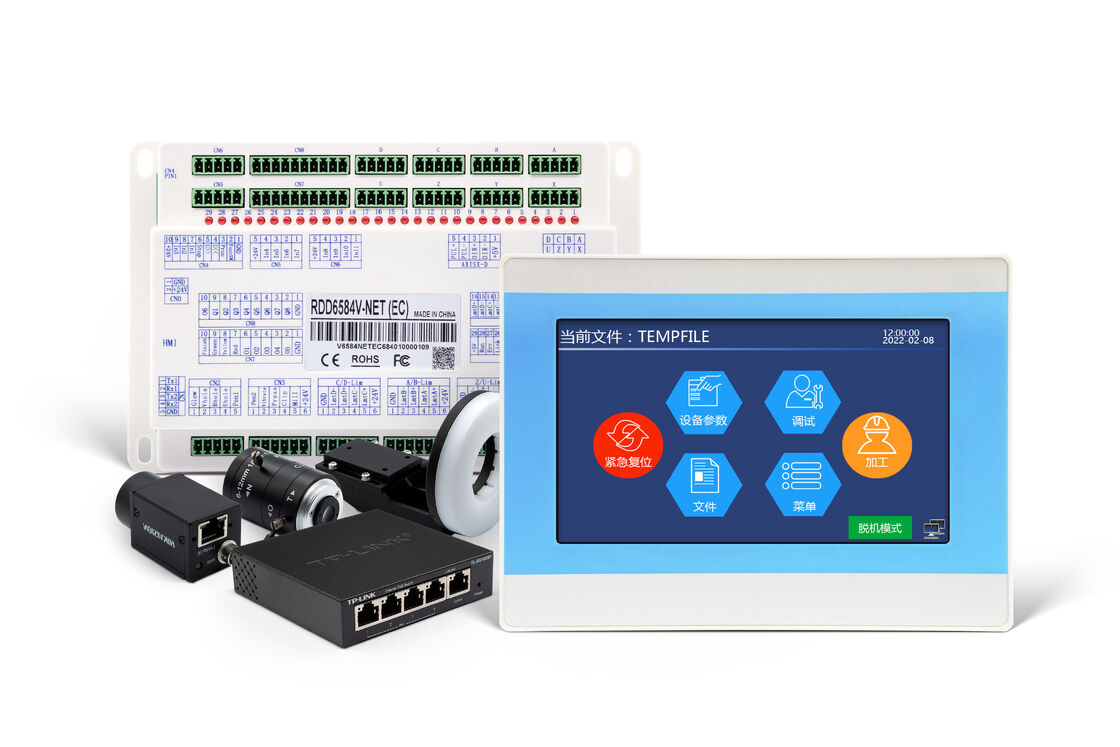

Ruida RDD6584V-NET Oscillating Knife Controller with Vision Positioning

Large Image : Ruida RDD6584V-NET Oscillating Knife Controller with Vision Positioning

Product Details:

Place of Origin:	China
Brand Name:	Ruida
Certification:	CE, FCC, RoHS
Model Number:	RDD6584V-NET

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable, contact us
Packaging Details:	Carton
Delivery Time:	2-3 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now Chat Now

Ruida RDD6584V-NET Oscillating Knife Controller with Vision Positioning

Description

Model:	Mark Point Vision Positioning Cutting Model	Axes:	8
Input And Output:	32/28	Communication:	Ethernet, USB And WIFI (optional)
Panel:	7''touch Screen, Support Parameter Modification, Static Preview And Dynamic Display Of Graphics	Tool:	Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning
Feeding:	Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously	Camera:	Network Interface Camera, 1.3 And 5 Megapixels Are Available
Light Source System:	Red And White Light Source Are Available	Cutting Function:	Mark Point Vision Positioning Cutting
Highlight:	RDD6584V-NET Controller , Single Beam Oscillating Knife Cutter Controller , Oscillating Cutting Machine Control System

Ruida RDD6584V-NET Oscillating Knife Controller with Vision Positioning

Single Beam Small Vision Oscillating Knife Cutting Control System RDD6584V-NET Controller

Product Specifications

Attribute	Value
Model	Mark point vision positioning cutting model
Axes	8
Input and output	32/28

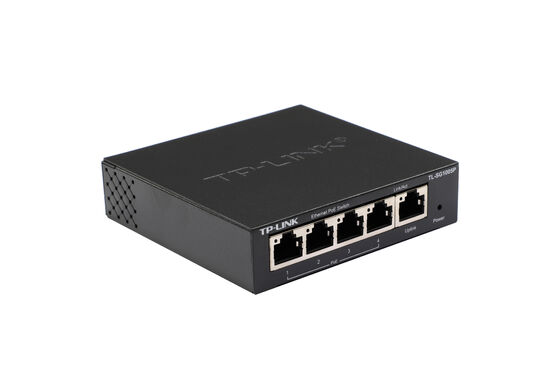

Communication	Ethernet, USB and WIFI (optional)

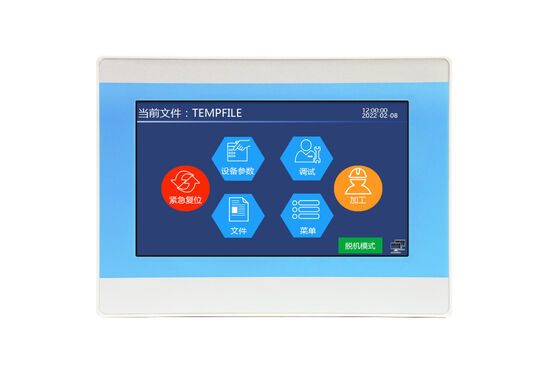

Panel	7" touch screen, support parameter modification, static preview and dynamic display of graphics
Tool	Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding	Support X/Y/U axis feeding independently or Y and U axes feeding synchronously

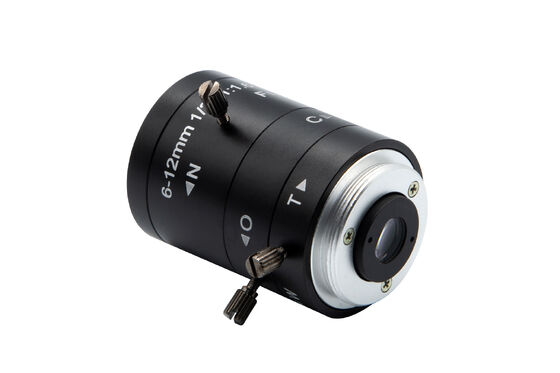

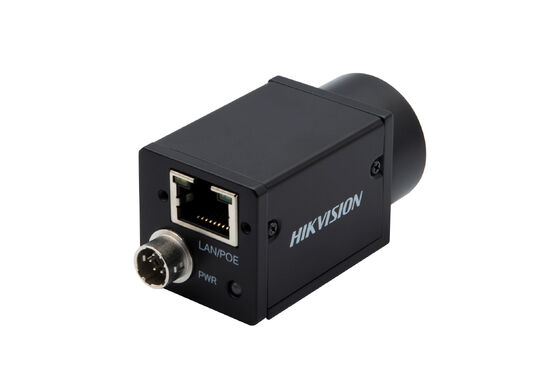

Camera	Network interface camera, 1.3 and 5 megapixels are available

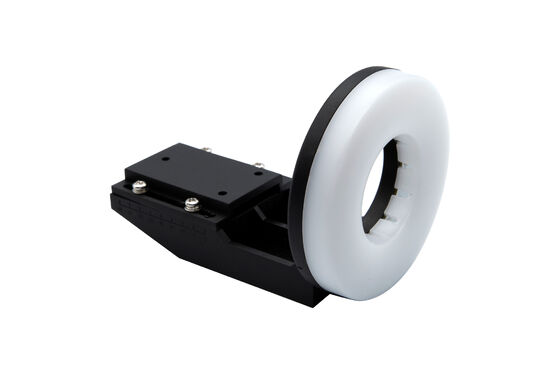

Light source system	Red and white light source are available
Cutting function	Mark point vision positioning cutting

Product Overview

RDD6584V-NET is an independently developed cutting tool controller with cutting edge following control function, integrating the processing of vibrating cutters, circular cutters, milling cutters, rollers and other tools, along with feeding, circular punching, V-shaped punching, brush processing, and red light positioning functions.

Key Features

High response tool direction follow control ensures rapid and precise adjustments in tool direction
Integration of multiple processing methods including vibration knife, round knife, milling cutter, press wheel, and various punching options
Versatile processing capabilities including single XY axis processing, double XY axes asynchronous processing, and double tool heads synchronous processing
Supports various cutting methodologies including Mark point positioning cutting, large-format panoramic visual cutting, and projection cutting
Remote upgrade capability for both panel and mainboard programs
Supports 15 languages for international usability

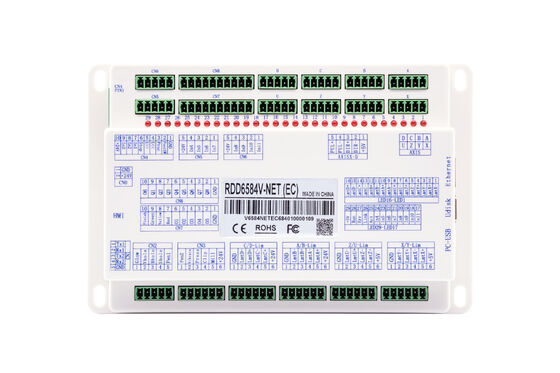

RDD6584V-NET Controller front view

RDD6584V-NET Controller side view

Application Fields

Mainly applied in non-metal cutting industries including clothing, sofa manufacturing, digital printing, advertising, curtains, bags, shoes, and related fields.
